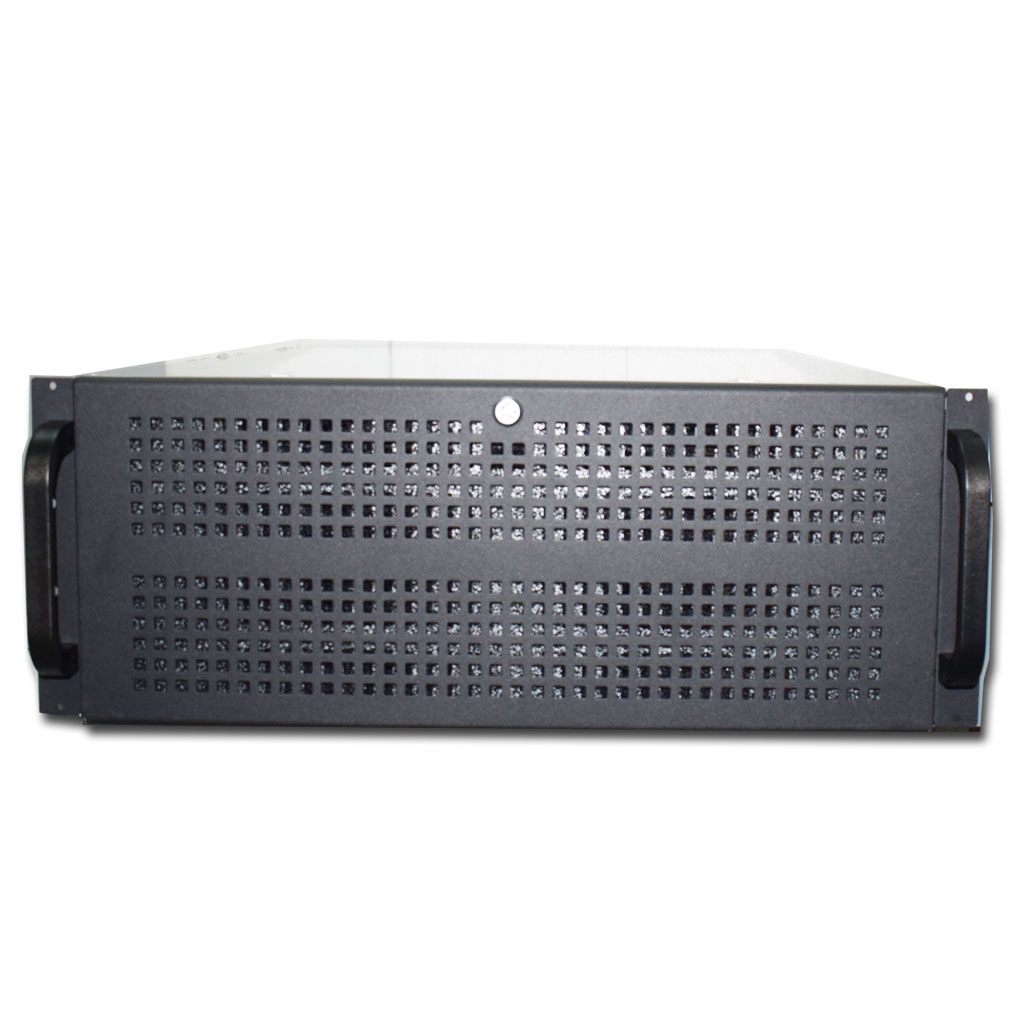

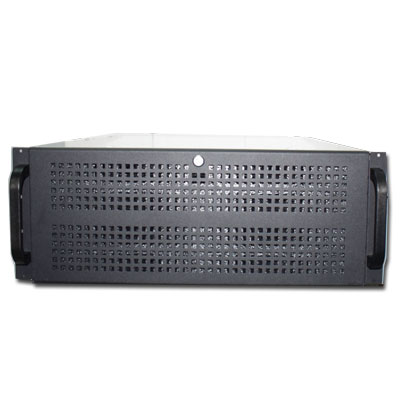

RM-4002

4U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2121B
RM-2142A
RM-23808
RM-23524
RM-23824
RM-25324
RM-3001
RM-3003
RM-3161B
IC-610
RM-4001
RM-4007
RM-4081
RM-4081E
RM-423
RM-4241B
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-4002
Type 4U Rack Mount
Mother Board Form Factor ATX - 12" * 13"
Dimension (D*W*H) 665 * 435 * 180 mm
Carton Size 850 * 580 * 270 mm
Drive Bays Ext. 5.25"
Int. 3.5"
Int. 2.5"		   2
10
  4
Front I/O Ports 1 * USB 2.0, 1 * USB 3.0
Cooling Fans Standard 2 * 12 cm front fan,
                 3 * 12 cm Hotswappable middle fan,
                 2 * 8 cm rear fan
Rackmount Kit Standard
Color Black / Silver
Compatible SMPS FSP400-60GHC
FSP500-60GHC
FSP700-80PSA
FSP1000-50ABB
HPT2-1200M
FSP2000-52AGPB1
FSP500-60MRB 		FSP550-50FS
FSP800-50FS
FSP1200-50FS
GW-CRPS1600D
GW-CRPS2000D
GW-CRPS2700D
Net Weight 14 KG
