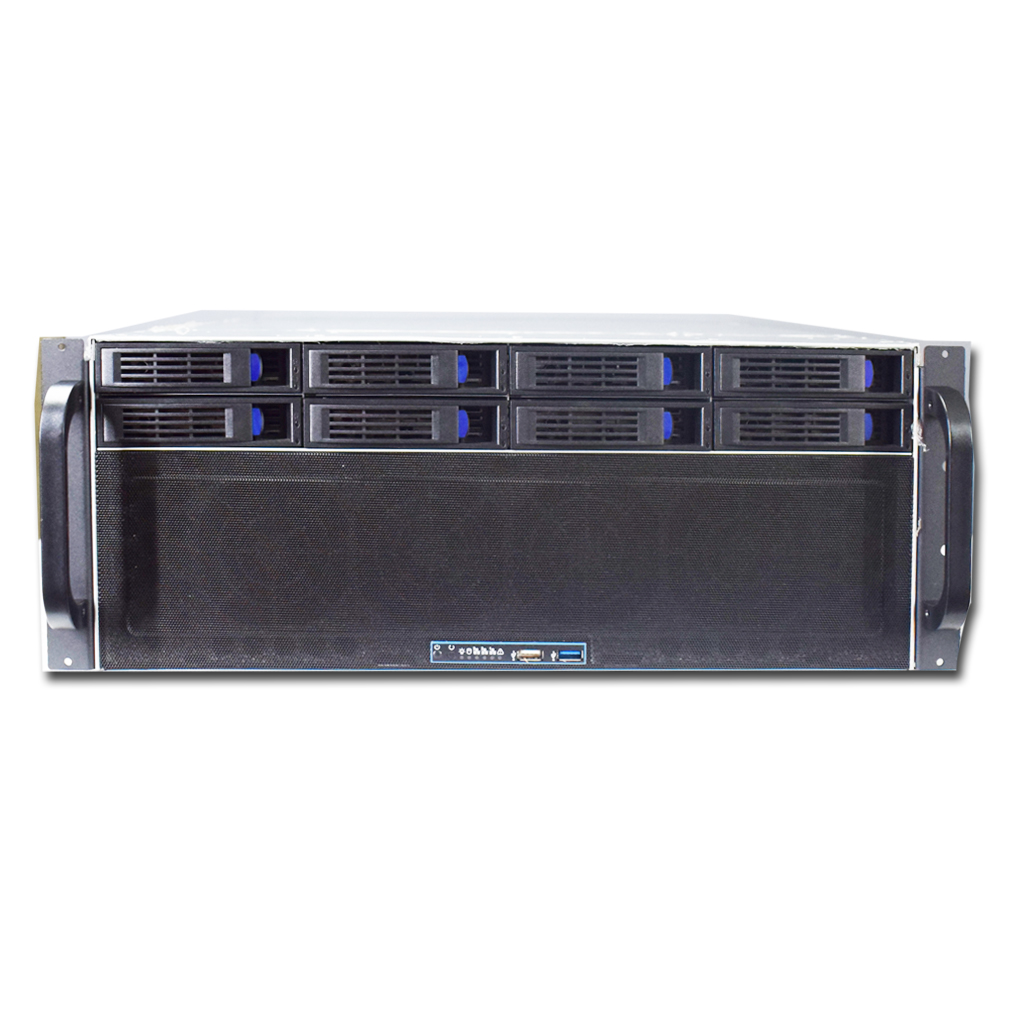

RM-4081

4U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2121B
RM-2142A
RM-23808
RM-23524
RM-23824
RM-25324
RM-3001
RM-3003
RM-3161B
IC-610
RM-4001
RM-4002
RM-4007
RM-4081E
RM-423
RM-4241B
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-4081
Type 4U Rack Mount
Mother Board Form Factor Ext. ATX - 15" * 13"
Dimension (D*W*H) 652 * 435 * 175 mm
Carton Size 840 * 570 * 260 mm
Drive Bays 3.5" / 2.5" Hotswap Bays
2.5" Hotswap Facing Rear
 8
1

Front I/O Ports 1 * USB 2.0, 1 * USB 3.0

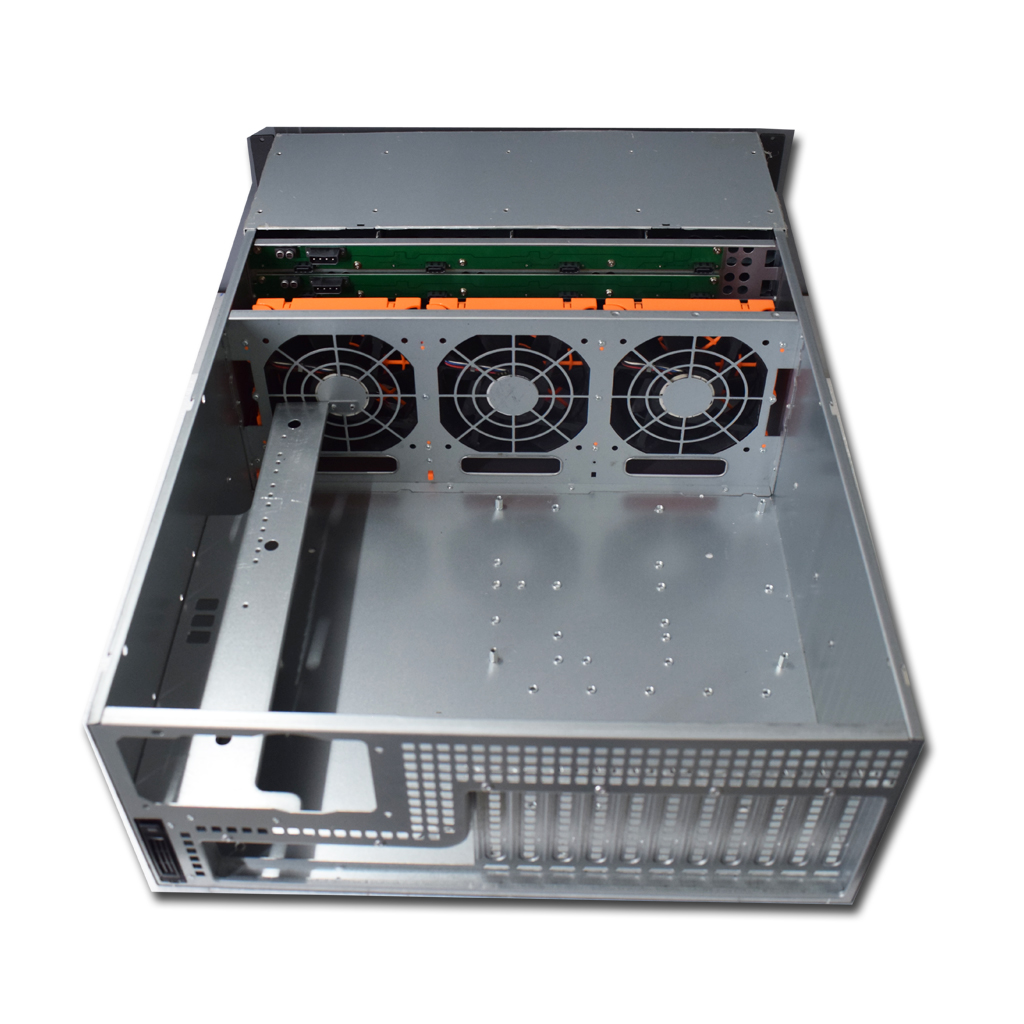

Cooling Fans Standard 3 * 12 cm Hotswappable fans
Optional 4 * 8 cm front fans
Rackmount Kit Standard
Backplane Connector 8 * Discrete SATA

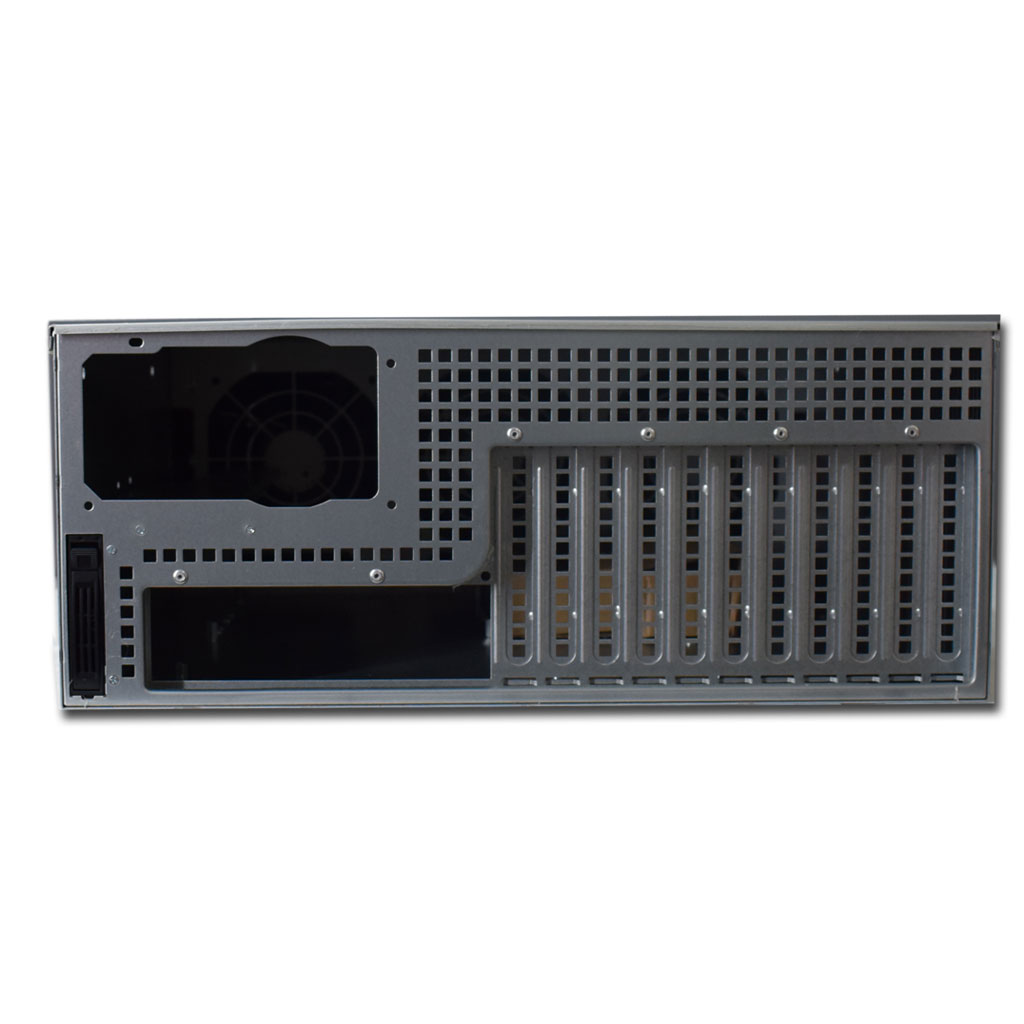

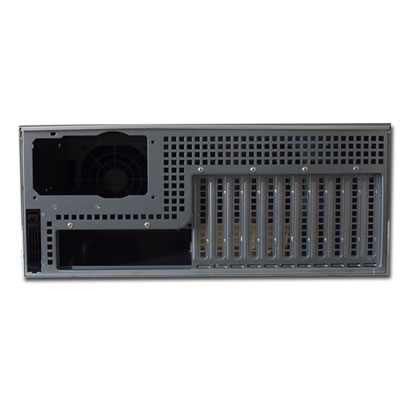

Rear Window 11 Slot High Profile
Color Black / Silver
Compatible SMPS FSP500-60GHC
FSP700-80PSA
FSP1000-50ABB
HPT2-1200M
FSP2000-52AGPB1
FSP550-50FS		 FSP800-50FS
FSP1200-50FS
GW-CRPS1600D
GW-CRPS2000D
GW-CRPS2700D
Net Weight 21.5 KG
