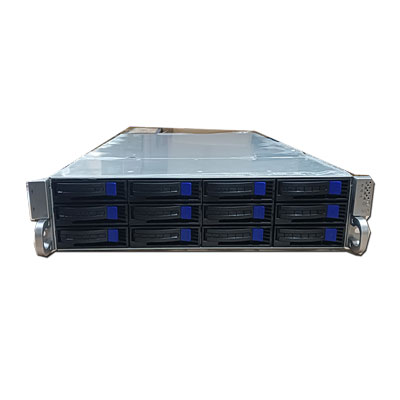

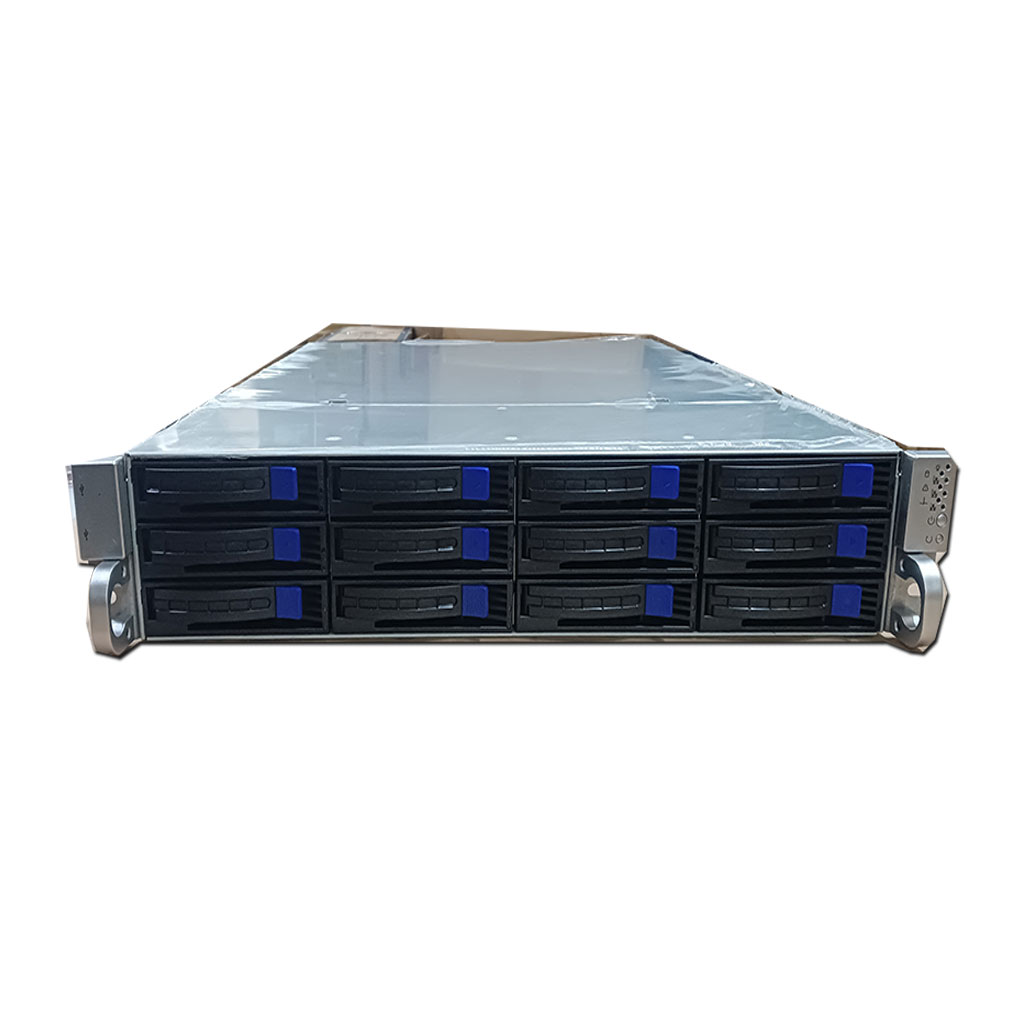

RM-2121B

2 Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2142A
RM-23808
RM-23524
RM-23824
RM-25324
RM-3001
RM-3003
RM-3161B
IC-610
RM-4001
RM-4002
RM-4007
RM-4081
RM-4081E
RM-423
RM-4241B
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-2121B
Type 2U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 13"
Dimension (D*W*H) 655 * 435 * 90 mm
Carton Size 840 * 570 * 200 mm
Drive Bays 2.5" / 3.5" SAS / SATA / NVMe HotSwap
Int. 2.5"  SATA
Int. 3.5" SATA		 Opt1
12
  2
  0		 Opt2
12
  0
  1

Cooling Fans Standard 8 cm Hotswappable fans         4
Front I/O Ports 2 * USB 2.0 / 3.0
Rackmount Kit Standard
Backplane Connectors


 Trimode Backplane
3 * Slim SAS 8654-4i for16 SAS / SATA
6 * Slim SAS 8654-8i for 16 NVMe
Rear Window Low Profile
Color Black / Silver
Compatible SMPS FSP500-50FDB
FSP850-50FGPH3
FSP800-50FS
FSP1200-50FS
GW-CRPS1600D
GW-CRPS2000D
GW-CRPS2700D
Net Weight  12.5 KG
Download PDF File
