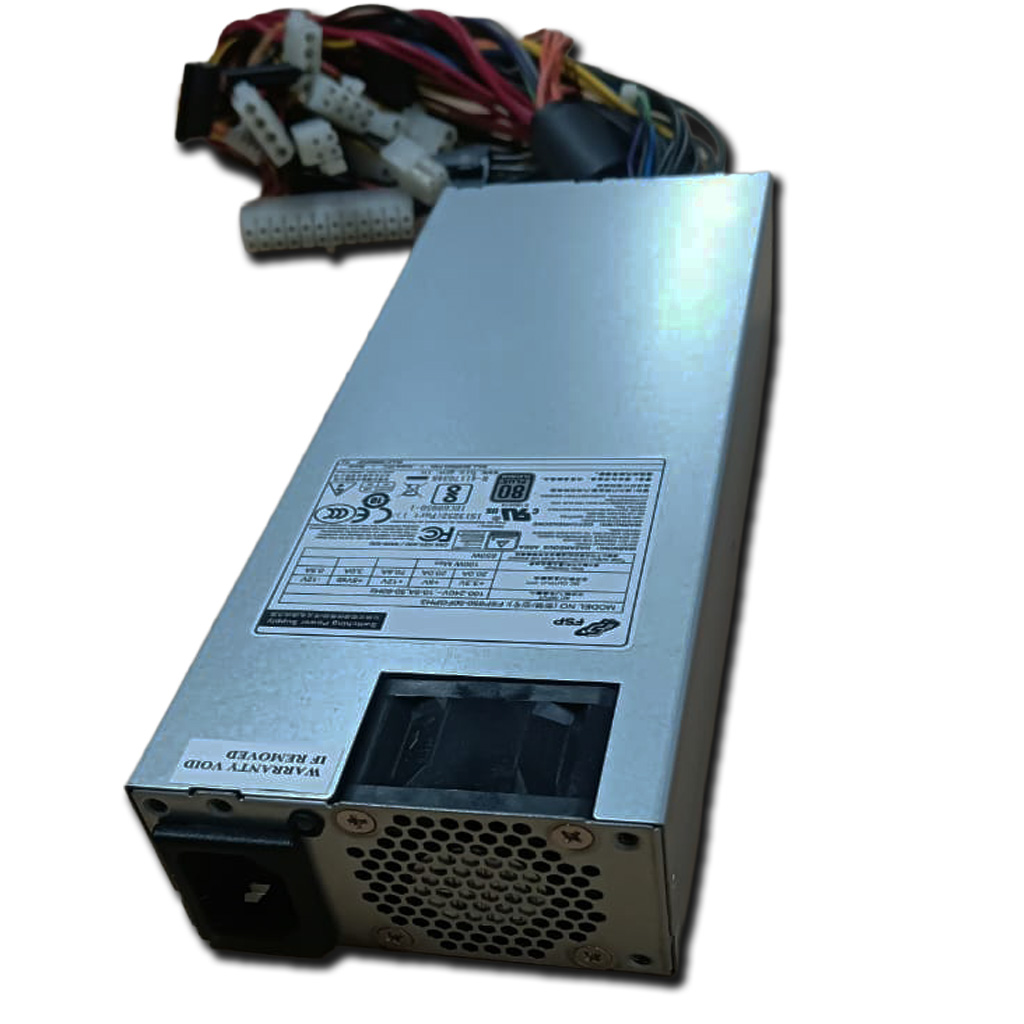

FSP850-50FGPH3 - Server SMPS

Specification Previous Page
Model Name	FSP850-50FGPH3
Size	1U Single / Flex ATX
Input Voltage	100 - 240 V
Connectors				Opt1	Opt2
	Mother Board Connector 24 Pins		-	1	1
	Core Voltage Connector 8 Pins		-	1	1
	Core Voltage Connector 4+4 Pins		-	1	1
	PCI Express Connector 6+2 Pins		-	1	1
	PCI Express Connector 6 Pins		-	1	1
	SATA Power Connector		-	4	2
	4 Pin Power Connector		-	4	2
	FDD Power Connector		-	1	1

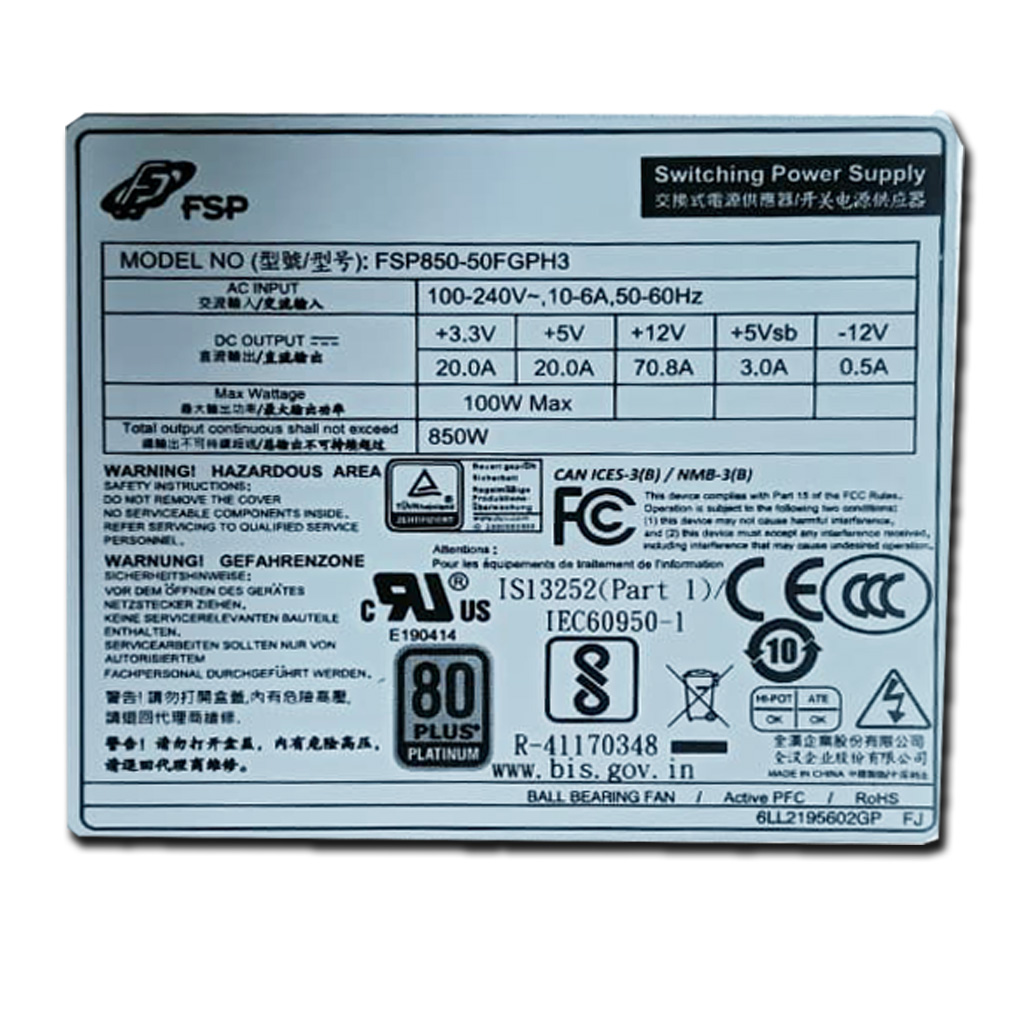

Ampere Rating	Voltage			Amperage
	+3.3 V		-	25.0A		Max. 100W
	+5 V		-	25.0A		Max. 100W
	+12 V		-	70.0A
	-12 V		-	0.5A
	+5 VSB		-	3.0A
Total Output	850 W
Compatible Chassis	RM-1004 RM-1021 RM-13310 RM-13604 RM-1042 RM-1044 RM-1044B RM-238A RM-2003	RM-2006 RM-2006 RM-2081 RM-2081A RM-2081B RM-2082AH RM-2082AN RM-2121B RM-2142A
