FSP500-60GHC - Single Server Chassis

Specification Previous Page

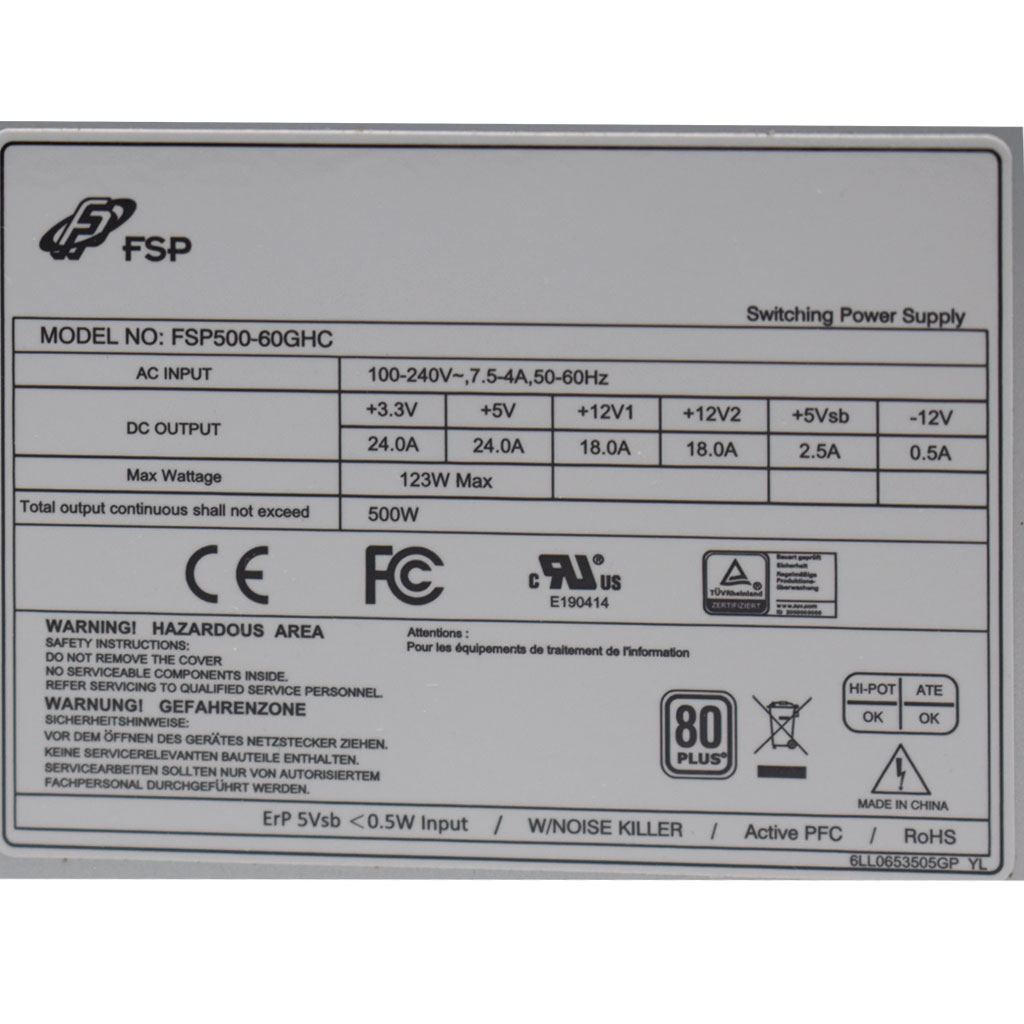

Model Name	FSP500-60GHC
Size	PS2 Single
Input Voltage	100 V - 240 V
Connectors	Mother Board Connector 20+4 Pins		-	1
	Core Voltage Connector 8 Pins		-	1
	Core Voltage Connector 4+4 Pins		-	1
	PCI Express Connector 6 Pins		-	1
	PCI Express Connector 6+2 Pins		-	1
	SATA Power Connector		-	5
	4 Pin Power Connector		-	4
	FDD Power Connector		-	1
Ampere Rating	Voltage			Amperage
	+3.3 V		-	24.0A	Max. 123W
	+5 V		-	24.0A	Max. 123W
	+12 V1		-	18.0A
	+12 V2		-	18.0A
	-12 V		-	0.8A
	+5 VSB		-	2.5A
Total Output	500 W
Compatible Chassis	HP-84B SR-105 SR-108 RM-2001 RM-2003 RM-2004 RM-2005 RM-3001	RM-3001 RM-3003 IC-610 RM-4001 RM-4002 RM-4007 RM-4081 RM-423
