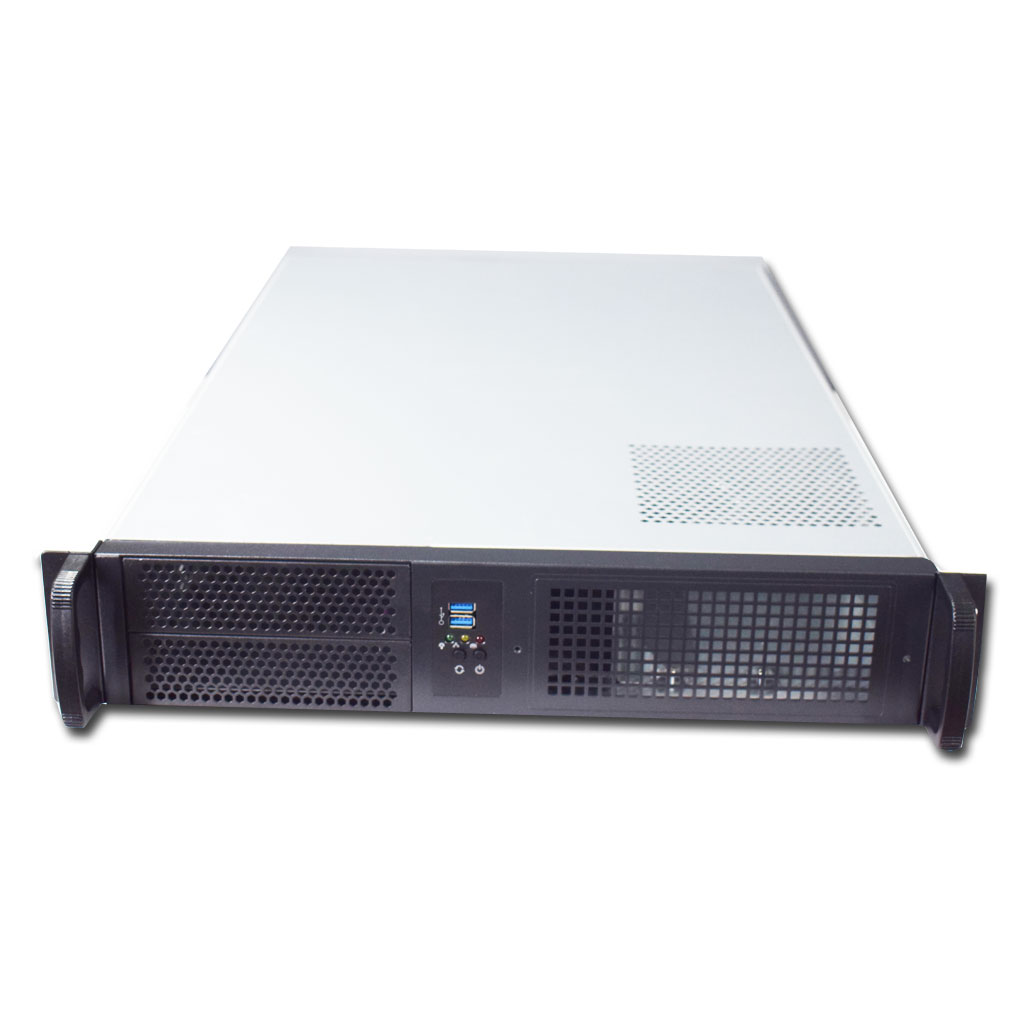

RM-2004

2U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2121B
RM-2142A
RM-23808
RM-23524
RM-23824
RM-25324
RM-3001
RM-3003
RM-3161B
IC-610
RM-4001
RM-4002
RM-4007
RM-4081
RM-4081E
RM-423
RM-4241B
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-2004
Type 2U Rack Mount
Mother Board Form Factor Ext. ATX 12" * 13"
Dimension (D*W*H) 660 * 435 * 175 mm
Carton Size 800 * 580 * 200 mm
Drive Bays Ext. 5.25"
Int. 3.5"
2
9
Cooling Fans Standard 4 * 8 cm middle fan
Front I/O Ports 2 * USB 2.0
Rackmount Kit Standard
Color Silver
Compatible SMPS FSP300-60GHC
FSP400-60GHC
FSP500-60GHC
FSP700-80PSA
Net Weight 11 KG
Special Features Universal Rear Window compatible with both full-height & LPF cards simultaneously
Download PDF File
