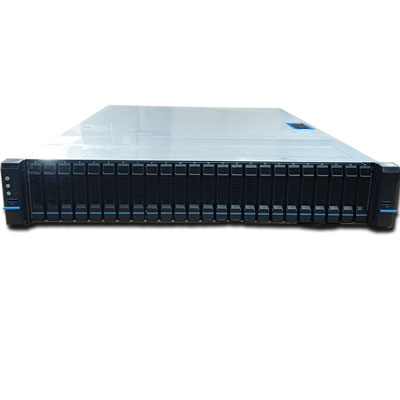

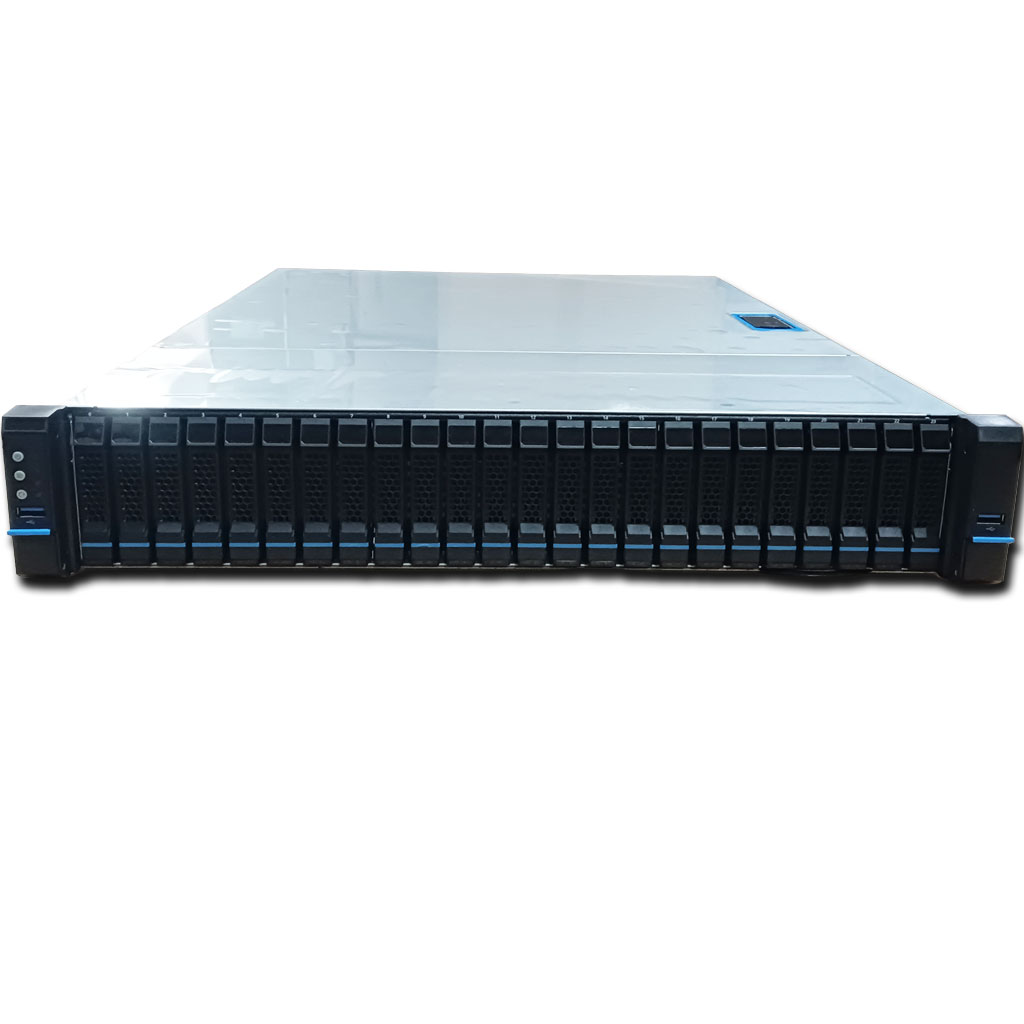

RM-23824

2U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2121B
RM-2142A
RM-23808
RM-23524
RM-25324
RM-3001
RM-3003
RM-3161B
IC-610
RM-4001
RM-4002
RM-4007
RM-4081
RM-4081E
RM-423
RM-4241B
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-23824
Type 2U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 13"
Dimension (D*W*H) 665 * 450 * 90 mm
Carton Size 825 * 600 * 194 mm
Drive Bays



   Opt1 Opt2 Opt3
2.5" SAS / SATA Hot Swap
  24  20 16
2.5"NVMe   0   4   8
Front I/O Ports 2 * USB 3.0

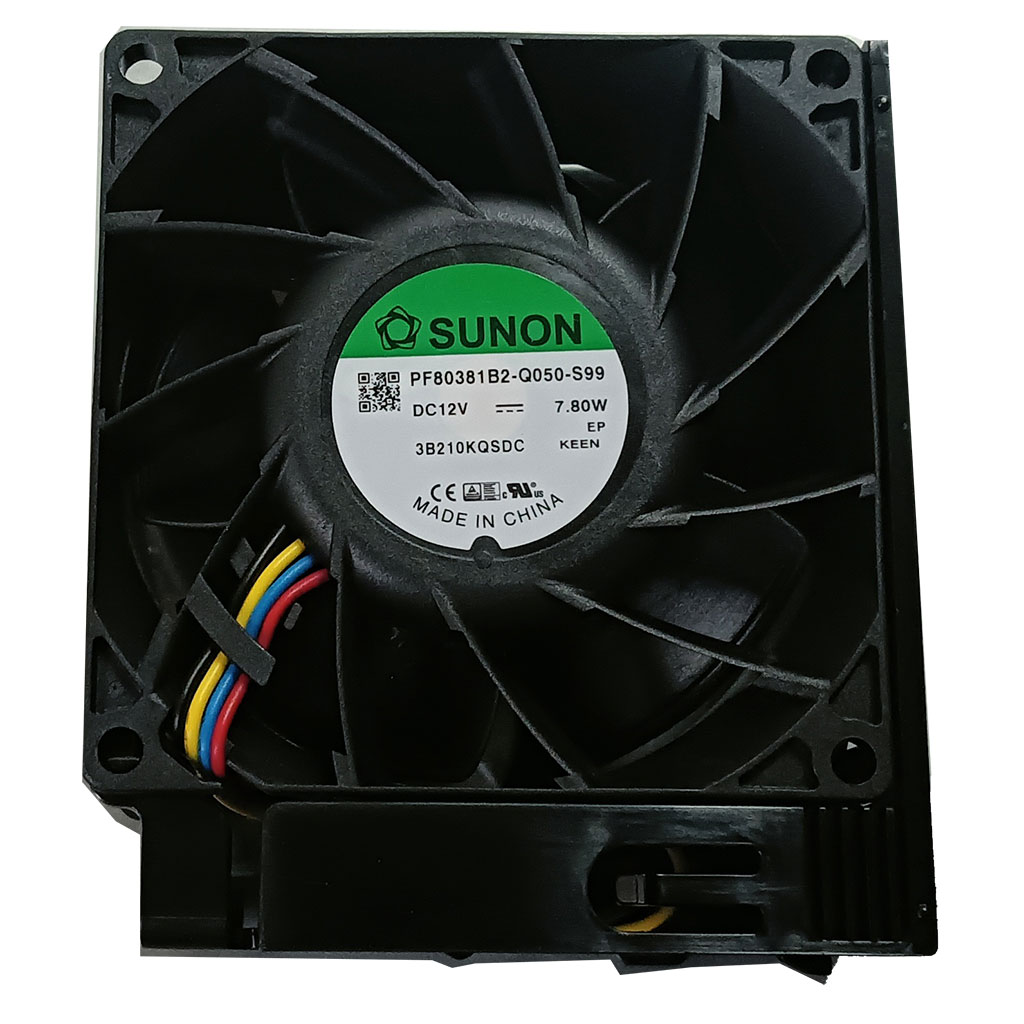

Cooling Fans 3 * 8 cm Hotswappable fans
Backplane Connector Mini SAS HD (SFF 8643) with 12G Expander Backplane
Rear Window Low Profile
Color Black / Silver
Compatible SMPS FSP550-50FS
FSP800-50FS
FSP1200-80FS
GW-CRPS1600D
GW-CRPS2000D
GW-CRPS2700D
Net Weight 13.8 KG
