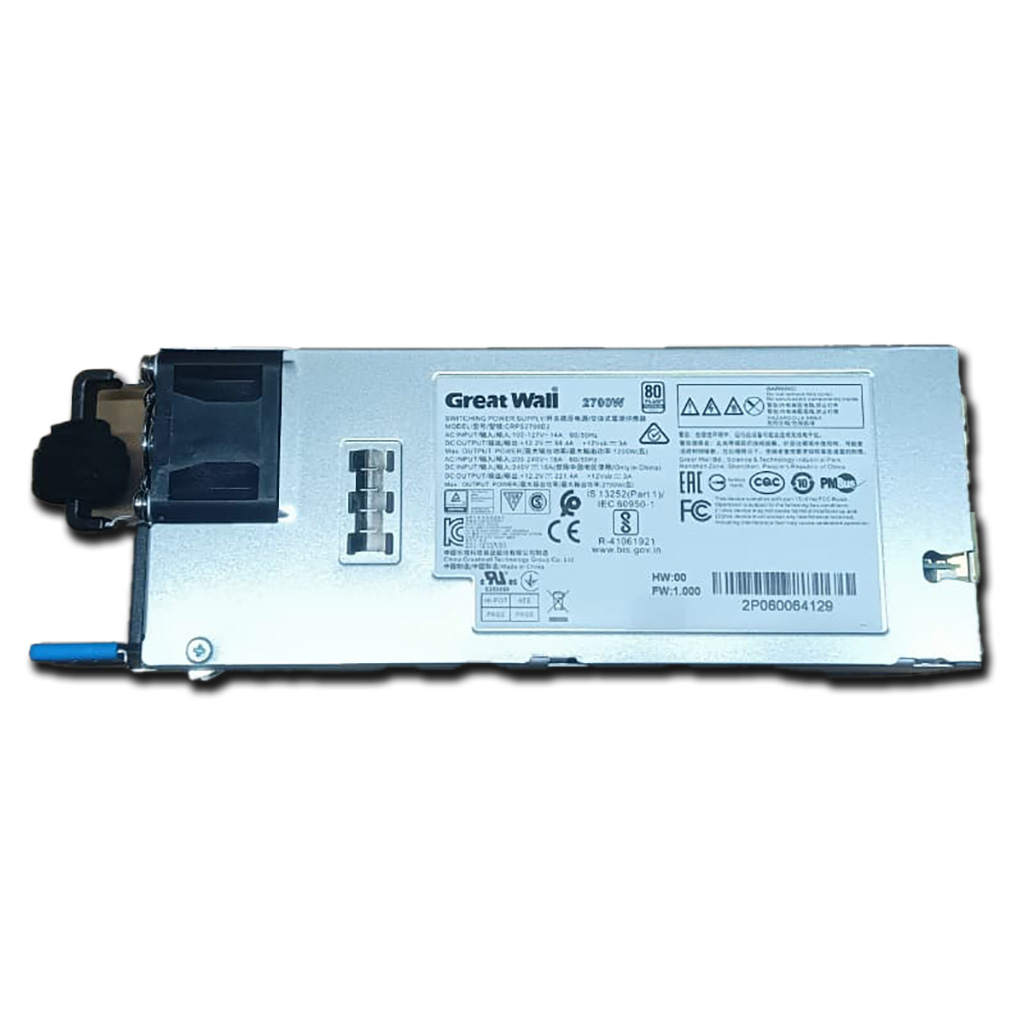

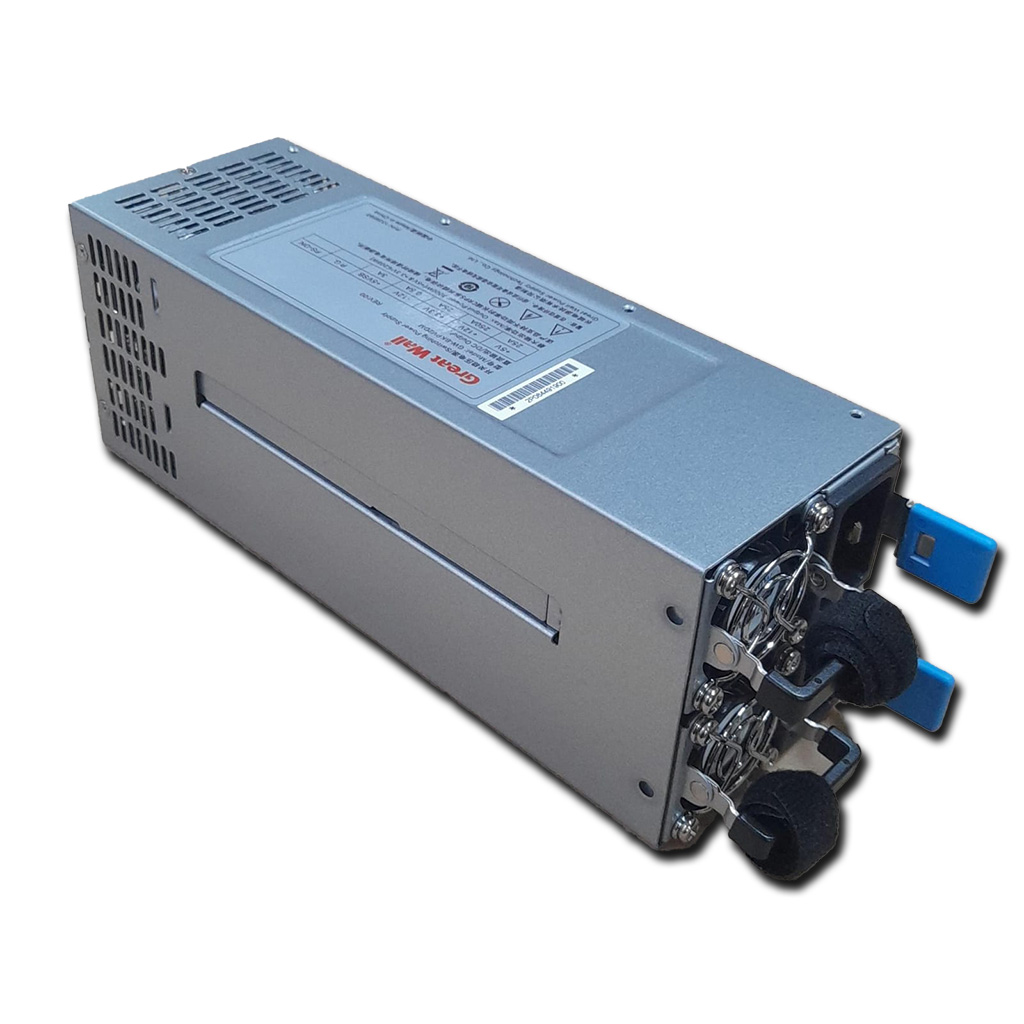

GW-CRPS2700D - Server SMPS

SpecificationPrevious Page
Model Name	GW-CRPS2700D
Size	2U CRPS 1+1
Input Voltage	100 - 240 V AC
Connectors	Mother Board Connector 20+4 Pins			-	1
	Core Voltage Connector 4+4 Pins			-	2
	Core Voltage Connector 8 Pins			-	2
	PCI Express Connector 6+2 Pins			-	8
	SATA Power Connector			-	4
	4 Pin Power Connector			-	8

Ampere and Voltage Rating	+3.3V			-	25.0A
	+5V			-	25.0A
	+12V			-	250.0A
	-12V			-	0.5A
	+5VSB			-	3.0A
Total Output	2700 + 2700 W
Compatible Chassis	SR-105 SR-108 TW-115 TW-125 RM-2003 RM-2081 RM-2081A RM-2081B	RM-2082AH RM-2082AN RM-2142A RM-23808 RM-23524 RM-3001 RM-423 RM-4002	RM-4081 RM-4081E RM-4262A RM-4382A RM-6502A RM-6622A
