Specification

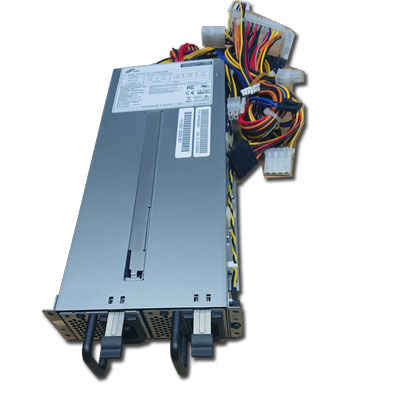

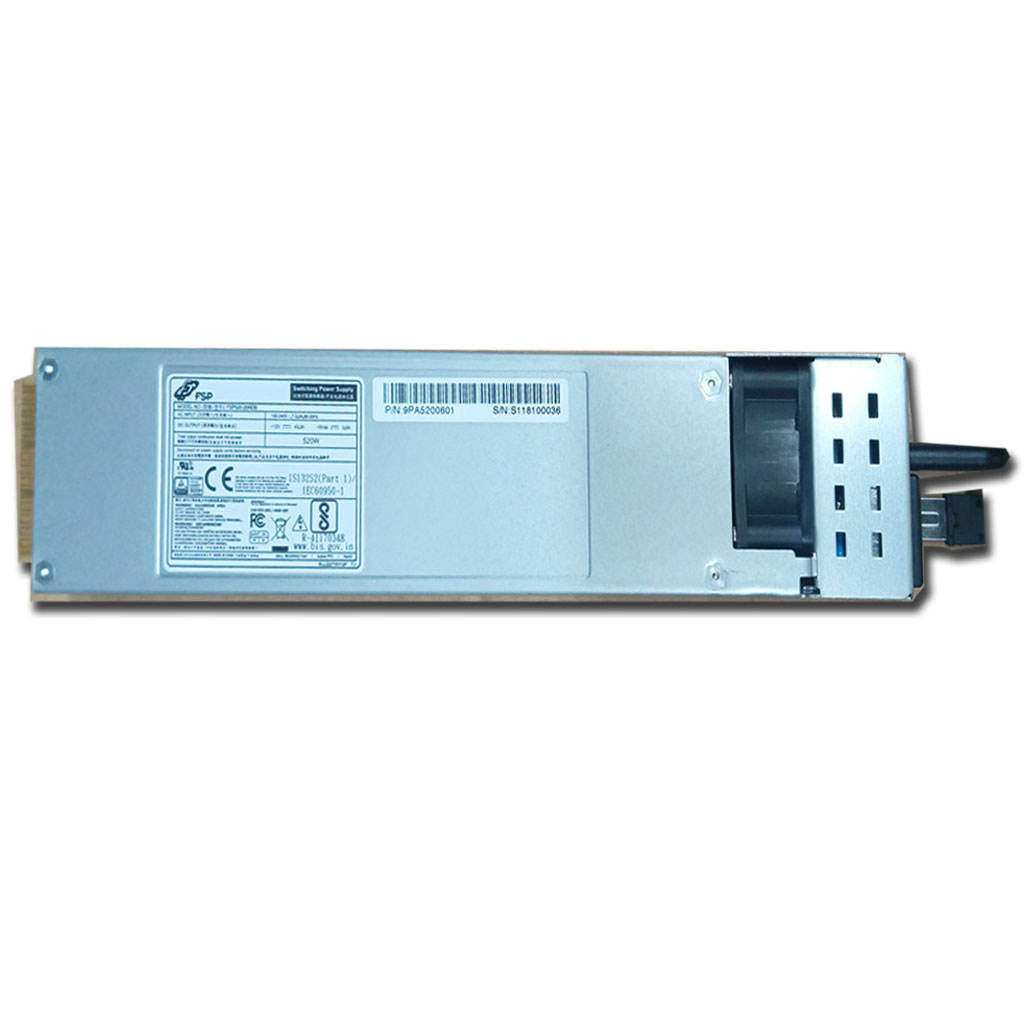

Model Name	FSP500-50RDB
Size	1U Redundant 1+1
Input Voltage	100 - 240 V
Connectors	Mother Board Connector 20+4 Pins	-	1
	Core Voltage Connector 8 Pins	-	1
	Core Voltage Connector 4+4 Pins	-	1
	SATA Power Connector	-	2
	4 Pin Power Connector	-	3
	FDD Power Connector	-	1

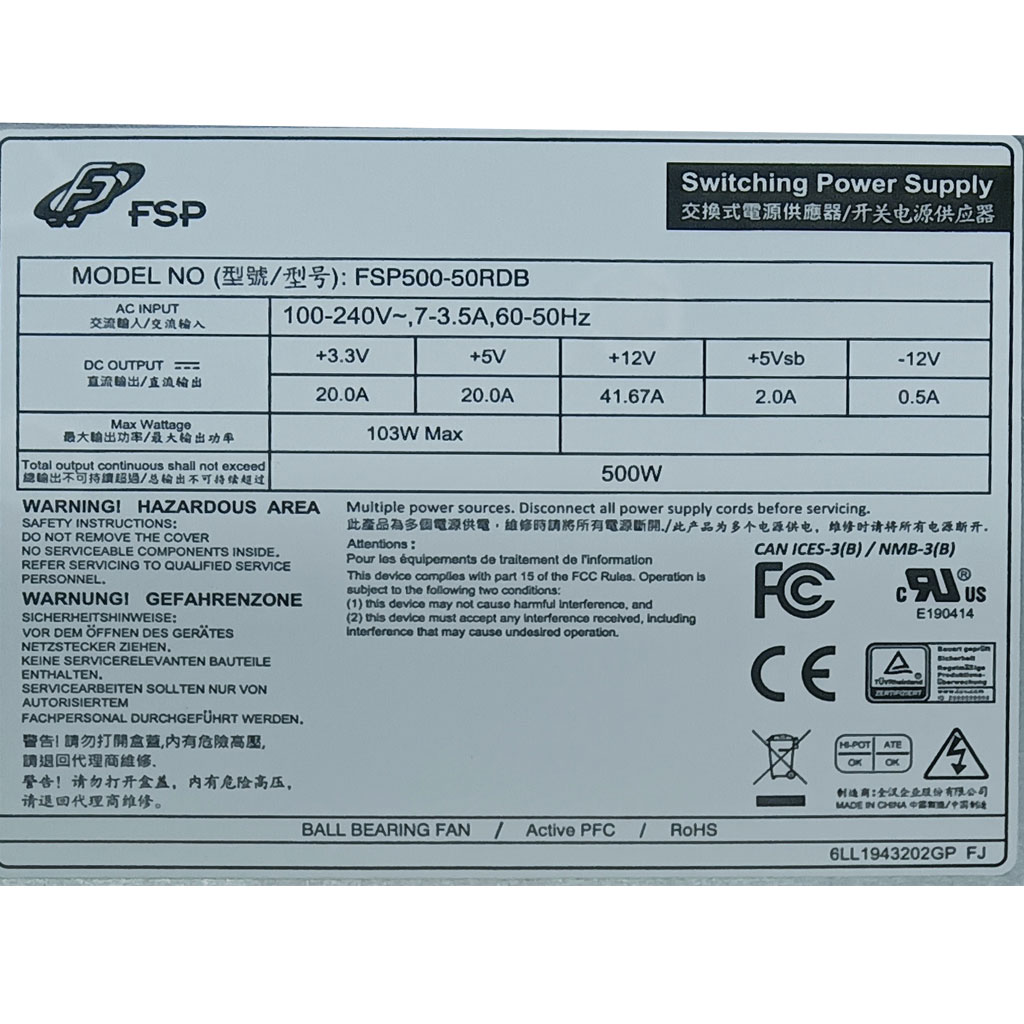

Ampere Rating	Voltage		Amperage
	+3.3 V	-	20.0A	Max. 103W
	+5 V	-	20.0A	Max. 103W
	+12 V	-	41.67A
	- 12 V	-	0.5A
	+5 VSB	-	2.0A
Efficiency	Meets 80 Plus Bronze Specification
Total Output	500W
Compatible Chassis	RM-1003 RM-1004 RM-1044B RM-13310 RM-13604 RM-2003 RM-2006
