SpecificationPrevious Page |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

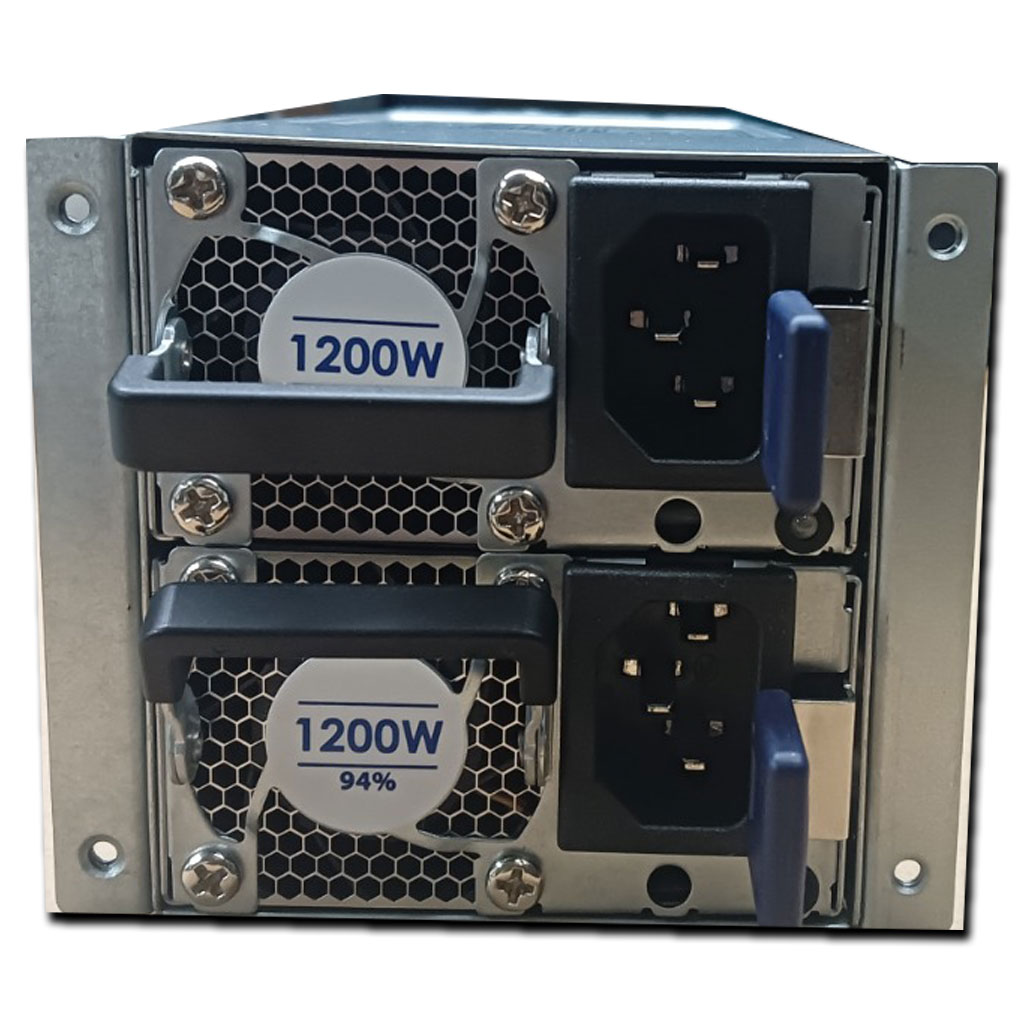

| Model Name | FSP1200-50FS | ||||||||||
| Size | 2U CRPS 1+1 | ||||||||||
| Input Voltage | 100 - 240 V | ||||||||||
| Connectors | Mother Board Connector 24 Pins |
- | 1 | ||||||||
| Core Voltage Connector 8 Pins | - | 1 | |||||||||
| PCI Express Connector 4+4 Pins | - | 1 | |||||||||
| PCI Express Connector 6 Pins | - | 1 | |||||||||
| PCI Express Connector 6+2 Pins | - | 1 | |||||||||
| SATA Power Connector | - | 7 | |||||||||
| 4 Pin Power Connector | - | 10 | |||||||||
| FDD Power Connector | - | 1 | |||||||||
| Ampere Rating | Voltage |
Amperage | |||||||||
| +3.3 V | - | 30.0A |  |
Max. 180W |
|||||||
| +5 V | - | 30.0A | |||||||||
| +12 V | - | 81.0A | |||||||||
| - 12 V | - | 0.3A | |||||||||
| +5 VSB | - | 5.0A | |||||||||
| Total Output | 1200 W | ||||||||||
| Compatible Chassis |
SR-105 SR-108 TW-115 TW-125 RM-2003 RM-2081 RM-2081A RM-2081B | RM-2082AH RM-2082AN RM-2142A RM-23808 RM-23524 RM-3001 RM-423 RM-4002 | RM-4081 RM-4081E RM-4262A RM-4382A RM-6502A RM-6622A | ||||||||
| Download PDF File | |||||||||||
