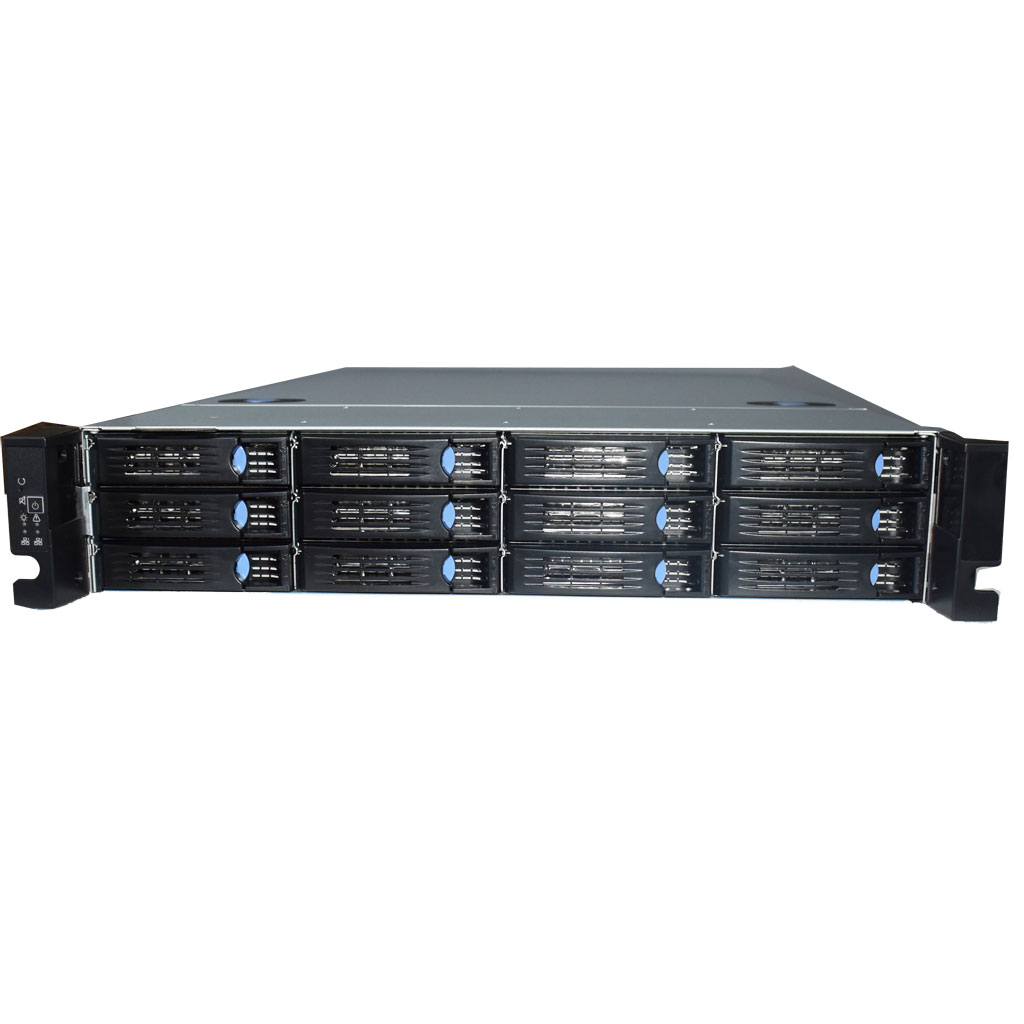

RM-23612

2U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-13304
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RMC2108-670-HS
RM-23608
RM-23608-12G
RM-23612-12G
RM-23524
RM-3001
RM-3003
RM-407
RM-4001
RM-4007
IC-610
RM-423
RM-4002
RM-4081
RM-42612E
RM-43348
RM-43812E
SpecificationPrevious Page
Model Name RM-23612
Type 2U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 13"
Dimension (D*W*H) 660 * 430 * 88 mm
Carton Size 795 * 605 * 180 mm
Drive Bays 3.5" / 2.5" SAS / SATA Hot Swap
 12
Cooling Fans 3 * 8 cm Hotswappable fans
Rackmount Kit Standard
Backplane Connector 3 * Mini-SAS (SFF 8087) 6G
Rear Window Low Profile
Color Black / Silver
Compatible SMPS FSP500-702UH
FSP850-50FGPH1
FSP550-50ERS
FSP800-50ERS
FSP1200-80ERS
Net Weight 11 KG
