SpecificationPrevious Page |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

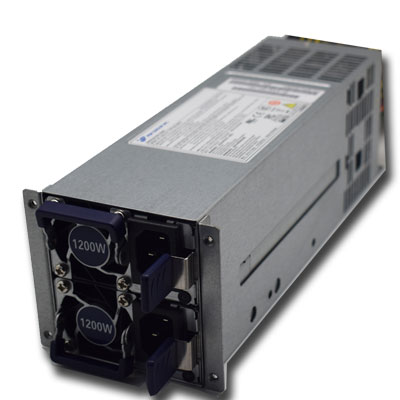

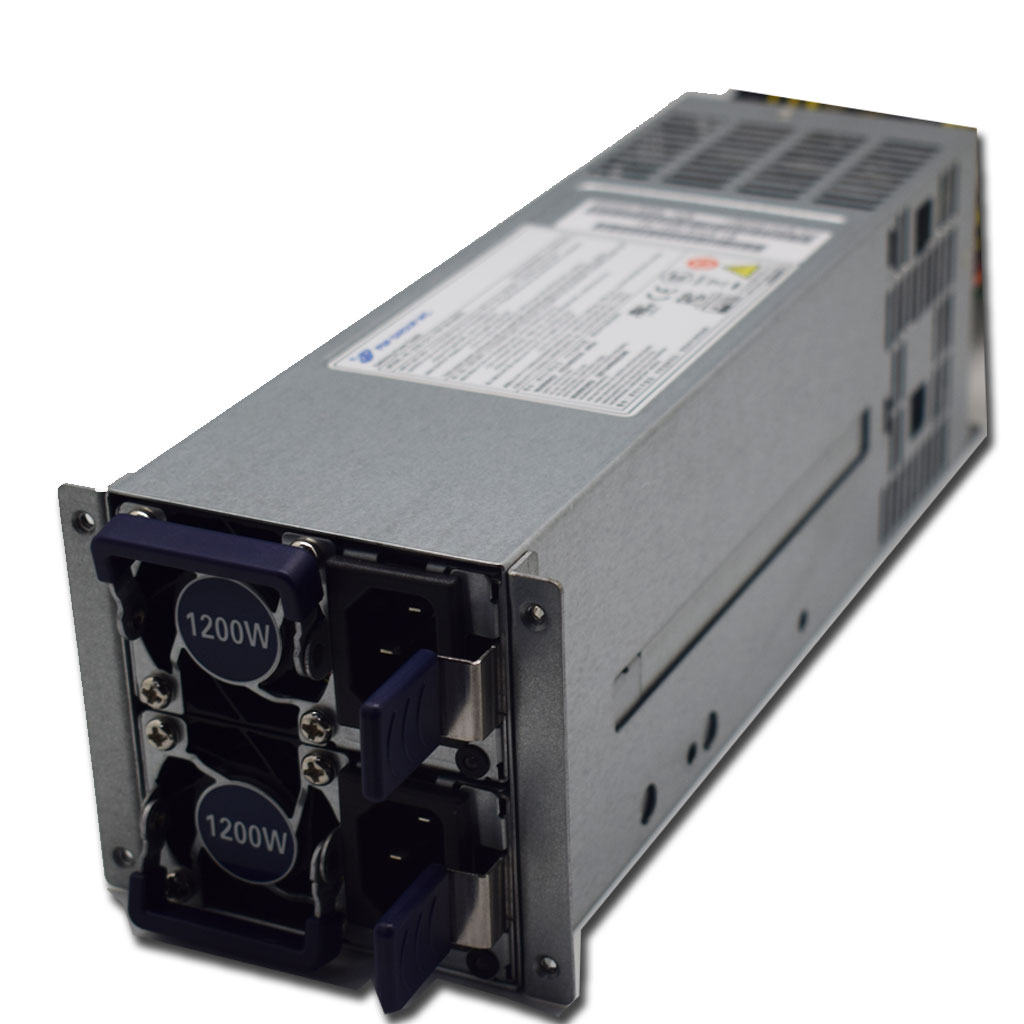

| Model Name | FSP1200-50ERS | |||||||||

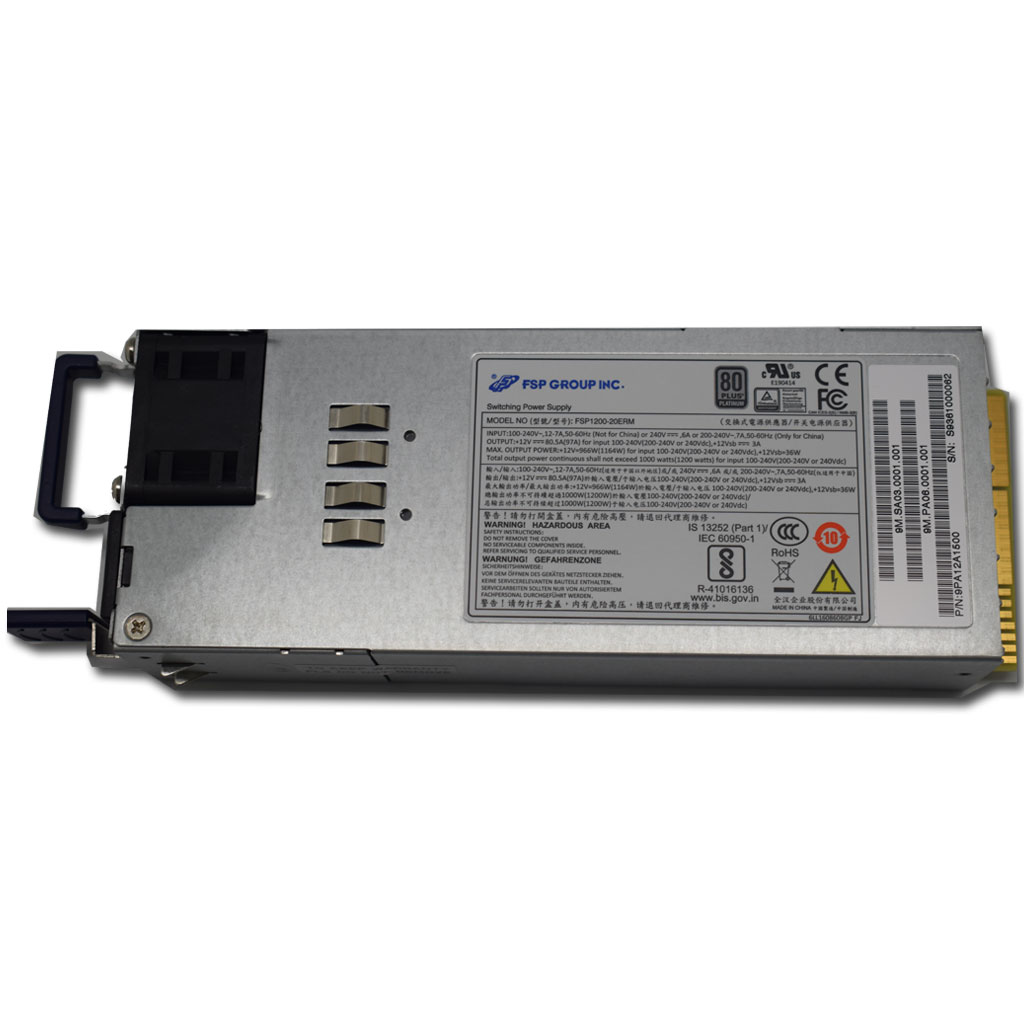

| Size | 2U CRPS 1+1 | |||||||||
| Input Voltage | 100 - 240 V | |||||||||
| Connectors | Mother Board Connector 24 Pins |
- | 1 | |||||||
| Core Voltage Connector 8 Pins | - | 1 | ||||||||
| PCI Express Connector 4+4 Pins | - | 1 | ||||||||
| PCI Express Connector 6 Pins | - | 1 | ||||||||
| PCI Express Connector 6+2 Pins | - | 1 | ||||||||
| SATA Power Connector | - | 7 | ||||||||
| 4 Pin Power Connector | - | 10 | ||||||||
| FDD Power Connector | - | 1 | ||||||||

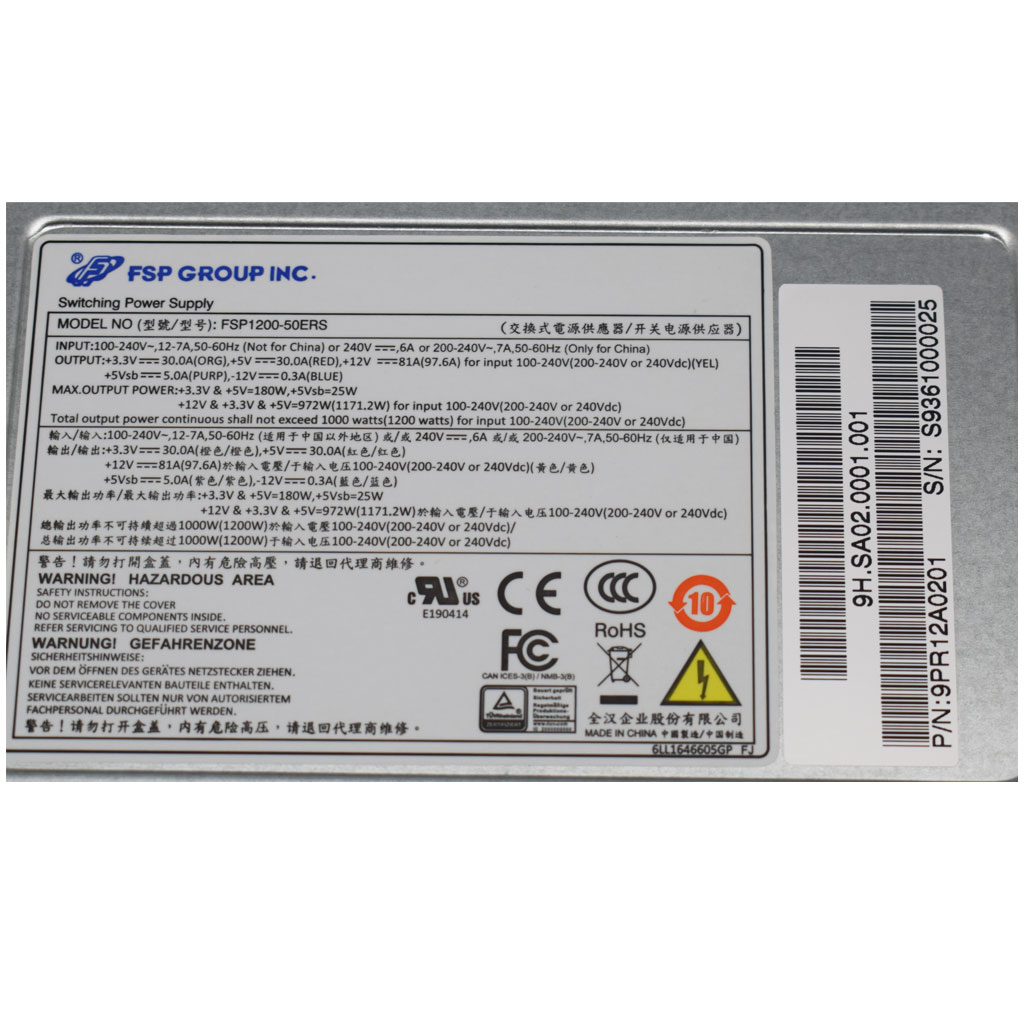

| Ampere Rating | Voltage |
Amperage | ||||||||
| +3.3 V | - | 30.0A |  |
Max. 180W |
||||||
| +5 V | - | 30.0A | ||||||||
| +12 V | - | 81.0A | ||||||||
| - 12 V | - | 0.3A | ||||||||
+5 VSB |
- | 5.0A | ||||||||
| Total Output | 1200 W | |||||||||
| Compatible Chassis | SR-105 RM-423 RM-42612E > | |||||||||
| Download PDF File | ||||||||||
