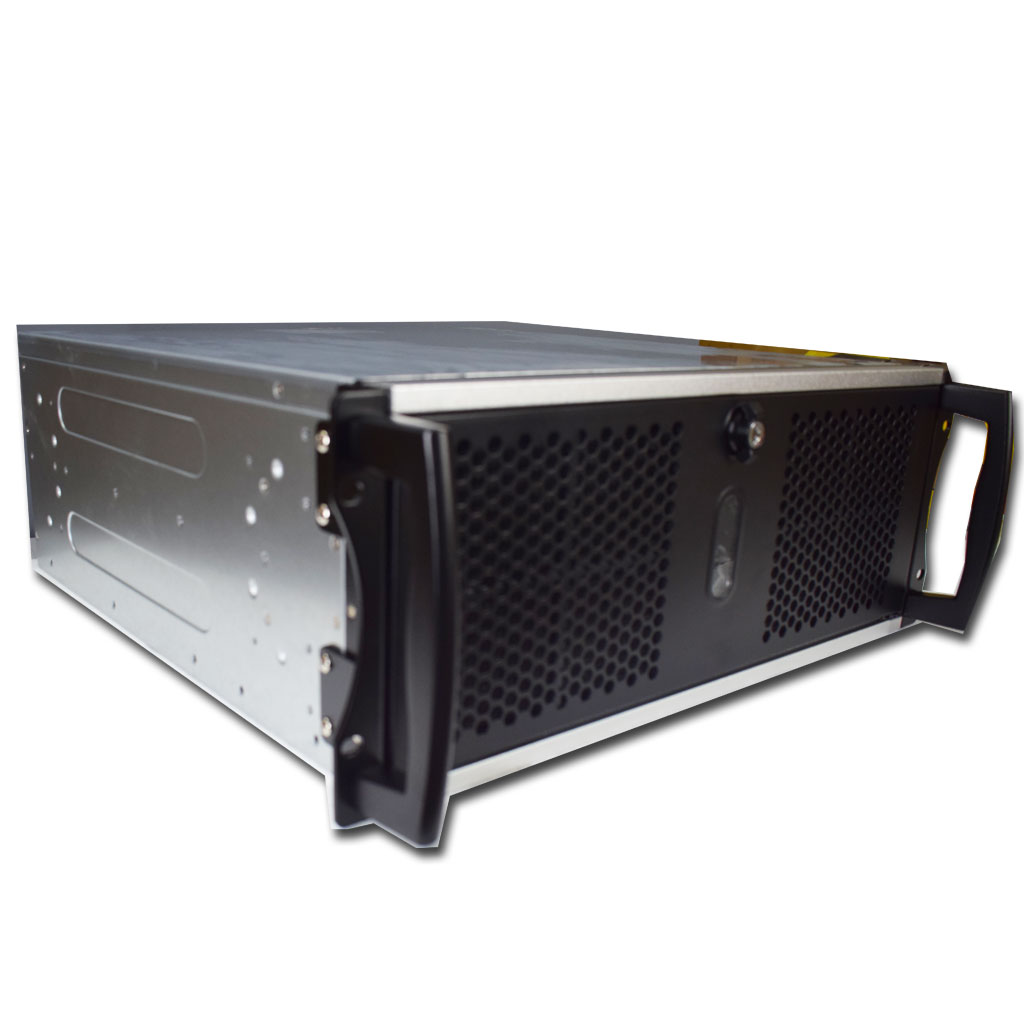

RM-423

4U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2121B
RM-2142A
RM-23808
RM-23524
RM-23824
RM-25324
RM-3001
RM-3003
RM-3161B
IC-610
RM-4001
RM-4002
RM-4007
RM-4081
RM-4081E
RM-4241B
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-423
Type 4U Rack Mount
Mother Board Form Factor ATX - 12" * 9.6"
Dimension (D*W*H) 445 * 430 * 175 mm
Carton Size 590 * 565 * 290 mm
Drive Bays Ext. 5.25"
Ext. 3.5"
Int. 3.5"
Slim ODD		 3
1
4
1
Expansion Slots 7
Front I/O Ports 2 * USB 3.0
Cooling Fans Standard 1 * 12 cm, 1 * 8 cm fans
Optional 1 * 8 cm fan
RackMount Kit Optional
Color Black with Silver
Compatible SMPS FSP400-60GHC
FSP500-60GHC
FSP700-80PSA
FSP1000-50ABB
HPT2-1200M
FSP2000-52AGPB1		 FSP500-60MRB
FSP550-50FS
FSP800-50FS
FSP1200-50FS
GW-CRPS2700D
Net Weight 10 KG
Special Features Intrusion Switch
