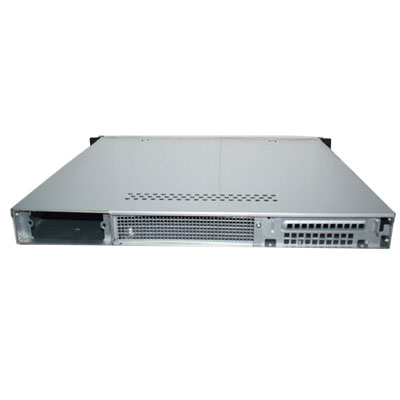

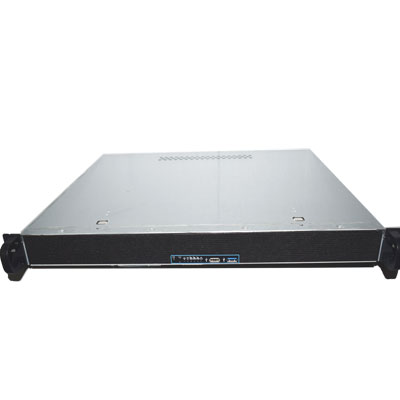

RM-1003
1U Rackmount Chassis

Links to Related Products

RM-1002
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2121B
RM-2142A
RM-23808
RM-23524
RM-23824
RM-25324
RM-3001
RM-3003
RM-3161B
IC-610
RM-4001
RM-4002
RM-4007
RM-4081
RM-4081E
RM-423
RM-4241B
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-1003
Type 1U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 10.5"
Dimension (D*W*H) 400 * 435 * 45 mm
Carton Size (D*W*H) 570 * 560 * 150 mm
Drive Bays Int. 3.5"
Int. 2.5" 		2
4

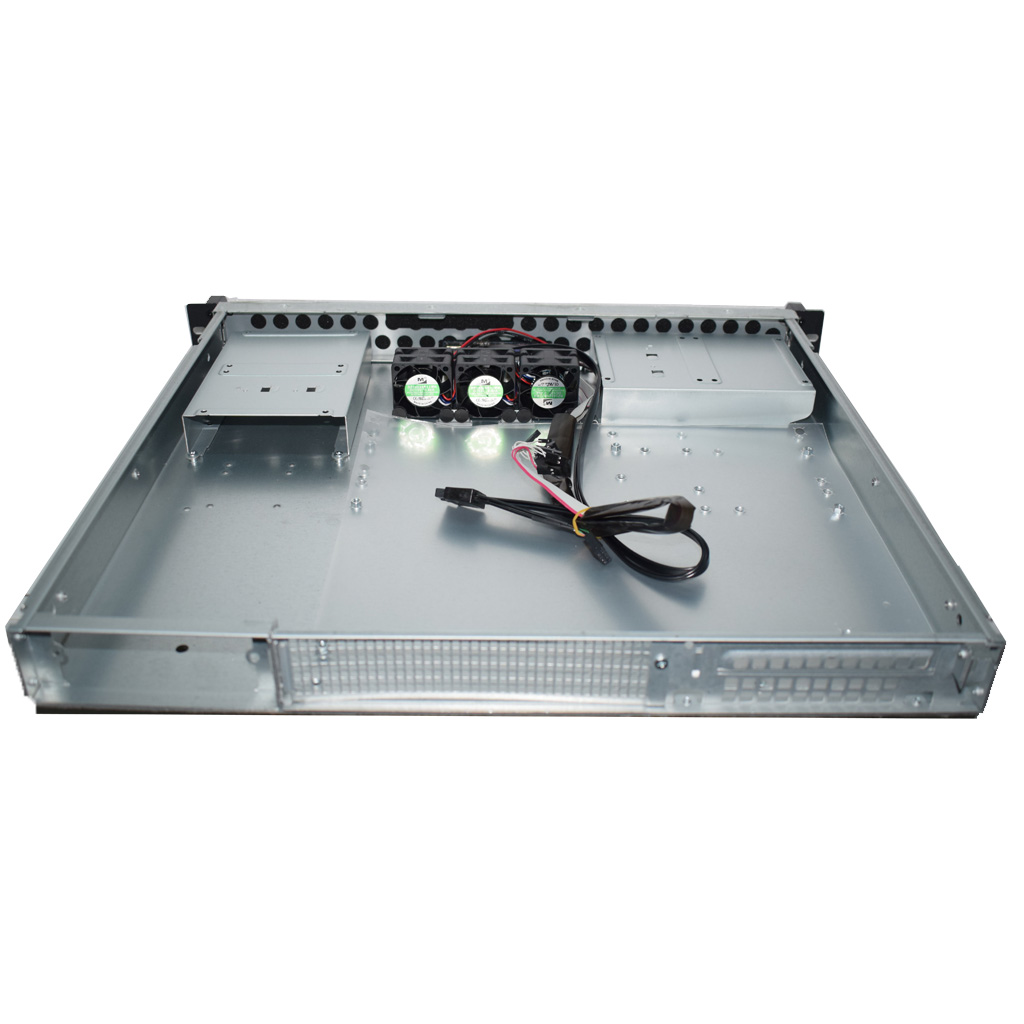

Cooling Fans Standard 3 *4 cm fan
Front I/O Ports 1 * USB 3.0 + 1 * USB 2.0 or 2 * USB 2.0
Rackmount Kit Standard
Color Black / Silver
Compatible SMPS FLEX-200W
FSP250-50FEB
FSP300-60RCB
FSP550-50FDB
FSP550-50RDB
Net Weight 9 KG
Compatible Riser Cards 1U Riser Cards
