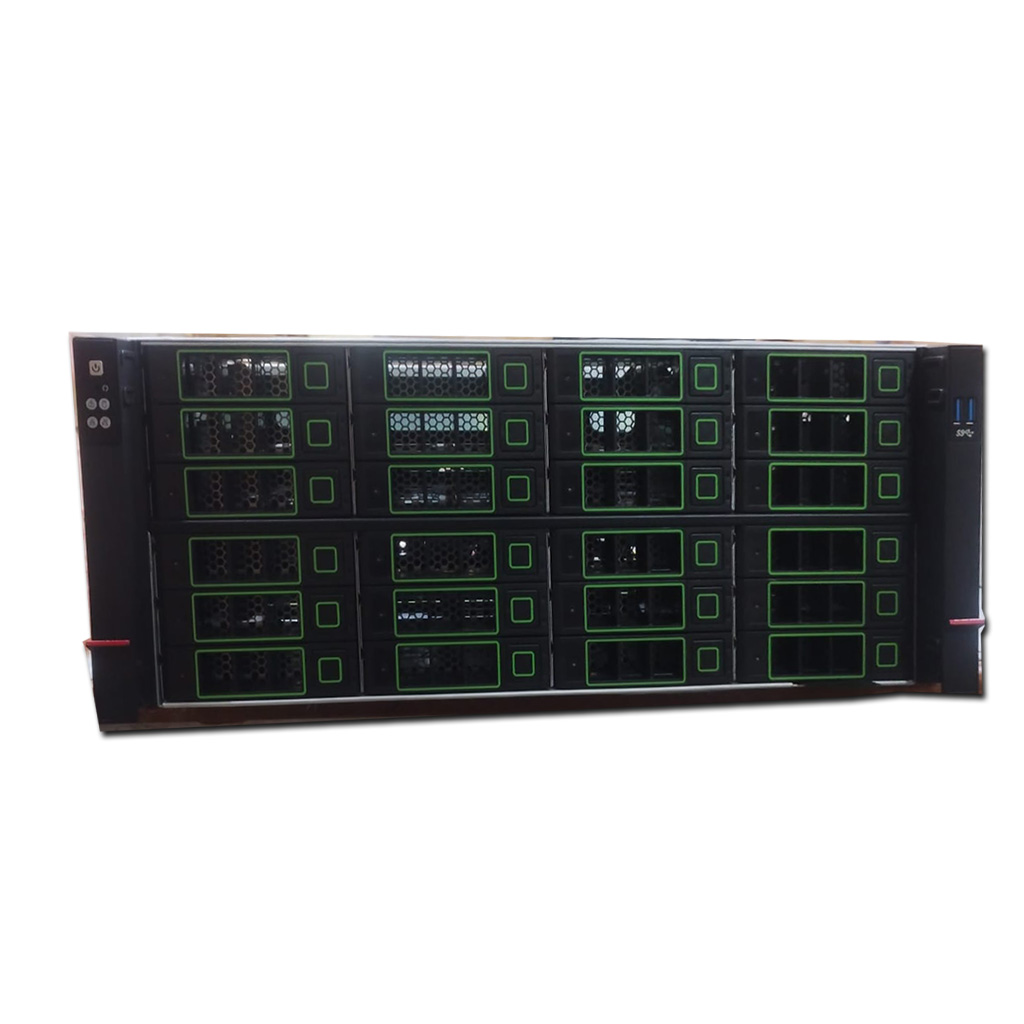

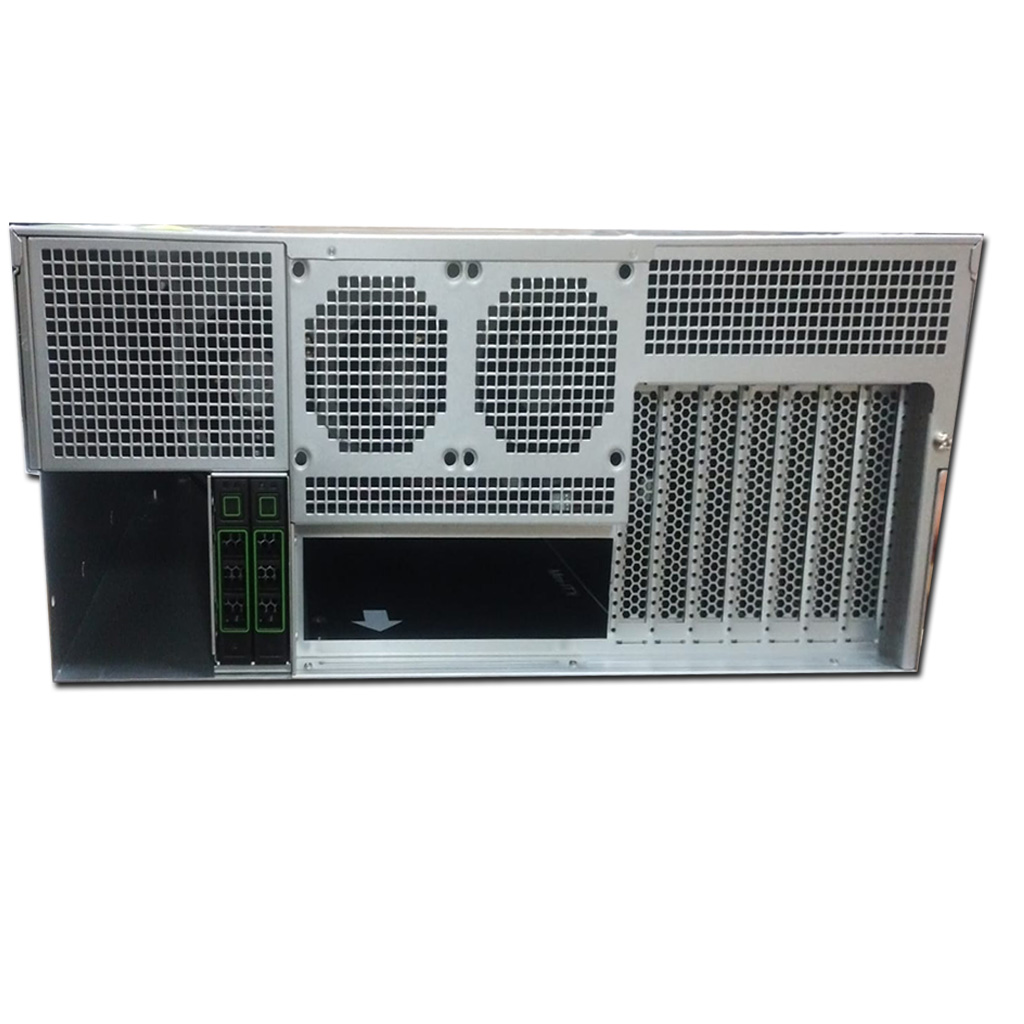

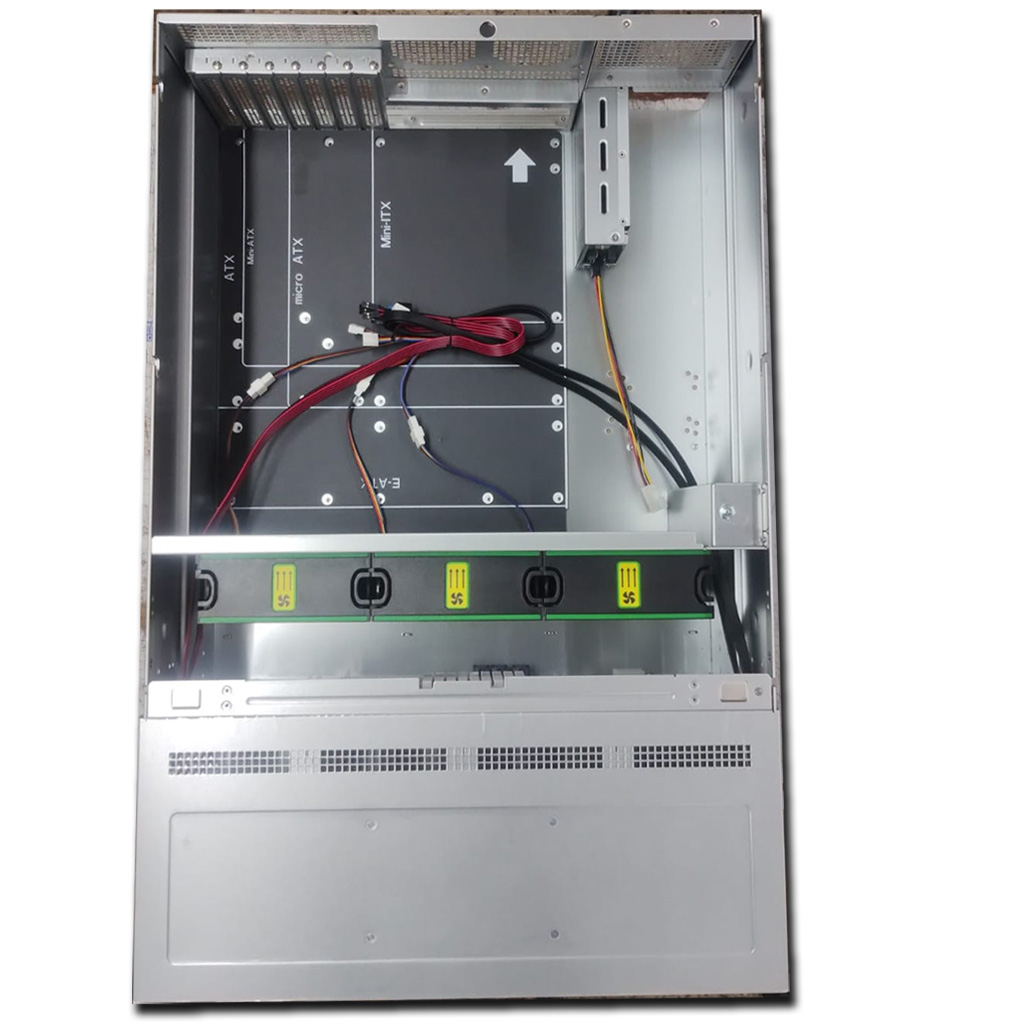

RM-4262A

4U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2142A
RM-23808
RM-23524
RM-3001
RM-3003
IC-610
RM-4001
RM-4002
RM-4007
RM-4081
RM-4081E
RM-423
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-4262A
Type 4U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 13"
Dimension (D*W*H) 680 * 436 * 176 mm
Carton Size 860 * 565 * 305 mm
Drive Bays 2.5" / 3.5" SAS / SATA Hotswap
2.5" SAS / SATA Optional Rear 2.5" SATA / NVMe
 24

 2

Front I/O Ports 2 * USB 3.0
Cooling Fans Standard 3 * 12 cm middle fan,
Optional 2 * 8 cm rear fan
Rackmount Kit Standard
Backplane Connector Mini-SAS HD (SFF 8643) with 12G Expander
Backplane

Color Black / Silver
Compatible SMPS FSP800-50FS
FSP1200-50FS
GW-CRPS1600D
GW-CRPS2000D

Net Weight 19 KG
