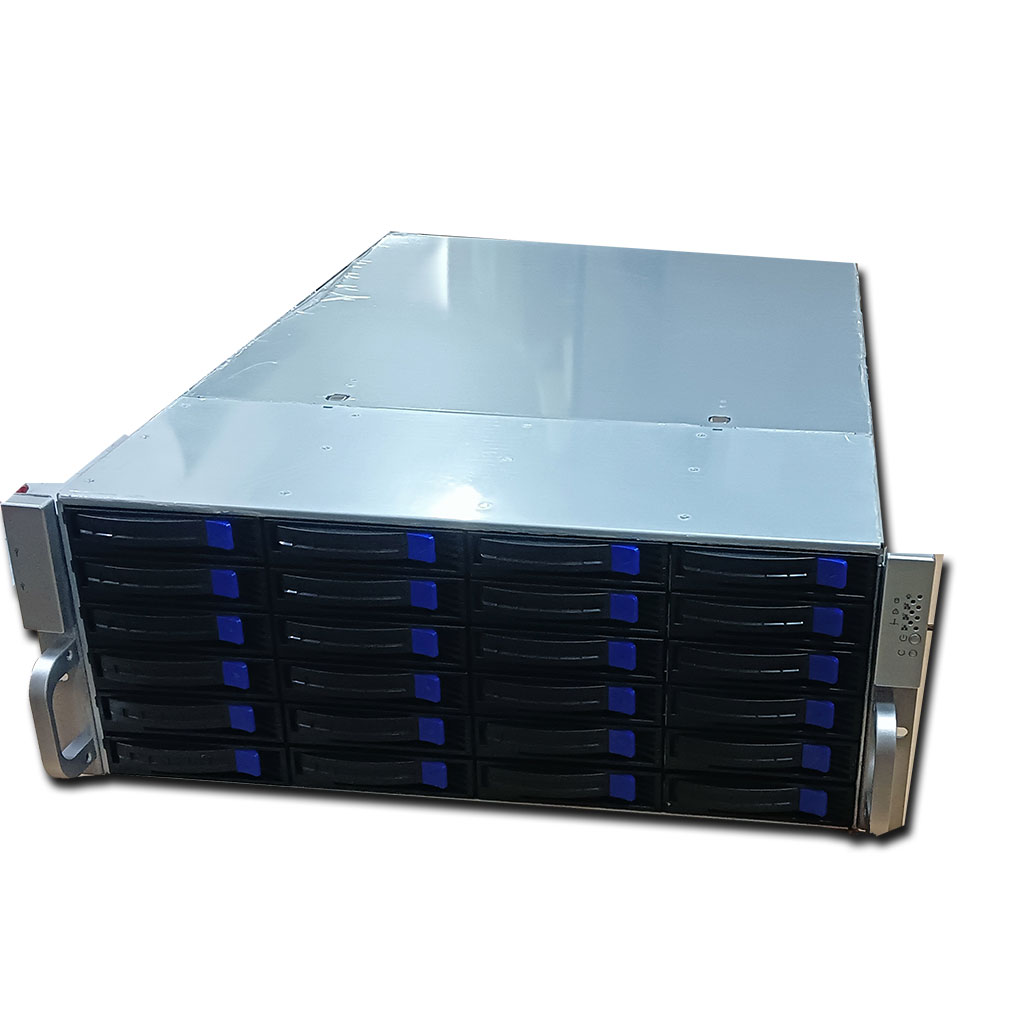

RM-4241B

4U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2121B
RM-2142A
RM-23808
RM-23524
RM-23824
RM-25324
RM-3001
RM-3003
RM-3161B
IC-610
RM-4001
RM-4002
RM-4007
RM-4081
RM-4081E
RM-423
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-4241B
Type 4U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 13"
Dimension (D*W*H) 655 * 435 * 180 mm
Carton Size 840 * 580 * 260 mm
    Opt1   Opt2
Drive Bays 2.5" / 3.5" SAS / SATA / NVMe Hotswap
2.5" SATA
3.5" SATA		 24
 2
 0
   24
0
1
Front I/O Ports 2 * USB 3.0 / 2.0

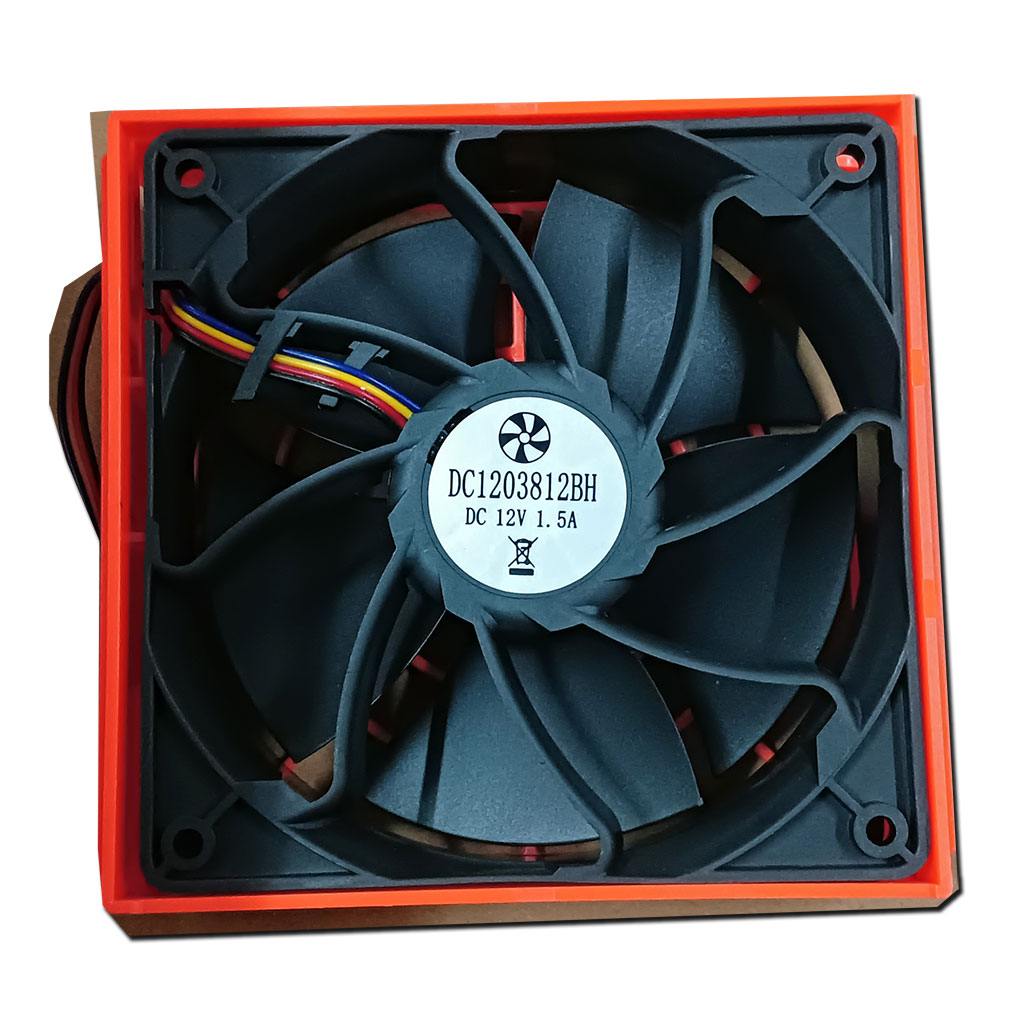

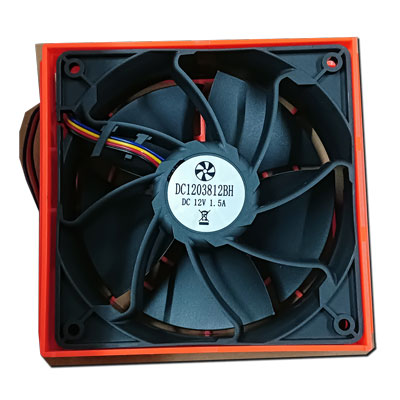

Cooling Fans Standard 3 * 12 cm middle fan,
Optional 2 * 8 cm rear fan
Rackmount Kit Standard
Backplane Connector


 Trimode Backplanes
6 * SFF8654-4i for 24 SATA / SAS
12 * SFF8654-8i for 24 NVMe
Color Black / Silver
Compatible SMPS FSP1000-50ABB
HTP2-1200M
FSP2000-50AGPB1
FSP550-50FS
FSP800-50FS
FSP1200-50FS
GW-CRPS1600D
GW-CRPS2000D
GW-CRPS2700D
Net Weight 19 KG
Download PDF File
