FSP550-50FS - Server SMPS

Specification
Model Name	FSP550-50FS

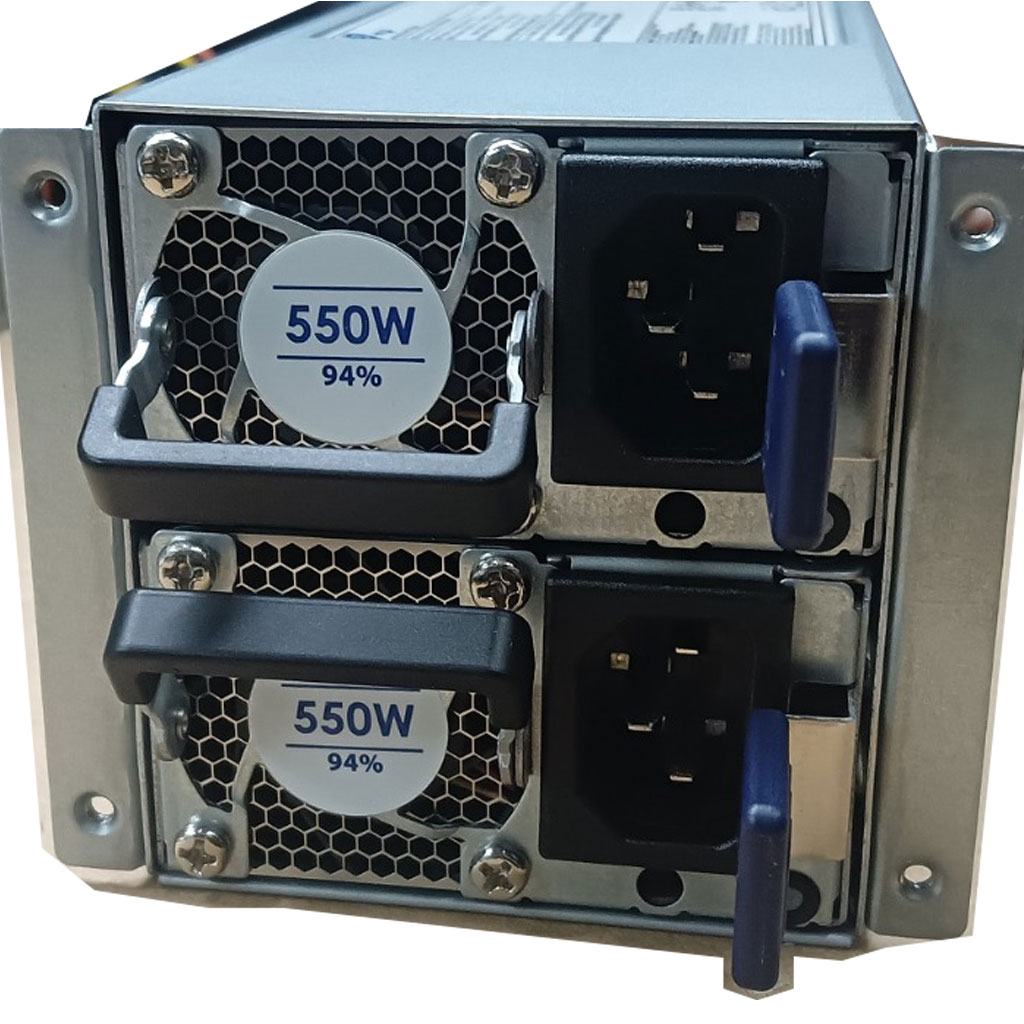

Size	2U CRPS 1+1
Input Voltage	100 - 240 V
Connectors	Mother Board Connector 24 Pins		-	1
	Core Voltage Connector 8 Pins		-	1
	PCI Express Connector 4+4 Pins		-	1
	PCI Express Connector 6+2 Pins		-	1
	PCI Express Connector 6 Pins		-	1
	SATA Power Connector		-	6
	4 Pin Power Connector		-	8
	FDD Power Connector		-	1

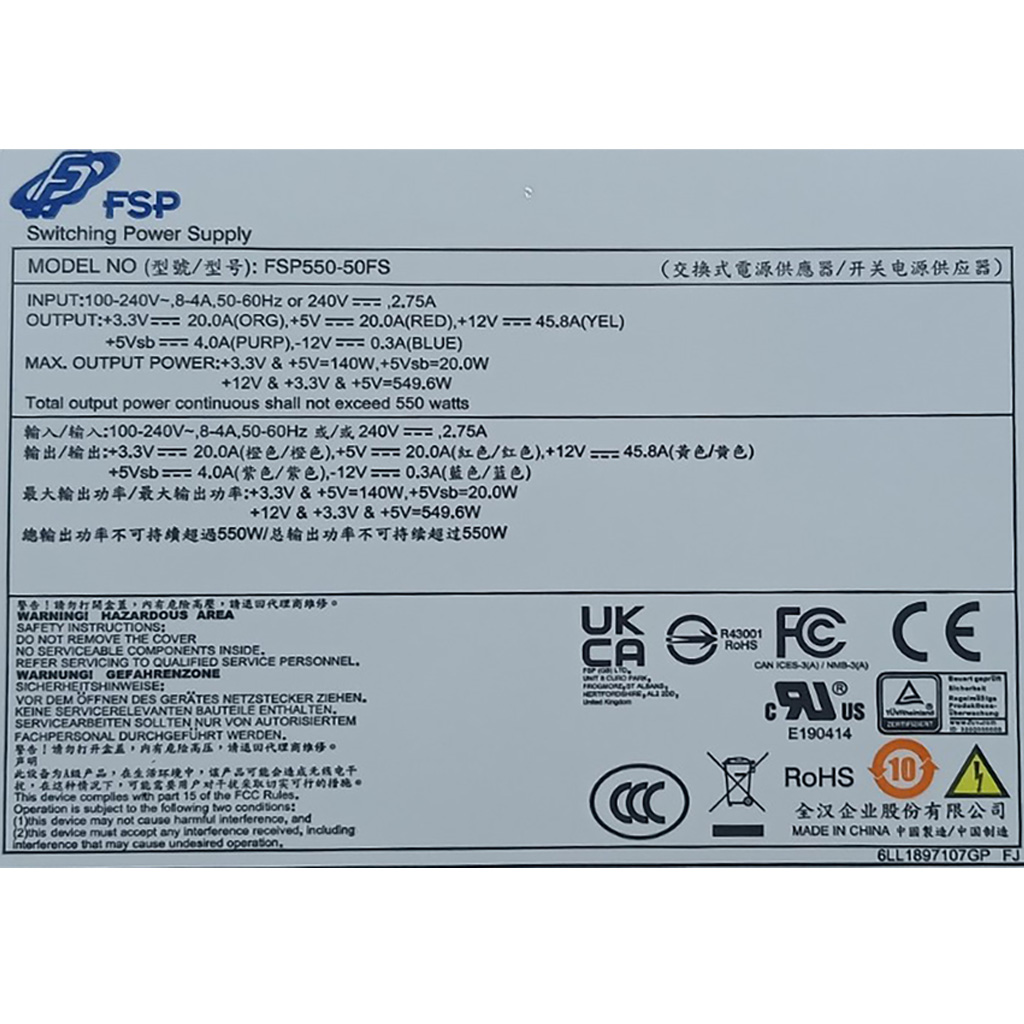

Ampere Rating	Voltage			Amperage
	+3.3 V		-	20.0A	Max. 140W
	+5 V		-	20.0A	Max. 140W
	+12 V		-	44.0A
	- 12 V		-	0.3A
	+5 VSB		-	4.0A
Total Output	550 W + 550 W
Compatible Chassis	SR-105 SR-108 TW-115 TW-125 RM-2003 RM-2006 RM-2081 RM-2081A RM-2081B	RM-2082AH RM-2082AN RM-2142A RM-23808 RM-23524 RM-3001 RM-423 RM-4002	RM-4081 RM-4081E RM-4262A RM-4382A RM-6502A RM-6622A
