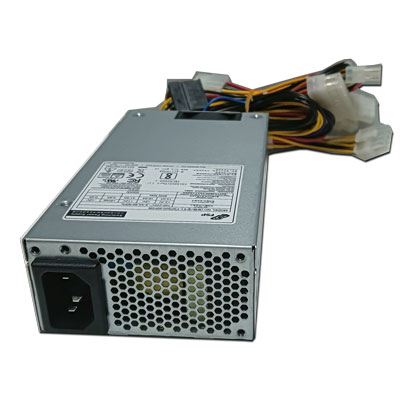

FSP500-50FDB Server SMPS

Specification Previous Page
Model Name	FSP500-50FDB
Size	1U Single
Input Voltage	100 - 240 V
Connectors	Mother Board Connector 24 Pins		-	1
	Core Voltage Connector 8 Pins		-	1
	Core Voltage Connector 4+4 Pins		-	1
	SATA Power Connector		-	3
	4 Pin Power Connector		-	3

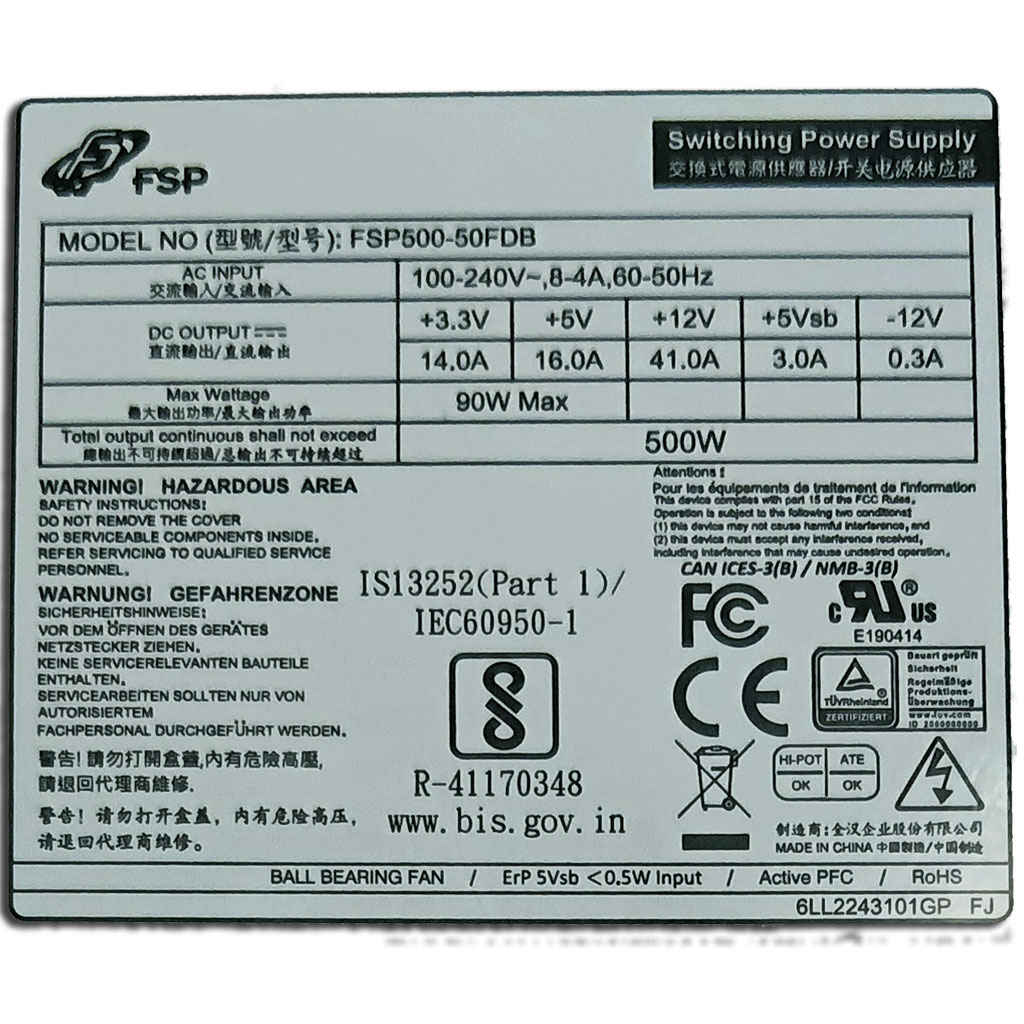

Ampere Rating	Voltage			Amperage
	+3.3V		-	14.0A	Max. 90W
	+5 V		-	16.0A	Max. 90W
	+12 V1		-	41.0A
	+5 VSB		-	3.0A
	-12 V		-	0.3A
Total Output	500 W
Compatible Chassis	RM-1003 RM-1004 RM-1021 RM-1042 RM-1044 RM-1044B RM-13310 RM-13604 RM-238A	RM-2003 RM-2006 RM-2081 RM-2081A RM-2081B RM-2082AH RM-2082AN RM-2121B RM-2142A
