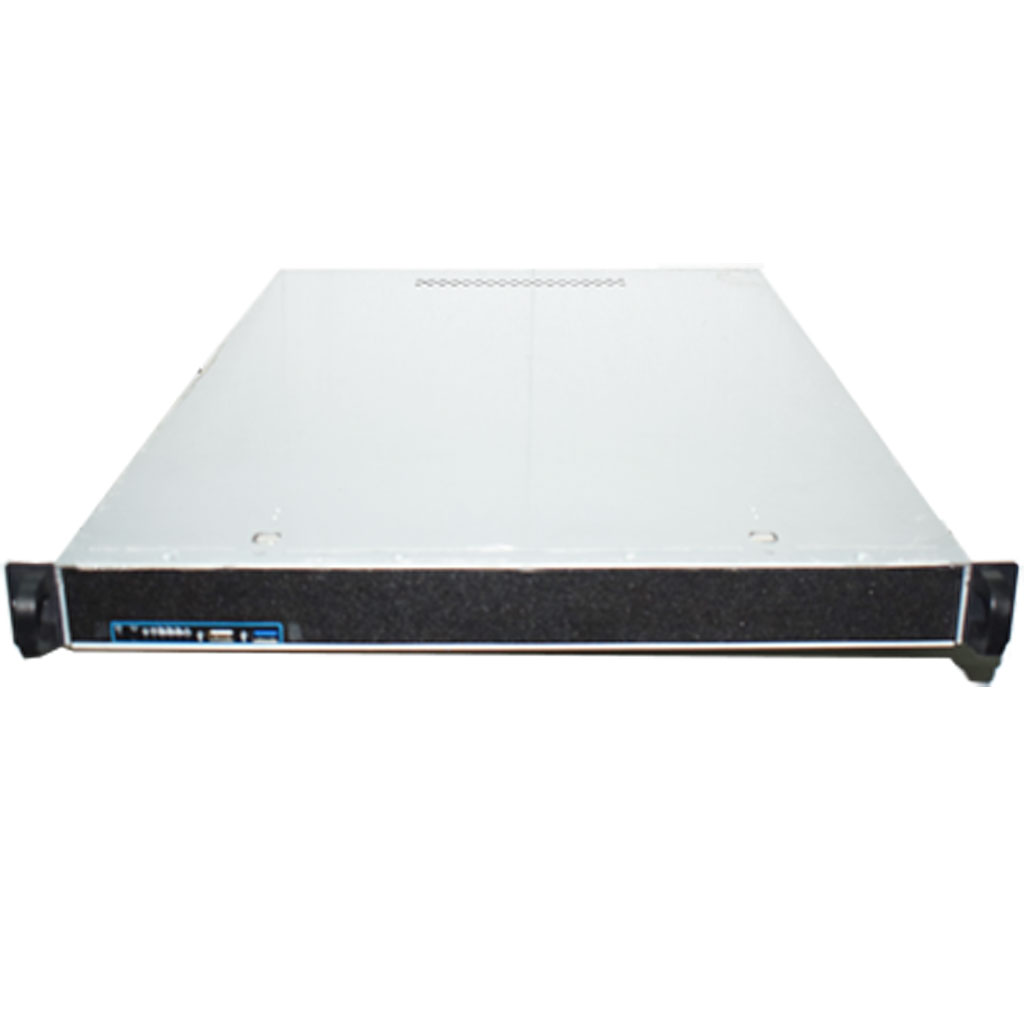

RM-1004

1U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2121B
RM-2142A
RM-23808
RM-23524
RM-23824
RM-25324
RM-3001
RM-3003
RM-3161B
IC-610
RM-4001
RM-4002
RM-4007
RM-4081
RM-4081E
RM-423
RM-4241B
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-1004
Type 1U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 13"
Dimension (D*W*H) 650 * 435 * 45 mm
Carton Size (D*W*H) 850 * 580 * 150 mm
Drive Bays Int. 3.5" / 2.5" 4

Cooling Fans Standard 5 * 4 * 2.8cm PWM fan
Optional upto 5 * 4 * 5.6 cm PWM fan
Front I/O Ports 1 * USB 3.0 + 1 * USB 2.0 or 2 * USB 2.0
Rackmount Kit Standard
Color Black / Silver
Compatible SMPS FSP250-50FEB
FSP500-50FDB
FSP300-60RCB
FSP500-50RDB
FSP850-50FGPH3
Net Weight 13 KG
Compatible Riser Cards 1U Riser Cards
Special Features Fan wall can be moved depending on mother board size to get better ventilation
