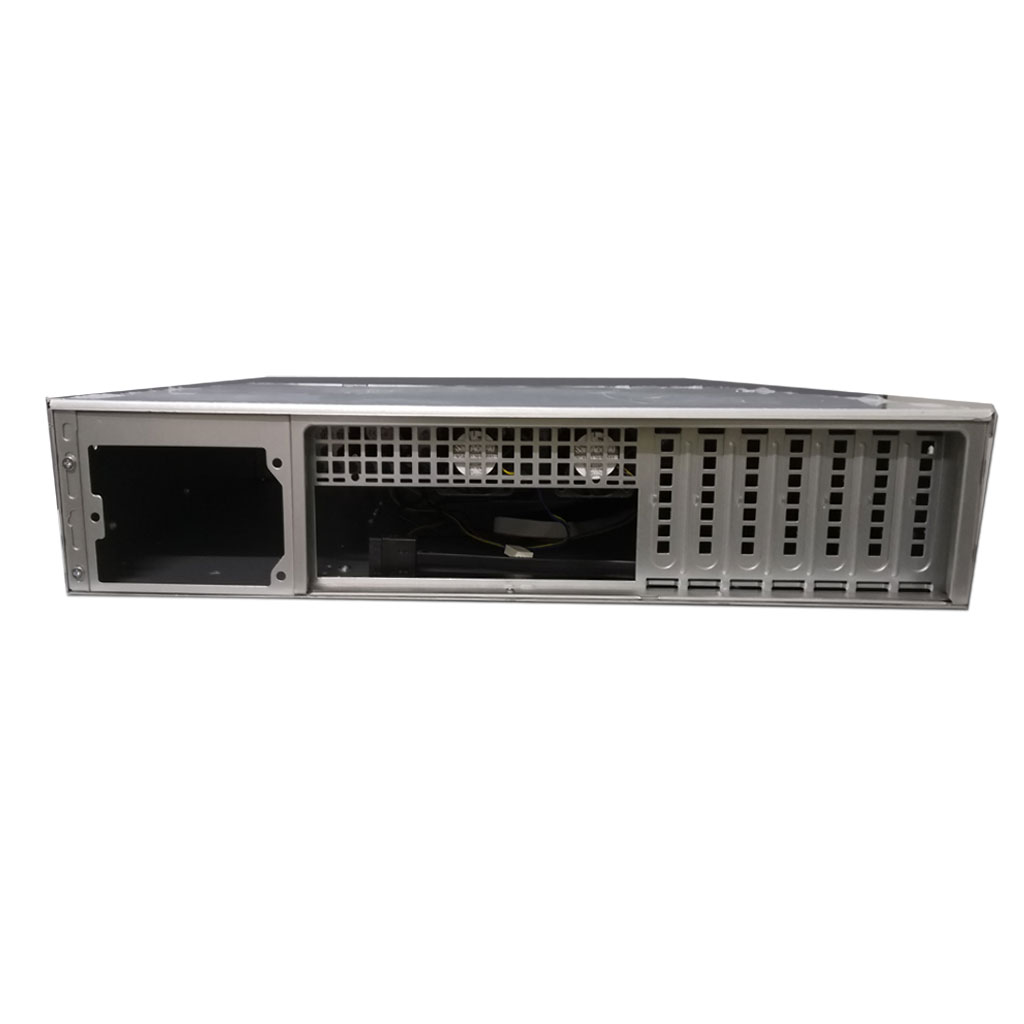

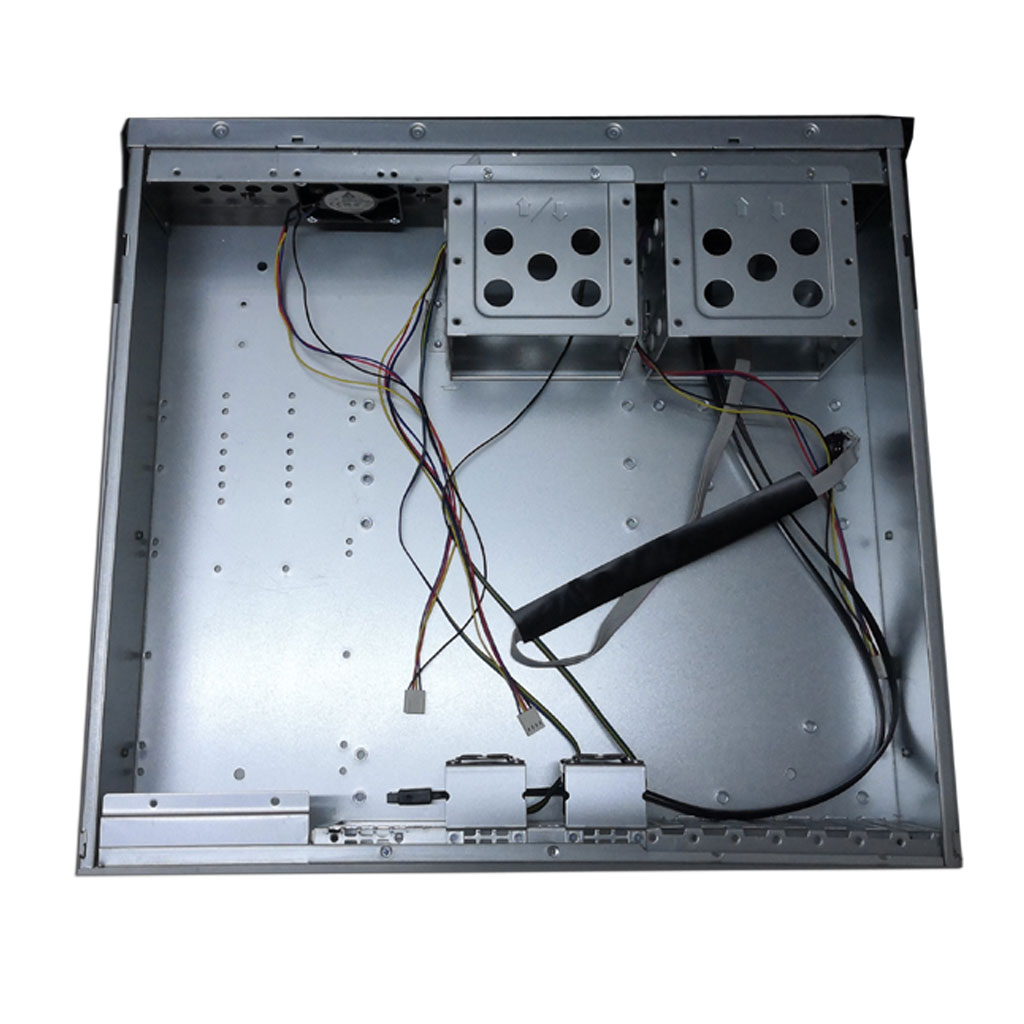

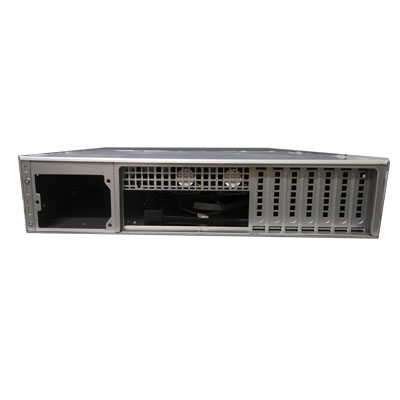

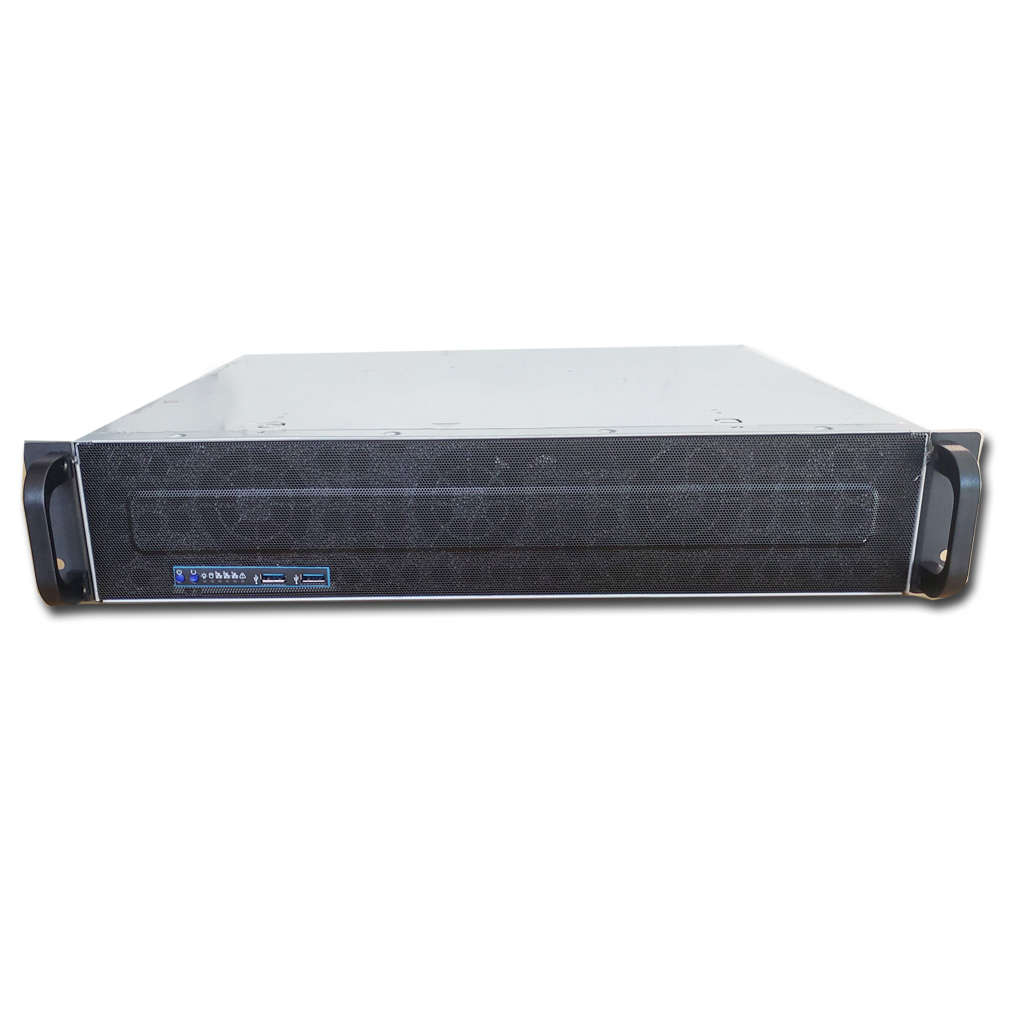

RM-2006
2U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2121B
RM-2142A
RM-23808
RM-23524
RM-23824
RM-25324
RM-3001
RM-3003
RM-3161B
IC-610
RM-4001
RM-4002
RM-4007
RM-4081
RM-4081E
RM-423
RM-4241B
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-2006
Type 2U Rack Mount
Mother Board Form Factor ATX - 12" * 9.6"
Dimension (D*W*H) 400 * 435 * 90 mm
Carton Size 590 * 580 * 180 mm
Drive Bays Int. 3.5"
4
Cooling Fans Standard 3 * 6 cm front fan
                 2 * 4 cm Rear fan
Front I/O Ports 2 * USB 3.0
Rackmount Kit Standard
Rear Window Low Profile
Color Black / Silver
Compatible SMPS FSP250-50FEB
FSP500-50FDB
FSP300-60RCB
FSP500-50RDB
FSP550-50FS
FSP850-50FGPH3
Net Weight 6 KG
Special Features Compact Depth
Download PDF File
