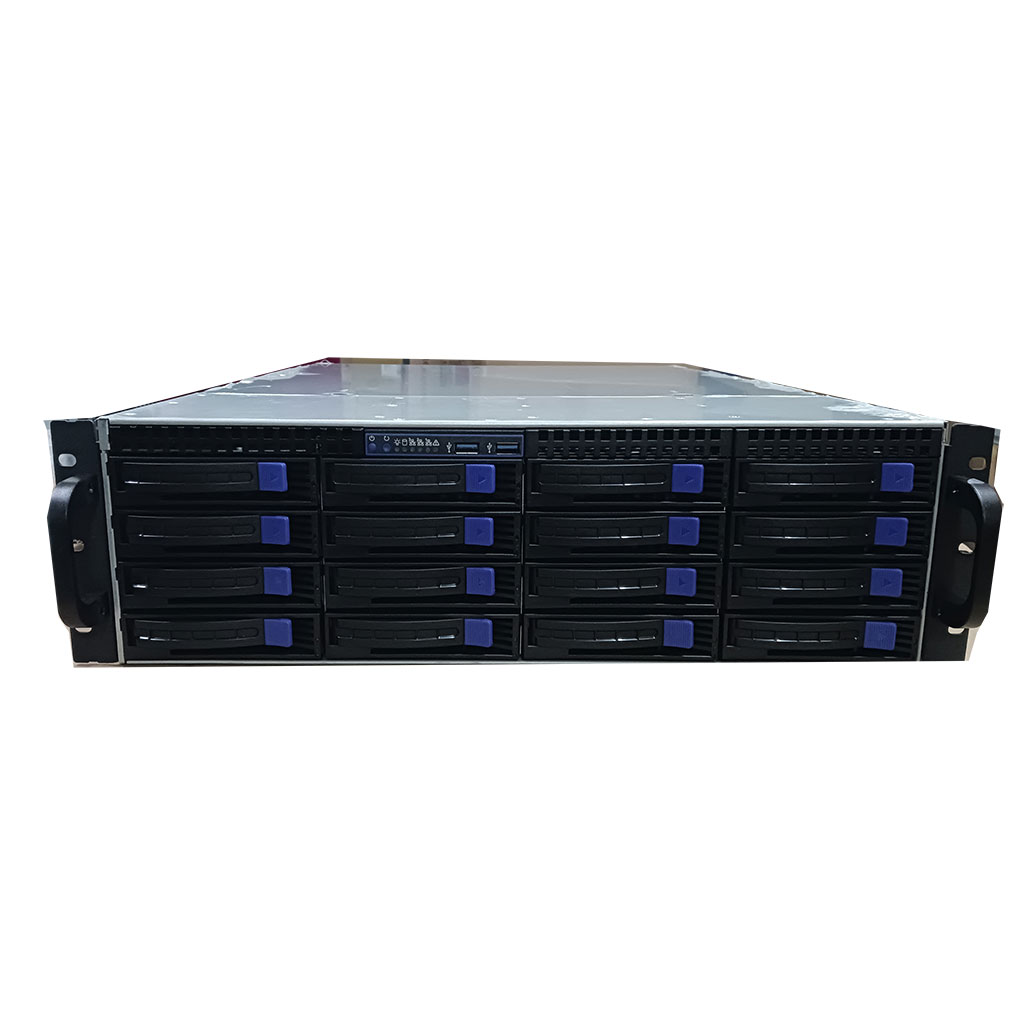

RM-3161B

3U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2121B
RM-2142A
RM-23808
RM-23524
RM-23824
RM-25324
RM-3001
RM-3003
IC-610
RM-4001
RM-4002
RM-4007
RM-4081
RM-4081E
RM-423
RM-4241B
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-3161B
Type 3U Rack Mount
Mother Board Form Factor Ext. ATX - 15" * 13"
Dimension (D*W*H) 655 * 435 * 175 mm
Carton Size 840 * 580 * 220 mm
Drive Bays 3.5" / 2.5" Hotswap Bays
Int. 2.5"
Slim DVD
16
  2
  1

Front I/O Ports 2 * USB 3.0

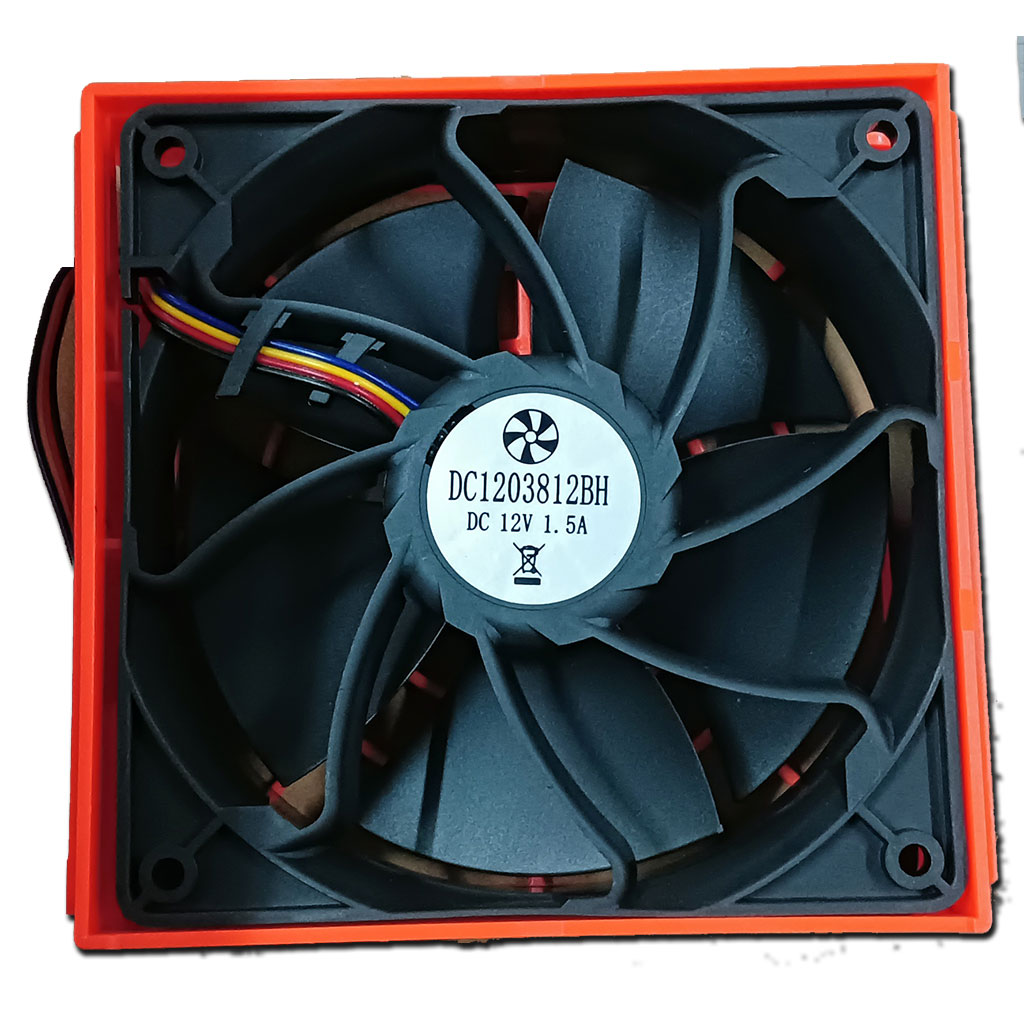

Cooling Fans Standard 3 * 12 cm Hotswappable fans
2 * 6 cm rear fans
Rackmount Kit Standard
Backplane Connector


 Trimode Backplane
4 * SFF8654-4i for 16 SATA / SAS
8 * SFF8654-8i for 16 NVMe
Rear Window 7 Slot High Profile
Color Black / Silver
Compatible SMPS FSP550-50FS
FSP800-50FS
FSP1200-50FS
GW-CPRS1600D
GW-CPRS2000D
GW-CRPS2700D
Net Weight 15.5 KG
