RM-13304

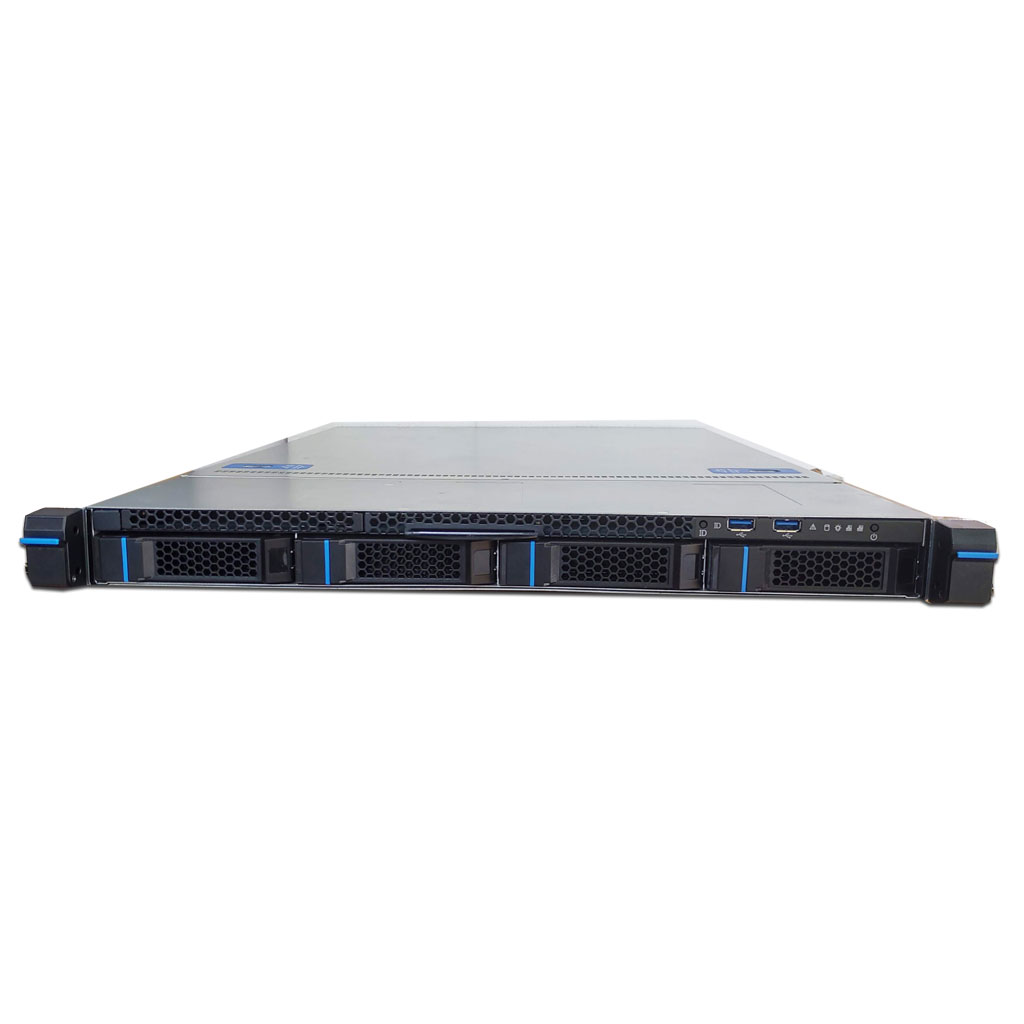

1U Rackmount Chassis

Links to Related Products
RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2082AN
RM-2142A
RM-23808
RM-23524
RM-3001
RM-3003
RM-4001
RM-4007
IC-610
RM-423
RM-4002
RM-4081
RM-4262A
RM-4382A
RM-6250A
RM-6622A

SpecificationPrevious Page
Model Name RM-13304
Type 1U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 13"
Dimension (D*W*H) 660 * 438.5 * 43.5 mm
Drive Bays Slim Optical Drive Bay
3.5" Hotswap
2.5" Int. SAS / SATA		 1
4
2
Cooling Fans Standard 4 * 4 cm fan
Front I/O Ports 2 * USB 3.0
Rackmount Kit Standard
Backplane Connector 12 Gbps Discrete SATA
Color Black / Silver
Compatible SMPS FSP250-50GUB
P1M-6400P
FSP300-60RCB
FSP400-701UH
FSP500-50RDB
FSP850-50FGPH1
Net Weight 10.5 KG
Compatible Riser Cards 1U Riser Cards
