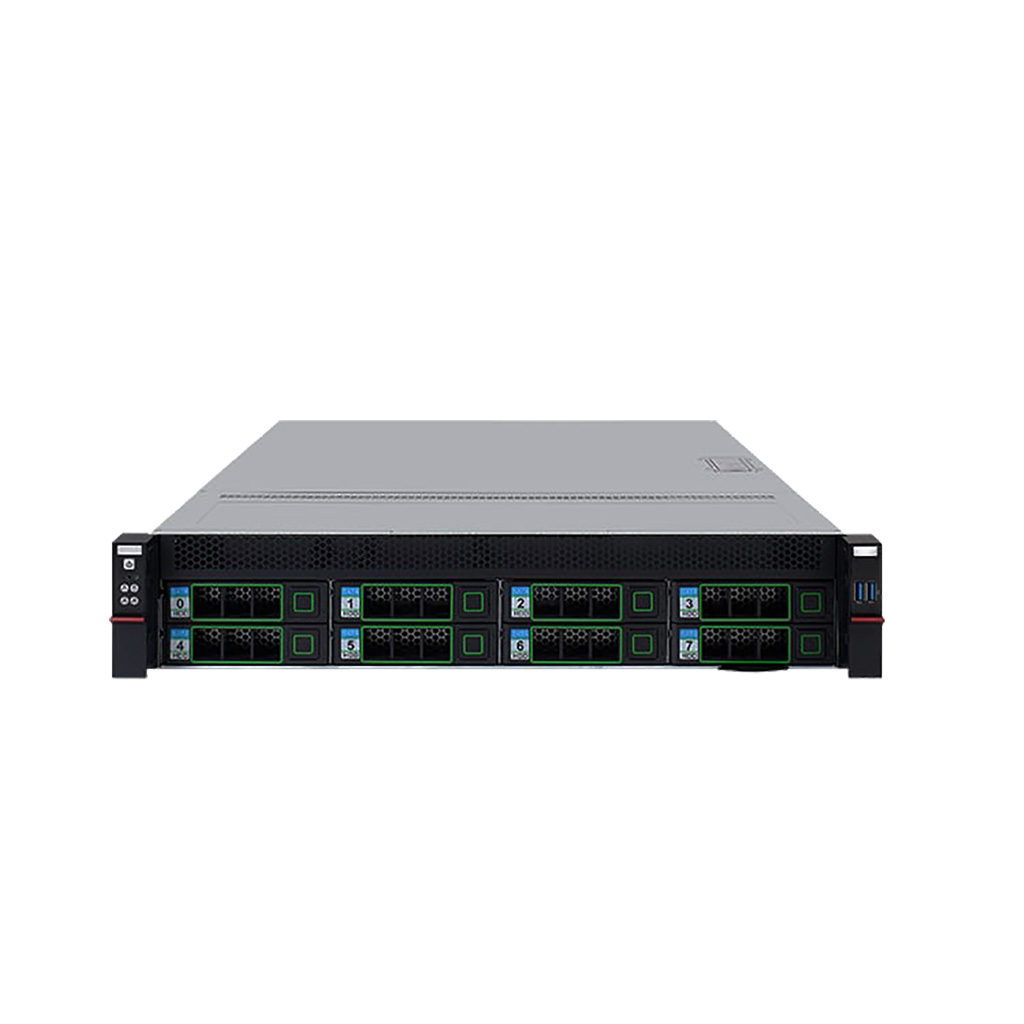

RM-2082AN

2U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-1044
RM-1044B
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RM-2082AH
RM-2121B
RM-2142A
RM-23808
RM-23524
RM-23824
RM-25324
RM-3001
RM-3003
RM-3161B
IC-610
RM-4001
RM-4002
RM-4007
RM-4081
RM-4081E
RM-423
RM-4241B
RM-4262A
RM-4382A
RM-6502A
RM-6622A
SpecificationPrevious Page
Model Name RM-2082AN
Type 2U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 13"
Dimension (D*W*H) 680 * 436 * 88.1mm
Carton Size 860 * 565 * 217 mm
Drive Bays 2.5" / 3.5" SAS / SATA   HotSwap
Slim ODD
Optional Rear 2.5"  SATA / NVMe		 8
1
2

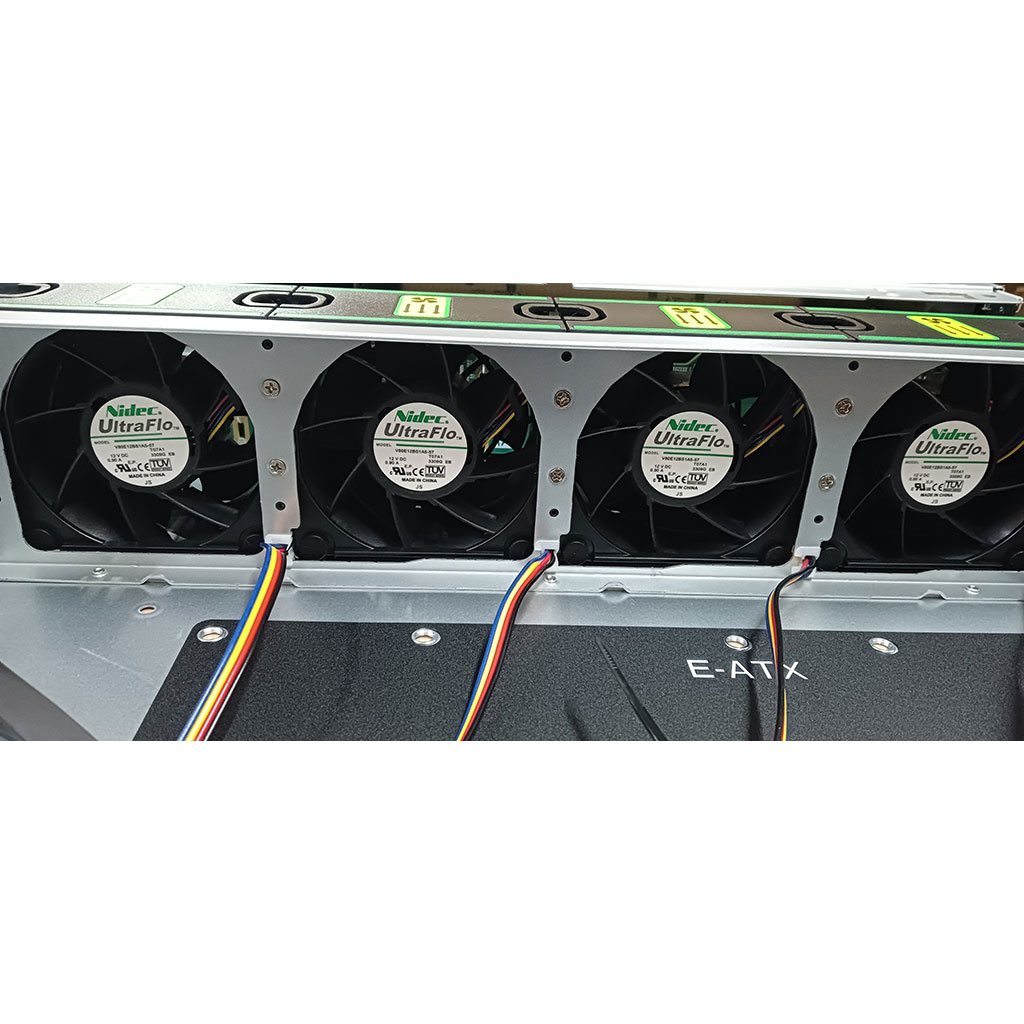

Cooling Fans Standard 8 cm Hotswappable fans (7000 RPM)
Optional 8cm Hotswappable fan         		 3
1
Front I/O Ports 2 * USB 3.0
Rackmount Kit Standard
Backplane Connectors 2 * HD Mini-SAS (SFF 8643) - 12G
Rear Window Low Profile
Color Black / Silver
Compatible SMPS FSP500-50FDB
FSP850-50FGPH3
FSP550-50FS
FSP800-50FS
FSP1200-50FS
GW-CPRS1600D
GW-CRPS2000D
GW-CRPS2700D
Net Weight 10   KG
Download PDF File
