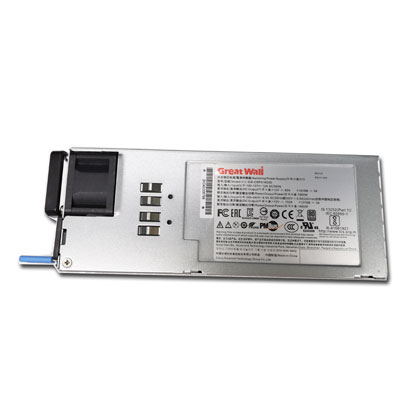

GW-CRPS1600D - Server SMPS

SpecificationPrevious Page
Model Name	GW-CRPS1600D
Size	2U CRPS 1+1
Input Voltage	110 - 240 V AC
Connectors	Mother Board Connector 24 Pins			-	1
	Core Voltage Connector 8 Pins			-	1
	PCI Express Connector 4+4 Pins			-	1
	PCI Express Connector 6+2 Pins			-	8
	SATA Power Connector			-	2
	4 Pin Power Connector			-	4
Ampere and Voltage Rating	+3.3V			-	24.0A	Max. 250W
	+5VSB			-	38.0A	Max. 250W
	+12V1			-	83.0A
	+12V2			-	83.0As
	+5V			-	0.5A
Total Output	1600 W
Compatible Chassis	TW-115 TW-125 RM-2003 RM-2081 RM-2081A RM-2081B RM-2082AH RM-2082AN RM-2121B	RM-23808 RM-23524 RM-23824 RM-25324 RM-3001 RM-3161B IC-610 RM-423 RM-4002	RM-4081 RM-4081E RM-4241B RM-4262A RM-4382A RM-6502A RM-6622A
