Specification |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

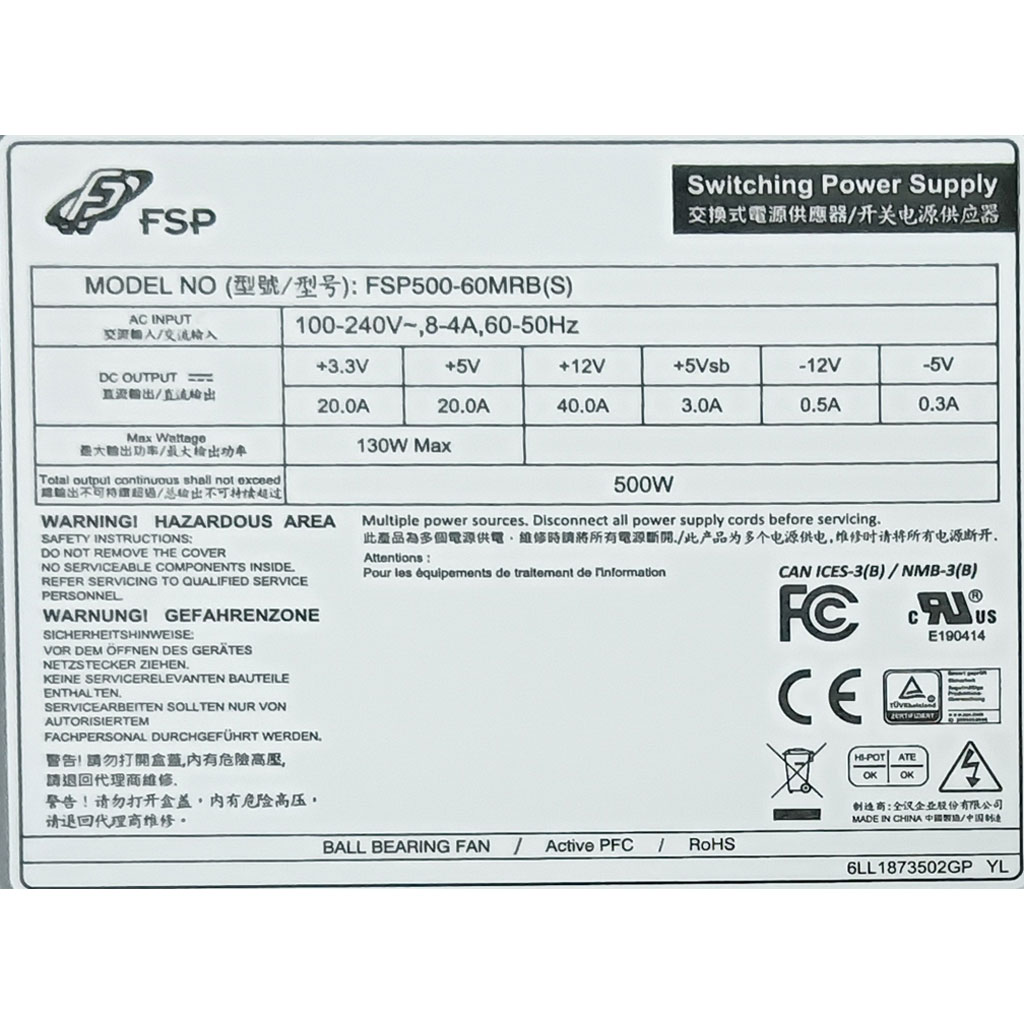

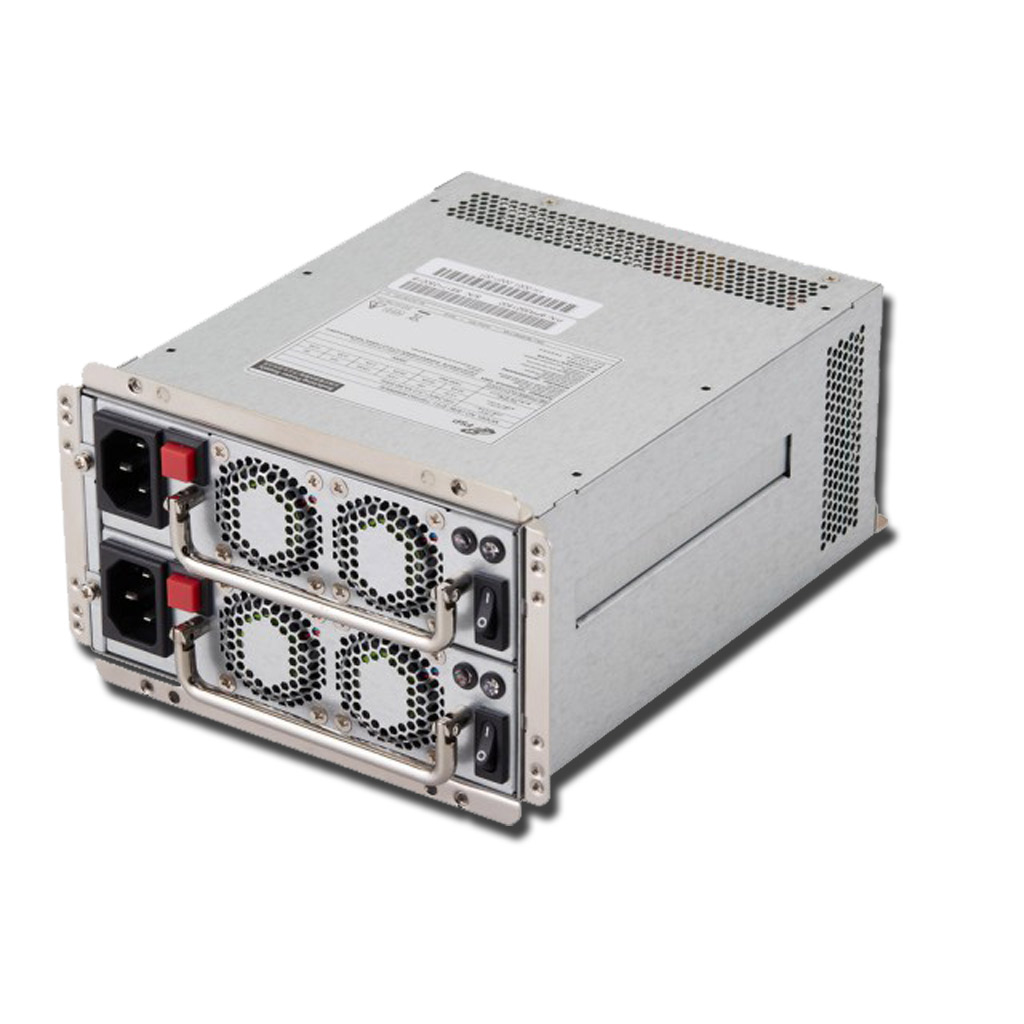

| Model Name | FSP500-60MRB | ||||||||||
| Size | PS2 Mini Redundant 1+1 | ||||||||||
| Input Voltage | 100 - 240 V | ||||||||||
| Connectors | Mother Board Connector 24 Pins |
- | 1 | ||||||||
| Core Voltage Connector 8 Pins | - | 2 |
|||||||||
| Core Voltage Connector 4 Pins | - | 1 | |||||||||
| PCI Express Connector 6+2 Pins | - | 2 | |||||||||
| SATA Power Connector | - | 6 | |||||||||
| 4 Pin Power Connector | - | 5 | |||||||||
| FDD Power Connector | - | 1 | |||||||||
| Ampere Rating | Voltage |
Amperage | |||||||||
| +3.3 V | - | 20.0A |
| Max. 130W | |||||||
| +5 V | - | 20.0A | |||||||||
| +12 V | - | 40.0A | |||||||||
| - 12 V | - | 0.5A | |||||||||
| +5 VSB | - | 3.0A | |||||||||
| -5 V | - | 0.3A | |||||||||
| Total Output | 500 W + 500 W | ||||||||||
| Compatible Chassis | SR-105 IC-610 RM-4001 RM-4002 RM-4007 RM-423 |
||||||||||
