SpecificationPrevious Page |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

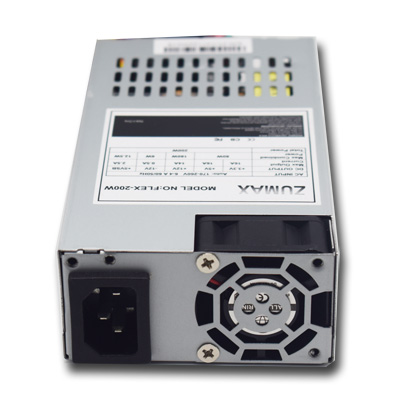

| Model Name | Flex-200W | |||||||||
| Sixe | 1U Single / Flex ATX | |||||||||
| Input Voltage | 170 V - 260 V | |||||||||
| Connectors | Mother Board Connector 20+4 Pins | - | 1 |
|||||||
| Core Voltage Connector 4 Pins | - | 1 | ||||||||
| SATA Power Connector | - | 2 | ||||||||
| 4 Pin Power Connector | - | 2 | ||||||||

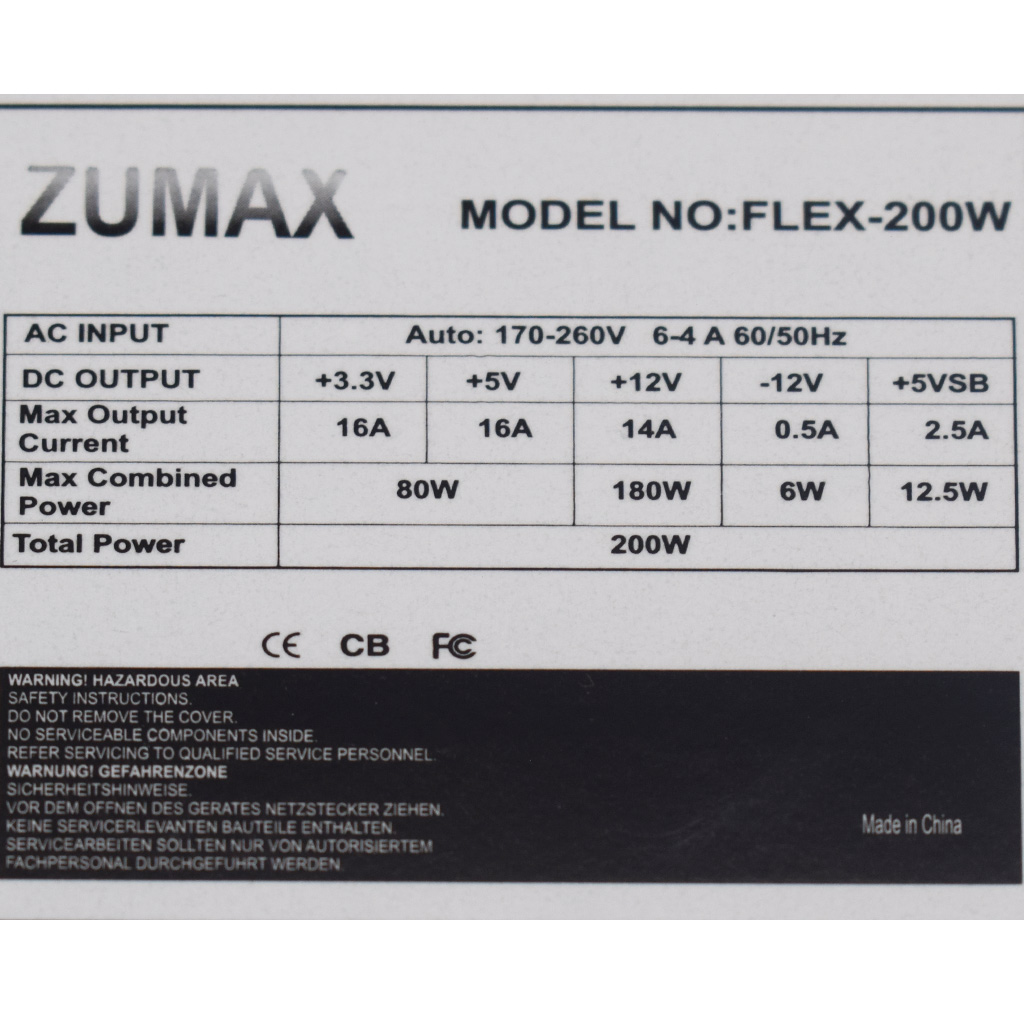

| Ampere Rating | Voltage |
Amperage | ||||||||
| +3.3 V | - | 16.0A |  |
Max. 80W |
||||||
| +5 V | - | 16.0A | ||||||||
| +12 V | - | 14.0A | - | Max. 180W | ||||||
| -12 V | - | 0.5A | ||||||||
| +5 VSB | - | 2.5A | ||||||||
| Total Output | 200 W | |||||||||
| Compatible Chassis |
RM-1002 RM-1003 RM-1042 |
|||||||||
