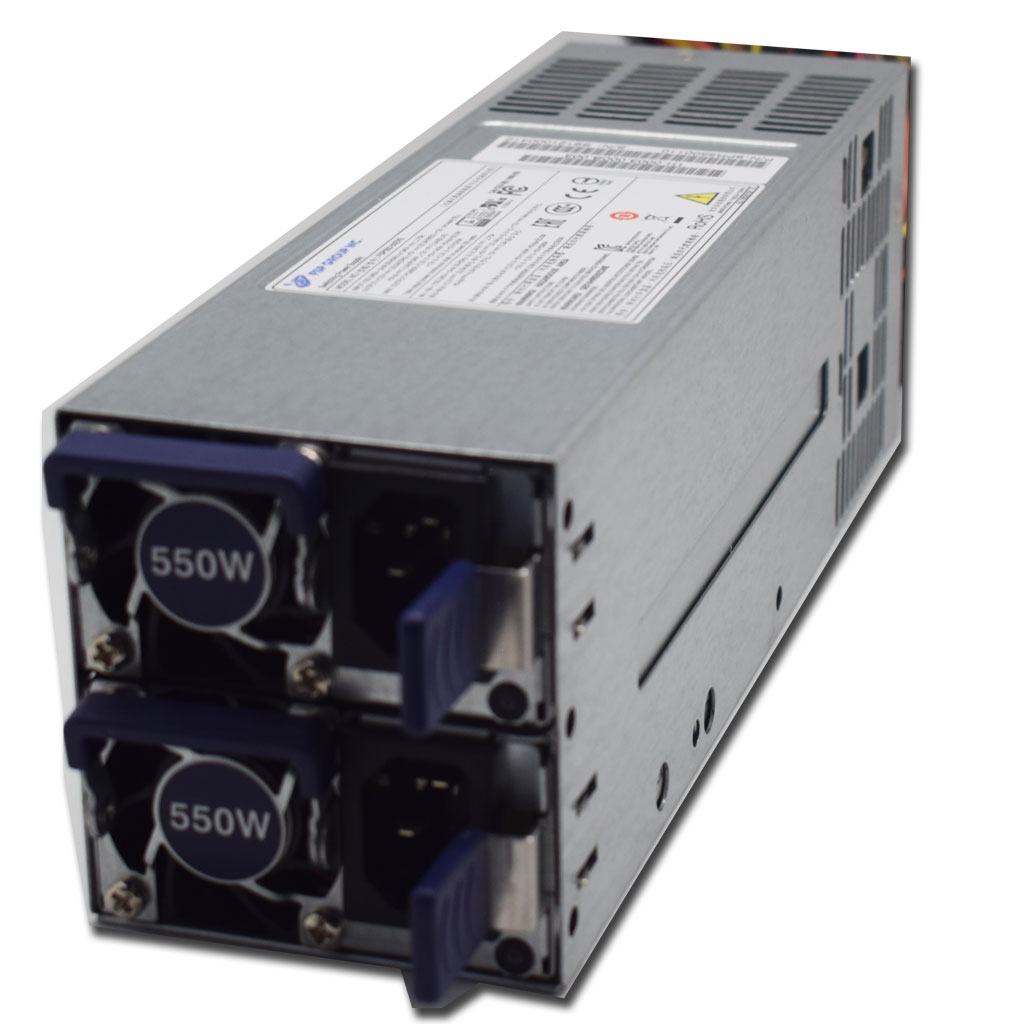

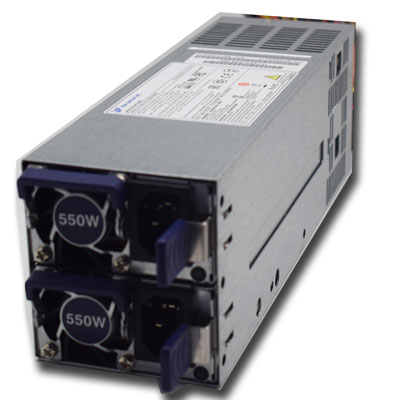

FSP550-50ERS - Server SMPS

Specification
Model Name	FSP550-50ERS
Size	2U CRPS 1+1
Input Voltage	100 - 240 V
Connectors	Mother Board Connector 24 Pins	-	1
	Core Voltage Connector 8 Pins	-	1
	PCI Express Connector 4+4 Pins	-	1
	PCI Express Connector 6+2 Pins	-	1
	PCI Express Connector 6 Pins	-	1
	SATA Power Connector	-	6
	4 Pin Power Connector	-	8
	FDD Power Connector	-	1
Ampere Rating	Voltage		Amperage
	+3.3 V	-	20.0A	Max. 140W
	+5 V	-	20.0A	Max. 140W
	+12 V	-	44.0A
	- 12 V	-	0.3A
	+5 VSB	-	4.0A
Total Output	500 W + 500 W
Compatible Chassis	SR-105 TW-115 RM-2003 RM-23608 RM-23612 RM-23524 RM-3001 RM-423
