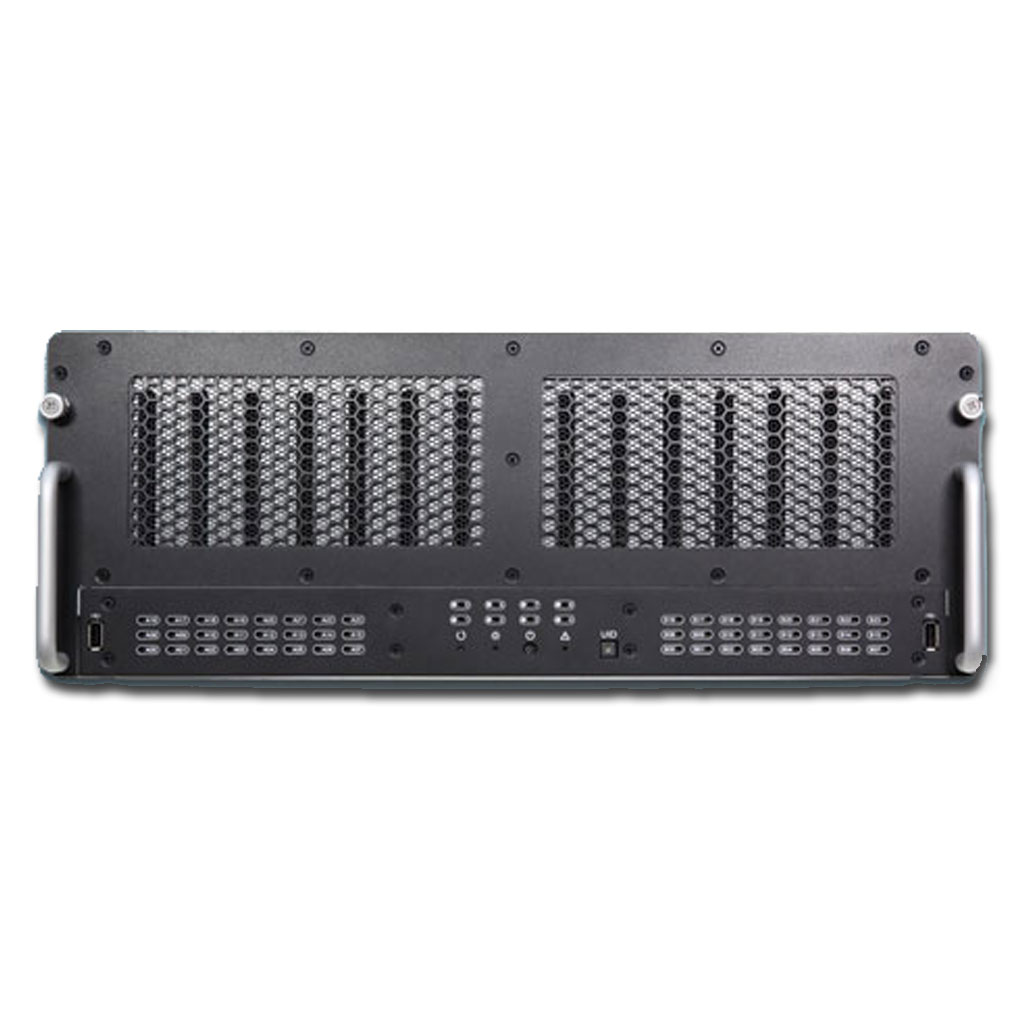

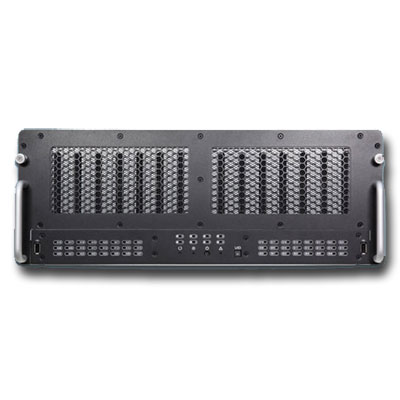

RM-43348

4U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-13304
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RMC2108-670-HS
RM-23608
RM-23608-12G
RM-23612
RM-23612-12G
RM-23524
RM-3001
RM-3003
RM-407
RM-4001
RM-4007
IC-610
RM-423
RM-4002
RM-4081
RM-42612E
RM-43812E
SpecificationPrevious Page
Model Name RM-43348
Type 4U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 13"
Dimension (D*W*H) 818 * 447 * 176 mm
Carton Size 1080 * 630 * 420 mm
Drive Bays 3.5" / 3.5" SAS / SATA Hot Swap
Int. 3.5"
2.5" SAS / SATA Hot Swap Rear Side		 48
  2
  2
Front I/O Ports 2 * USB 2.0
Backplane Connector Mini-SAS HD (SFF 8643) with 12G Expander Backplane
Indicators Power Status, 48 * HDD Activity, Fan Failure,
Overheat and PSU Failure
Cooling Fans Standard 4 * 8 cm (56mm) Turbo Hot Swap middle fans
RackMount Kit Standard
Color Black / Silver
Power Supply 1 + 1 Redundant, 1100W 80 Plus Gold
Net Weight 30 KG
