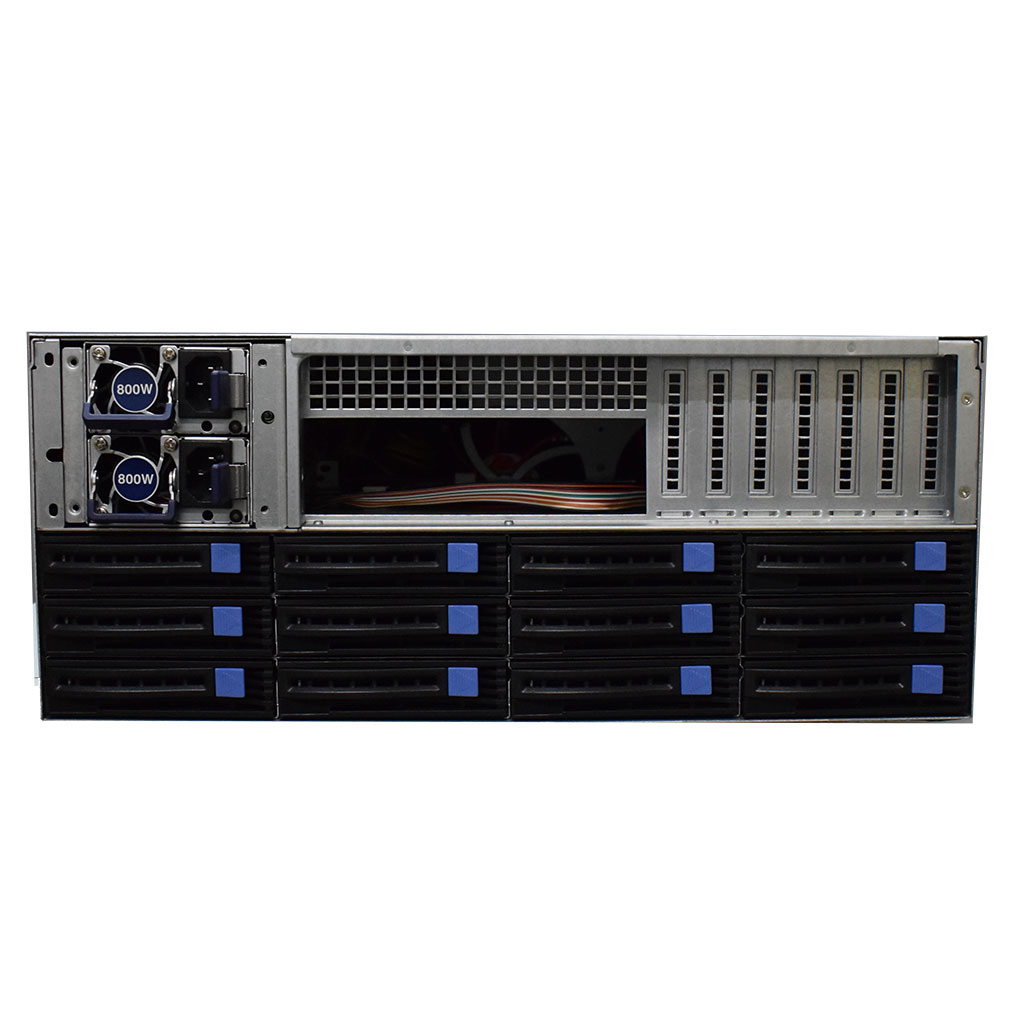

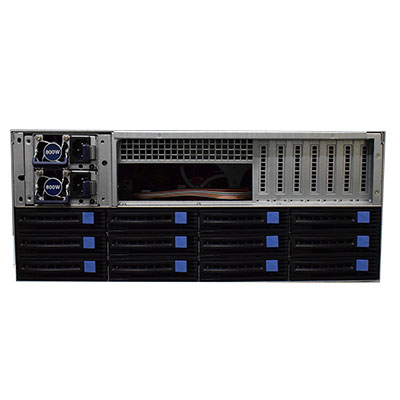

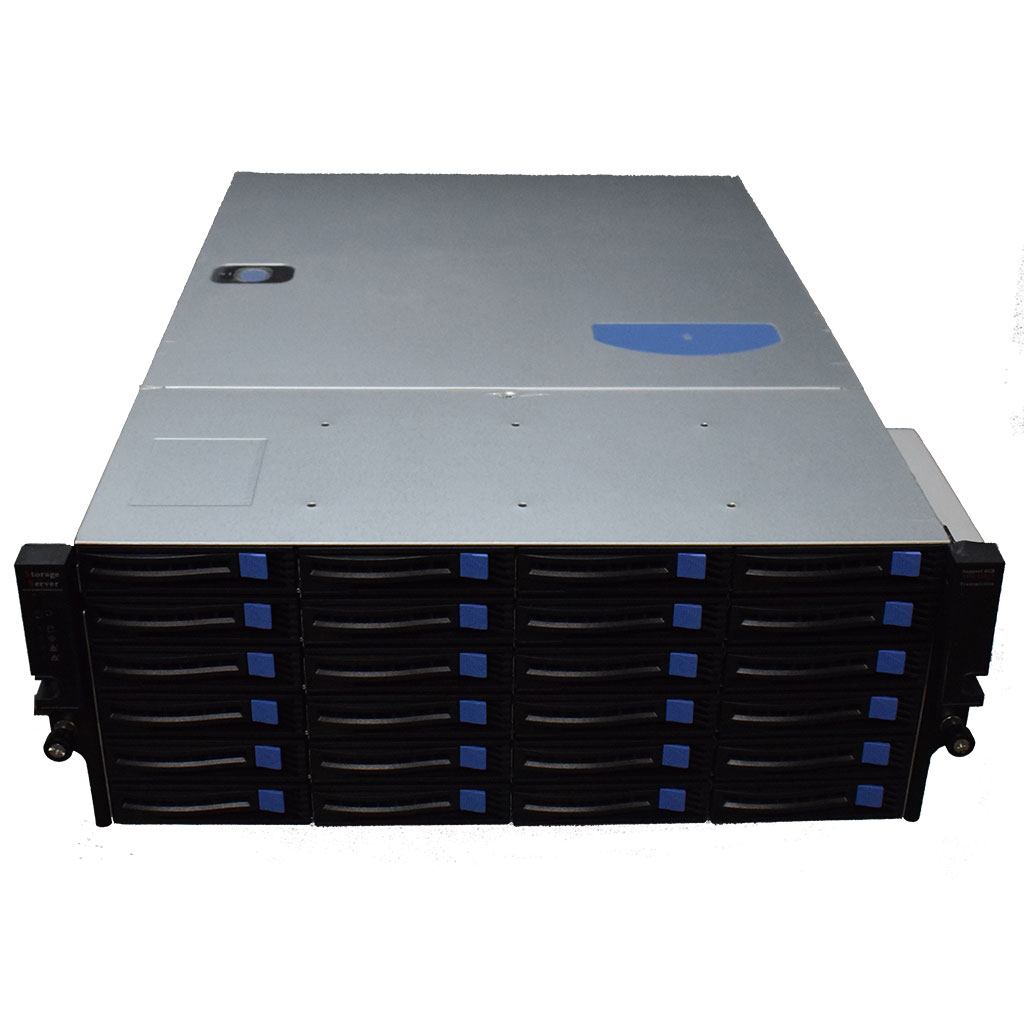

RM-43606E

4U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-140L
RM-115
RM-13304
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RMC2108-670-HS
RM-23608
RM-23608-12G
RM-23612
RM-23612-12G
RM-23524
RM-3001
RM-3003
RM-31606E
RM-31606N
RM-407
RM-4001
RM-4007
IC-610
RM-423
RM-4002
RM-4081
RM-413
RM-42612E
RM-43348
RM-43812E
SpecificationPrevious Page
Model Name RM-43606E
Type 4U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 13"
Dimension (D*W*H) 660 * 433 * 178 mm
Carton Size 885 * 600 * 325 mm
Drive Bays 2.5" / 3.5" SAS / SATA Hot Swap
2.5" / 3.5" SAS / SATA Hot Swap Rear Side
 24
12
Backplane Connector Mini-SAS (SFF 8087) with 6G Expander Backplane
Expansion Slots 7 Low Profile Slots
Front I/O Ports 2 * USB 2.0
Cooling Fans Standard 3 * 12 cm Hot Swap middle fan,
                 3 * 8 cm Hot Swap middle fan (for Rear HDD Bays)
RackMount Kit Standard
Color Black / Silver
Compatible SMPS FSP800-50ERS
FSP1200-50ERS
Net Weight 19 KG
