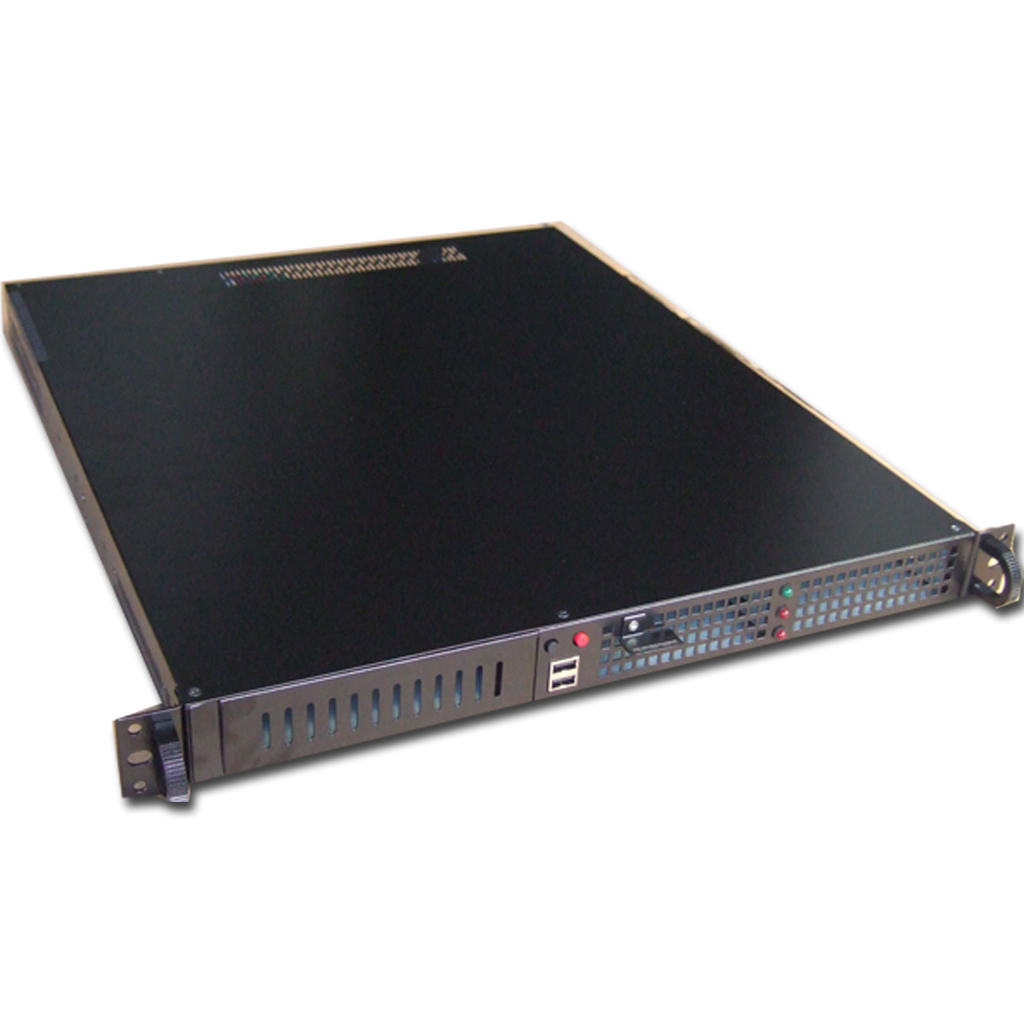

RM-140L

Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-115
RM-13304
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RMC2108-670-HS
RM-23608
RM-23608-12G
RM-23612
RM-23612-12G
RM-23524
RM-3001
RM-3003
RM-31606E
RM-31606N
RM-407
RM-4001
RM-4007
IC-610
RM-423
RM-4002
RM-4081
RM-413
RM-42612E
RM-43606E
RM-43348
RM-43812E
SpecificationPrevious Page
Model Name RM-140L
Type 1U Rack Mount
Mother Board Form Factor Ext. ATX 12" * 13"
Dimension (D*W*H) 660 * 425 * 44 mm
Carton Size (D*W*H) 760 * 562 * 157 mm
Drive Bays
Ext. 5.25"
Ext. 3.5"
Int. 3.5"		 Opt1
  2
  1
  0		 Opt2
  1
  1
  2
Cooling Fans 2 fans of 4 * 4 * 2 cm size
3 fans of 4 * 4 * 5.6 cm size
Front I/O Ports USB 2.0
Rackmount Kit Standard
Heat Sink Optional
Color Black
Compatible SMPS FSP250-50GUB
FSP250-50FEB
P1M-6400P
FSP400-701UH
Net Weight 5.7 KG
Compatible Riser Cards 1U Riser Cards
Special Features Lockable Front Door
