Specification Previous Page |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

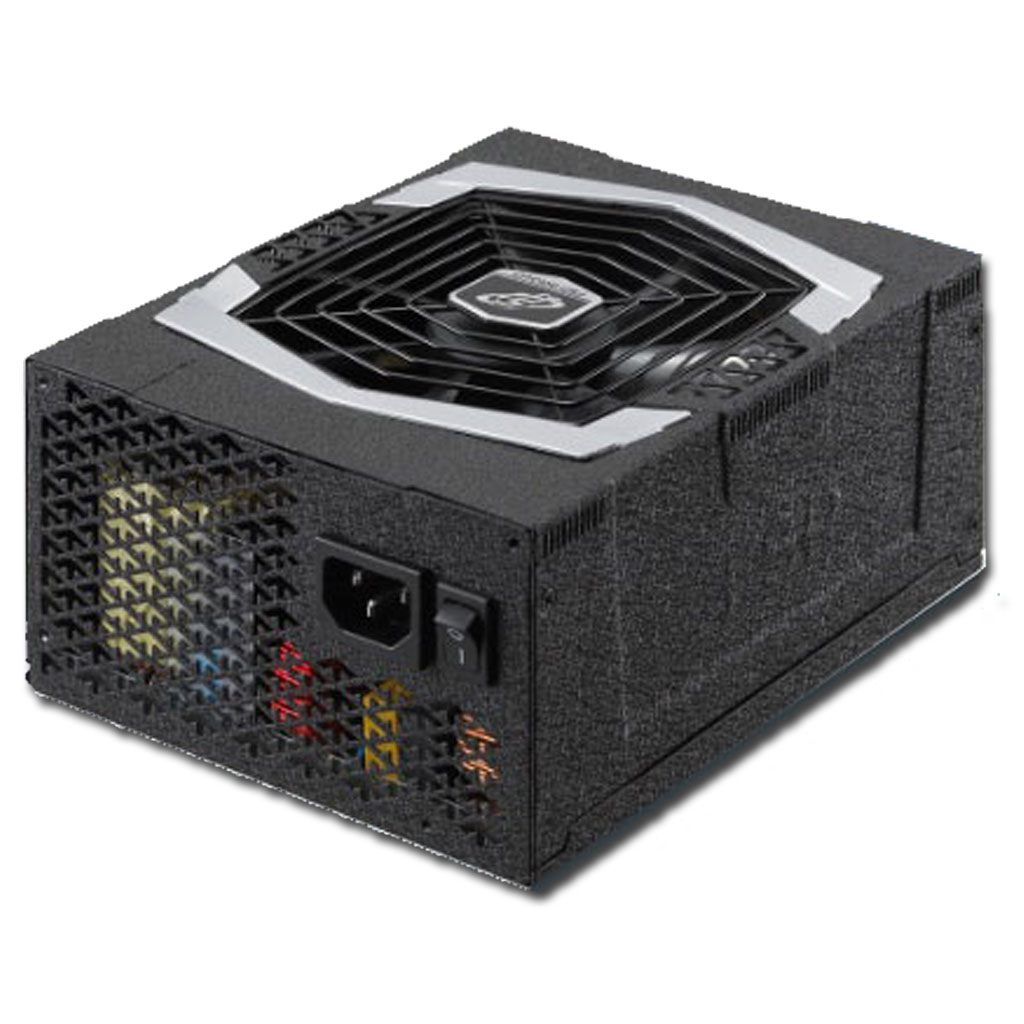

| Model Name | PT-1200FM | ||||||||||
| Size | PS2 Single | ||||||||||
| Input Voltage | 110 - 240 V AC | ||||||||||
| Connectors | Mother Board Connector 24 Pins |
- |
1 |
||||||||
| Core Voltage Connector 4+4 Pins | - | 2 | |||||||||
| PCI Express Connector 6+2 Pins | - | 8 | |||||||||
| SATA Power Connector | - | 13 | |||||||||
| 4 Pin Power Connector | - | 6 | |||||||||
| FDD Power Connector | - | 1 | |||||||||
| Ampere Rating | Voltage |
Amperage | |||||||||
| +3.3 V | - | 25.0A |  |
Max. 160W |
|||||||
| +5 V | - | 25.0A | |||||||||
| +12 V | - | 100.0A | |||||||||
| -12 V | - | 0.5A | |||||||||
| +5 VSB | - | 3.0A | |||||||||
| Total Output | 1200 W | ||||||||||
| Compatible Chassis | SR-105 SR-108 RM-4002 RM-423 |
||||||||||
