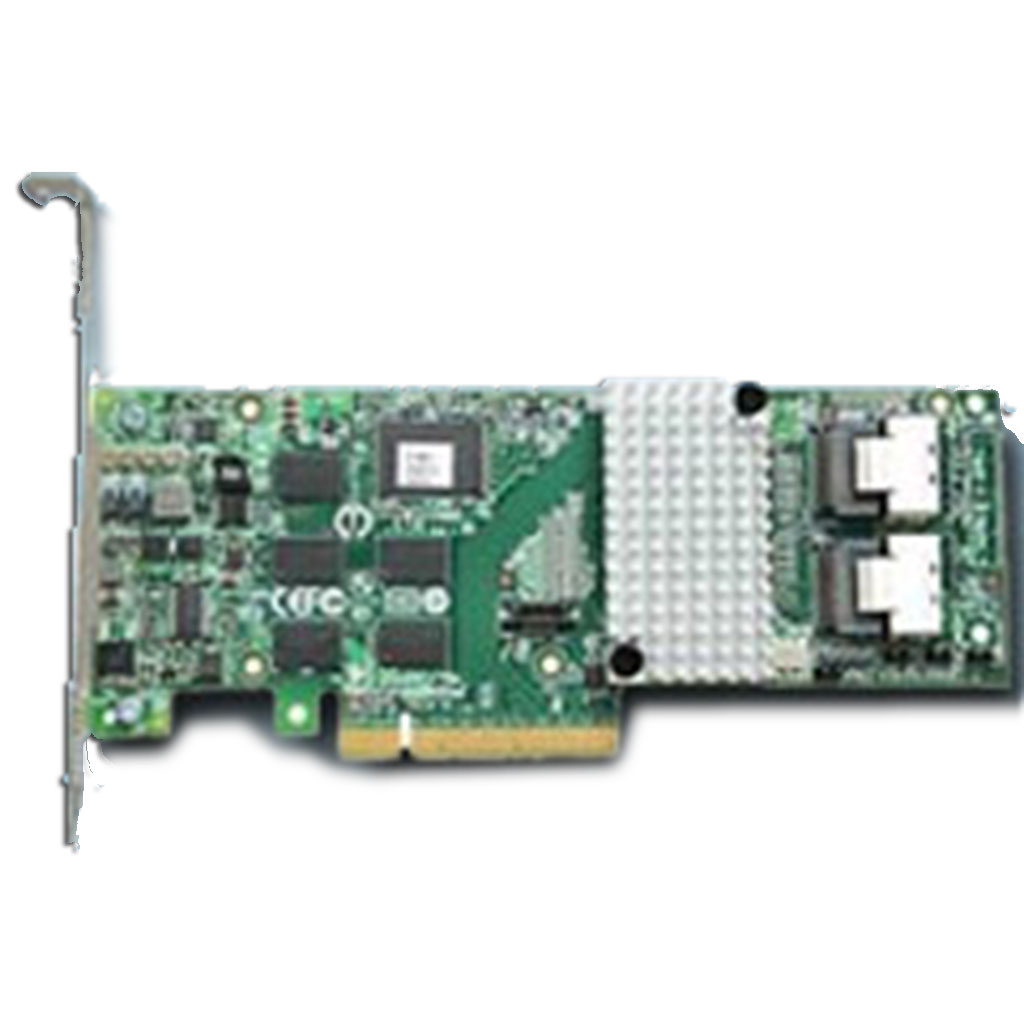

LSI9261-8i - Controller

Specification Previous Page
Features
Host Adapter Architecture		RAID Management Utilities
	PCI Express 2.0x8		Mega CLI (Command Line Interface)
	6 Gb/s 8 SAS/SATA HDD via 2*SFF-8087 Mini-SAS		Mega RAID Storage Manager
	RAID 0,1,5,6,10,50,60		Web BIOS
	512MB 800MHz DDR II SDRAM	Operating System Support
	Low Profile		Windows Server 2008, Windows 7,8,10 (32/64 bit)
Maintenance and Management Settings			Linux 1.0
	RAID Array Roaming	RAID Monitoring Tools
	Unplug/Remove RAID array		SMTP for email notification
	Hot key (ctrl-h) boot-up RAID manager via BIOS		SES-2 enclosure management (Failed, SMART (SHI))
	Firmware update while running the Operating System		Enclosure mnaagement support I2C
	Online Capacity Expansion (OCE)		Event Log
	Online RAID Level Migration	Package Contents
	Fast Initialization for quick array setup		Controller Card
	Automatic drive (insert / removal) detection		Low Profile Bracket, High Profile Bracket
	I/O Load Balancing
	Staggered Drive Spinup
	Rebuild Priority (Low - Highest)
	Spin Down Idle Mode
	Hot Swap and Hot plug
	S.M.A.R.T Support
	Multiple RAID array
	Multiple Logical Drive
	64bit LBA support greater than 2TB per volume
