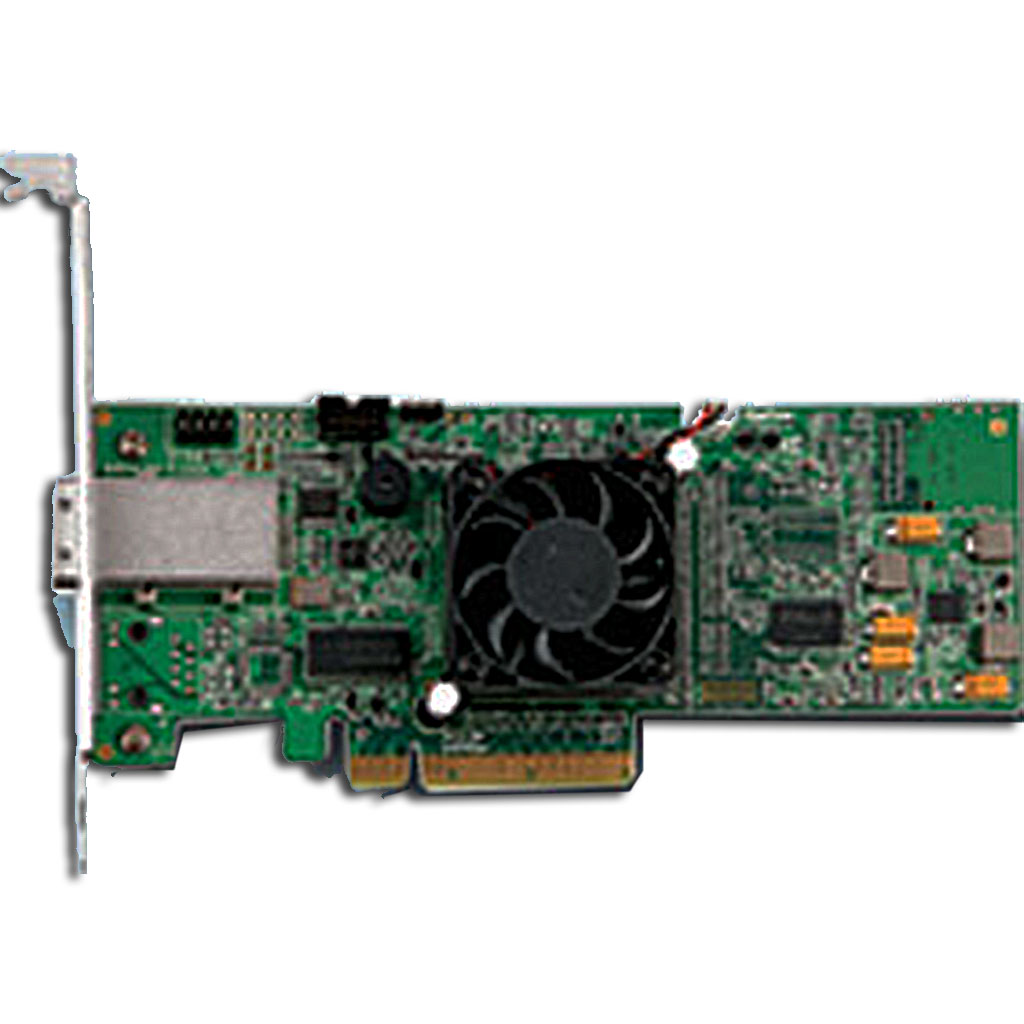

RR-4311 - Controller

Specification Previous Page
Features
Host Adapter Architecture		Operating System Support
	Intel IOP348 (800 MHz)		Microsoft Windows 2008/2003/XP/2000/X64 Edition/Vista 32 and 64 bit
	Upto 256 MB DDR-II Memory		Red Hat Enterprise Linux, Open SuSE, Fedora Core, Debian
	PCI-Express x8		Native Support in Linux kernel 2.6
	1 external mini-SAS/SATA Device connector		Mac OS X
	Upto 4 SAS/SATA Hard Drives 128 max hard drives via SAS expanders		FreeBSD
	NCQ (Native Command Queuing)		Linux Open Source
	NVRAMM	Package Contents
	Low Profile		RocketRAID 4311 Series SAS/SATA Hardware RAID Controller
	Optional Battery Backup Unit (BBU-03)		User's Guide
Advanced RAID Features			Software CD with Drivers and Manual
	Support RAID 0,1,3,5,6,10 and JBOD		Low Profile bracket
	Multiple RAID support	Operating Voltage
	BIOS booting support		PCI-e: 12 V 3.3V/Power: 12V - 15W
	Online Array roaming
	Automatic drive(insert/remove) detection
	Automatic RAID rebuild
	Quick Initialization
	Online Capacity Expansion / Online RAID Level Migration
	Hot Spare - (global)
	Configurable stripe size
	Staggered Drive Spin-up
	Bad sector repair and remapping to reduce dropped drives
Array Monitors, Alerts and Indicators
	Hard Drive LED Indicators (Activity and Failed)
	Email Notification
	SAF-TE chassis environment monitoring
RAID Management
	Web GUI management utility
	CLI (Command Line Interface)
	Firmware / BIOS Management
