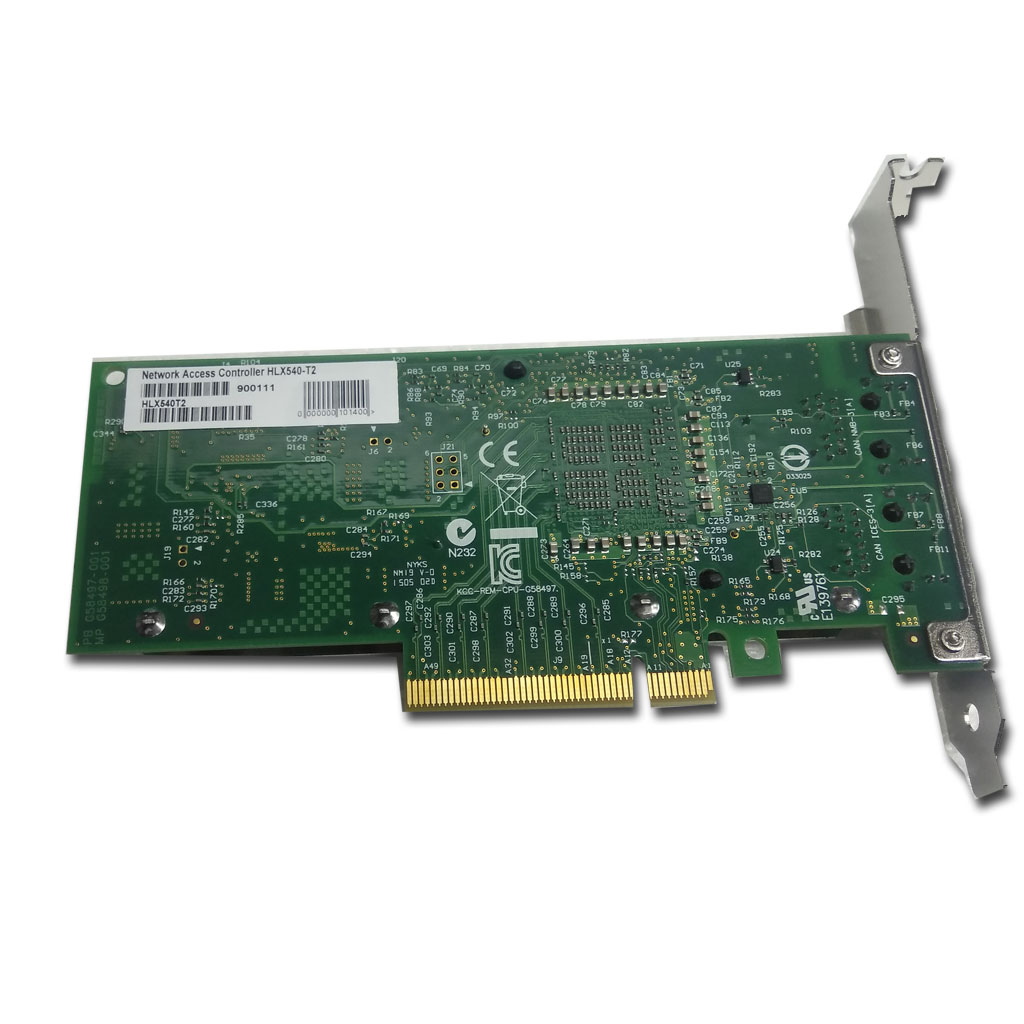

X540-T2 - Network Card

SpecificationNetwork Cards
General
	Model Name	Dual Port: X540T2	Hardware Features
	Connector	RJ45 Copper	Data rate(s) supported per port	100 Mbps, 1 Gbps, 10 Gbps
Network Management			Bus Type	PCI Express 2.1 (5.0 GT/s)
	Wired for Management (WfM) baseline v2.0 enabled for servers		Bus width	x8 lane PCI Express, operable in x8 and x16 slots
	DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP		Bus speed (x8, encoded rate)	20 Gbps uni-directional; 40 Gbps bi-directional
	Remote Installation Services (RIS)		Interrupt levels	INTA, MSI, MSI-X
	PXE 2.0 enabled through boot Read-Only Memory (ROM)		Hardware certifications	FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
Advanced Software Features			Controller-processor	Intel® Ethernet Controller X540
	Adapter Fault Tolerance (AFT)		Network Operating Systems (NOS) Software Support
	Switch Fault Tolerance (SFT)		Windows* 7 (IA32 and X64)
	Adaptive Load Balancing (ALB)		Windows Server* 2008 (x64 and IPF)
	Virtual Machine Load Balancing (VMLB)		Windows Server* 2008 Core (x64 and IPF)
	IEEE 802.3ad (link aggregation control protocol)		Windows Server* 2008 R2 (x64 and IPF)
	PCIe Hot Plug/Active Peripheral		Windows Server 2008 R2 Core (x64 and IPF)
	Component Interconnect (PCI)		Linux* SLES 11 SP1
	IEEE 802.1Q VLANs		Microsoft Windows Server 2003*
	IEEE 802.3 2005 flow control support		Microsoft Vista*
	Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities Transmission control protocol (TCP), User Datagram Protocol (UDP), Internet Protocol (IP))		SUSE* SLES 10* or later, Professional 9.2 or later
			Microsoft Windows Virtual Server* 2005*
	Teaming support		Red Hat Enterprise* 4* or later
	IEEE 802.1p		FreeBSD* 5.x or later support
	TCP segmentation/large send offload		VMware* ESX 4.0/4.1, ESXi 5.0 support
	MSI -X: Multiple Independent Queues		Fedora*
	Interrupt moderation		EFI* 1.1
	IPv6 offloading
