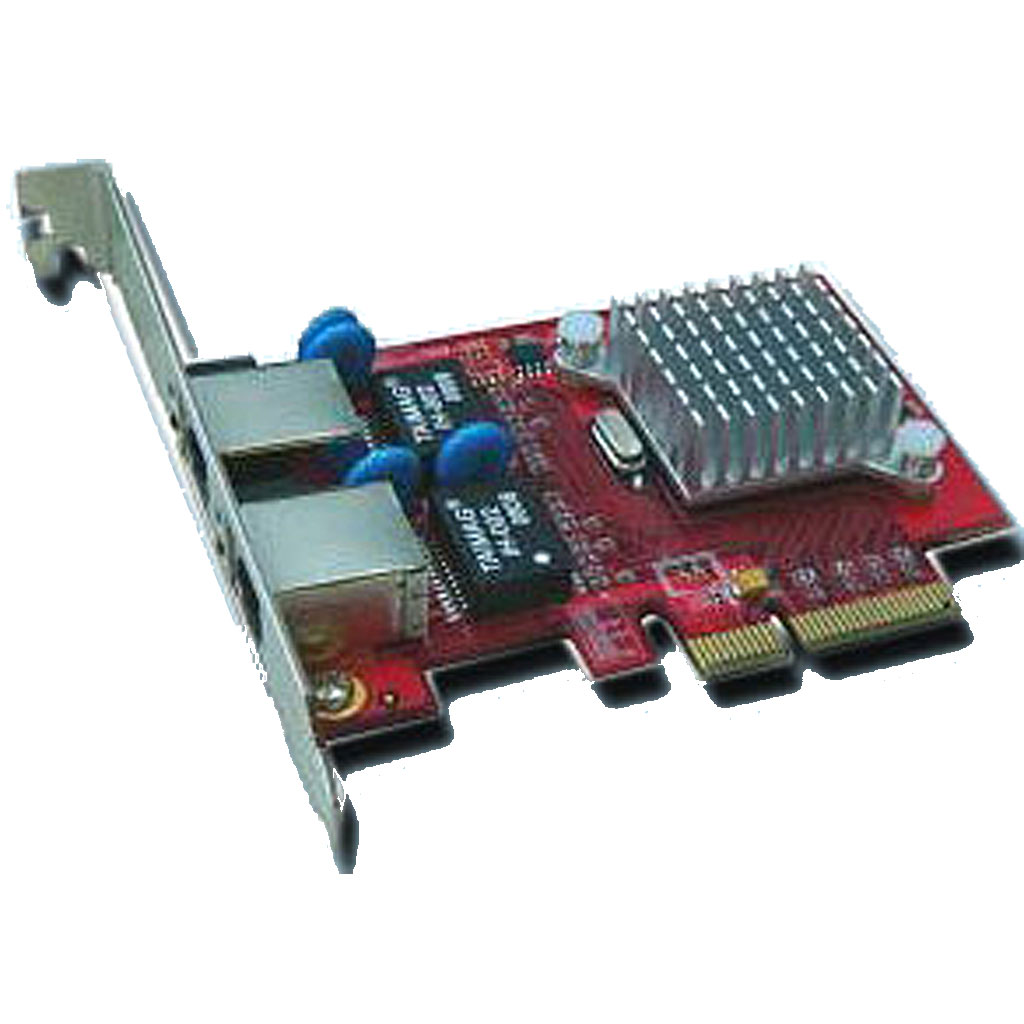

NW-03PS - Network Card

SpecificationNetwork Cards
Features
	RSS Hash Calculation and QoS (IEEE 802.1p) support for client and server application
	Complaint with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u(100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)		Operating System Support
	Complaint with PCI Express Specification, revision 1.0a		Supports Max OS X, Windows XP, 2000, 2003, Linux
	4-lane 10 Gbps PCI Express host interface	Package Contents
	Supports Ethernet 10Mbps (half-duplex), Ethernet 20Mbps (full-duplex), Fast Ethernet 100Mbps(half-duplex), Fast Ethernet 200Mbps (full-duplex), Gigabit 1000Mbps (full-duplex) and Gigabit 2000Mbps (full-duplex)		Card with 2 Brackets (Low Profile and regular PCI Brackets)
	RJ-45 Port offer high speedd transmission over CAT 5 UTP cable
	Configurable 96 KB deep buffer for each link
	Jumbo Frame Buffer
	Automatic MDI / MDIX Crossover at all speeds
	IP, TCP, UDP Checksum Offload and TCP segmentation offload / large-send support
	Supports Full Duplex flow control (IEEE 802.3x)
	Supports IEEE802.1Q VLAN insertion and removal
	Descriptor Bursting and caching
	Interrupt Moderation
	SMBus V2.0 complaint
	Fully RoHS complaint
	Supports both full height and Low Profile rear window
	2 LEDs per port to indicate various network activities
